Controller Battery Charger

 (solar, wind, hydro control charger)

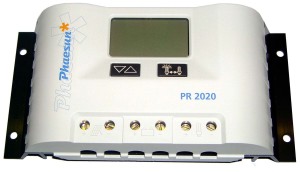

1. Series PRxxxx

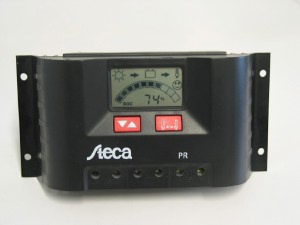

Modified PWM charging series regulator with electronic fuse and manual load switch. The LED display shows the charging by a solar module, the state of charge of the battery in three colors. Big terminals ensure an easy installation.

  >>>back to top

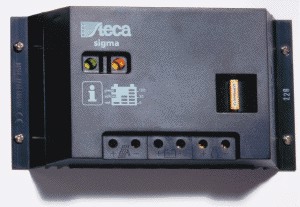

High performance micro controlled "low cost" charge controller with integrated deep discharge and over voltage protection, LED-state of charge display, temperature compensated overcharge protection by integrated sensor and battery charge according to IU-characteristic line.

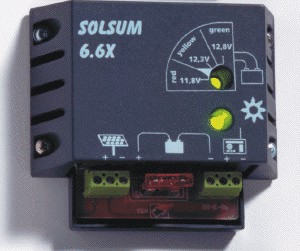

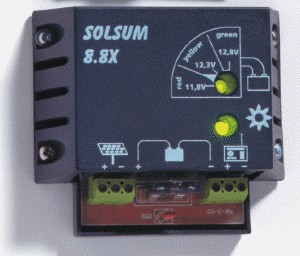

High performance micro controlled "low cost" charge controllers Solsum 6.6X and 8.8X with integrated total discharge warning (no deep discharge protection).



	Product Code	LPC00006
	Model	Solsum 8.8C
	Nominal Voltage (V)	12/24
	Load Current (A)	8
	Self Consumption (mA)	4
	Dimension (mm)	130x88x39
	Weight (Kg)	0,165
	Protection Class	IP22

3. Series Solarix

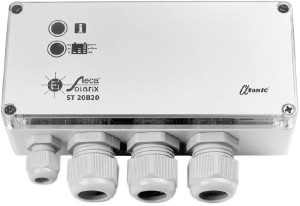

High performance micro controlled charge controller, apart from the base functions deep discharge and over voltage protection, this charge controller range offers a multitude of comfortable additional functions as e.g. LC-display, temperature compensation, exact state of charge (SOC) display, compensation of voltage drop between battery and charge controller, hard and software fuse, automatic voltage adjustment (12/24V), etc.

  >>>back to top

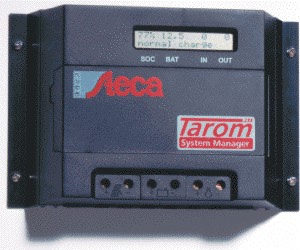

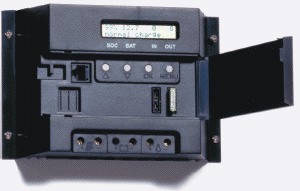

The presently leading charge controller product range referring to equipment and performance. Apart from the basic functions of an ordinary solar charge controller (deep discharge and over load protection), this product range offers countless possibilities related to programmability, data processing, system configuration, unit-by-unit expansibility and performance. In addition to a lot of characteristics, a two lined LC-display, integrated data logger, PC connection, programmable operating points, exact state of charge (SOC) display, Ah counter and a lot more can be mentioned.

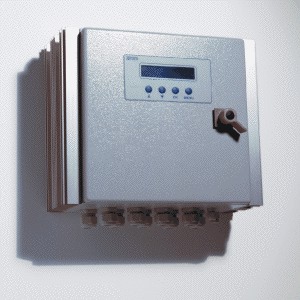

All technical data and features as with the above mentioned Tarom product group, but for considerably higher capacities IP 65 protection (splash water protection) for the outdoor assembly.

8. Series Phaesun

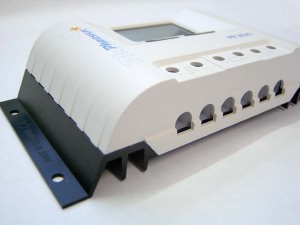

Phaesun Solar Charge Controllers with Graphical LCD - The most important difference to comparable products is a big graphical display. This shows all system information in a self explanatory manner with logical informative symbols. The integrated central processing unit called Atonic provides a charge controller with new functions. This type of controller is more than a protective device for a battery. It contains a self-learning algorithm, which gives detailed information on the battery’s state of charge ( SOC ). This optimized state of charge algorithm is more precise than ever and is displayed similar to a fuel gauge. It adjusts itself to the battery’s age and capacity. The SOC provides a basis for all control and regulatory functions. This new type of hybrid charge controller is much more efficient than conventional series and shunt controllers. Furthermore the controller is equipped with an electronic fuse with superior protection to a mechanical fuse. This offers more comfort and reliability to the user as it reconnects automatically. In addition a manual load switch is integrated.
