| Invertoare
FRARON - DC/AC |
|
|
|
|
|
|
|
Invertors
with modified sinwave |
|
|
|
Click
Aici ! >>>> Invertors with pure sinwave
|
|
|
|
Those
sinus inverters are produced by FRARON - GERMANY company,
and are the best offer, to be used with alternative energy
systems.
|
| |
| 1.
Series inverters at 12V & 24V |
| invertoare
ieftine la pret redus de 150W |
|
  |
| Cod
Produs |
Model |
Putere
(W) |
Tensiune
Nominala |

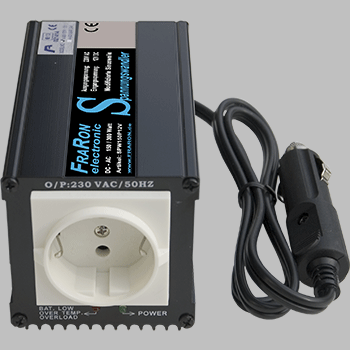

| LPI00135 |

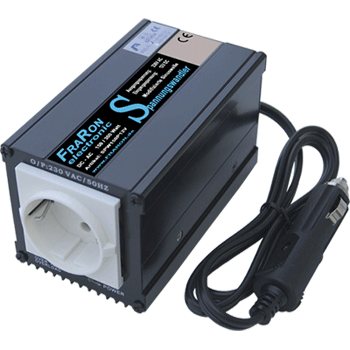

FR
150-12 |
150 |
12 |
| LPI00145 |
FR
150-24 |
150 |
24 |
|
|
|
|
| Model |
Electrical
Specifications General |
| Putere
Iesire (continu) |
150
W |
Temperatura
admisa |
0°C to 40°C |
| Putere
maxima (de urgenta) |
450 W |
AC
receptacle |
Schuko |
| Tensiune
Iesire |
230 VAC +/-
5% |
Display |
Power ON
& Fault LEDs |
| Frecventa |
50 +/- 3Hz |
Siguranta
interna |
Not user
replaceable |
| Forma
de unda |
Modified
Sine wave |
Dimensiuni
(HxWxL) |
72x72x135 |
| Eficienta
Maxima |
90% |
Greutate |
0,6 Kg |
| Curent
max fara sarcina |
0,36 A |
Certificari |
CE, EMC |
| Tensiune
de intrare min-max |
10-16 DC
(20-32 DC) |
Garantie |
2 ani |
|
|
>>>back to
top
|
|
|
|
|
  |
| Cod
Produs |
Model |
Putere
(W) |
Tensiune
Nominala |

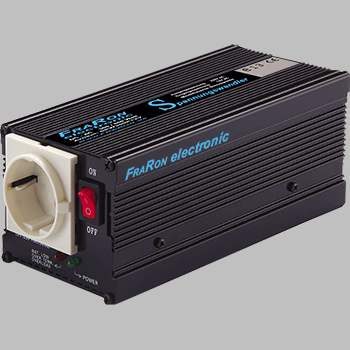

| LPI00136 |
FR
300-12 |
300 |
12 |
| LPI00146 |
FR
300-24 |
300 |
24 |
|
|
|
|
| Model |
Electrical
Specifications General |
| Putere
Iesire (continu) |
300
W |
Temperatura
admisa |
0°C to 40°C |
| Putere
maxima (de urgenta) |
600 W |
AC
receptacle |
Schuko |
| Tensiune
Iesire |
230 VAC +/-
5% |
Display |
Power ON
& Fault LEDs |
| Frecventa |
50 +/- 3Hz |
Siguranta
interna |
Not user
replaceable |
| Forma
de unda |
Modified
Sine wave |
Dimensiuni
(HxWxL) |
75x90x163 |
| Eficienta
Maxima |
90% |
Greutate |
0,9 Kg |
| Curent
max fara sarcina |
0,36 A |
Certificari |
CE, EMC |
| Tensiune
de intrare min-max |
10-16 DC |
Garantie |
2 ani |
|
|
>>>back to
top
|
|
|
|
|
  |
| Cod
Produs |
Model |
Putere
(W) |
Tensiune
Nominala |

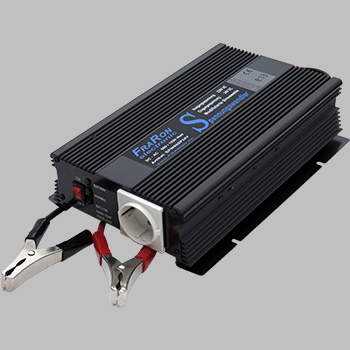

| LPI00137 |

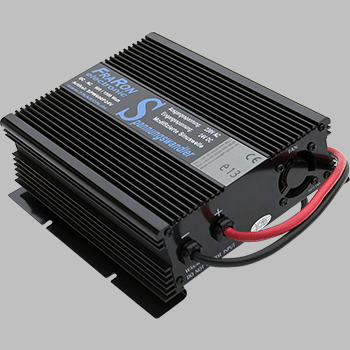

FR
600-12 |
600 |
12 |
| LPI00147 |
FR
600-24 |
600 |
24 |
|
|
|
|
| Model |
Electrical
Specifications General |
| Putere
Iesire (continu) |
600
W |
Temperatura
admisa |
0°C to 40°C |
| Putere
maxima (de urgenta) |
1500 W |
AC
receptacle |
Schuko |
| Tensiune
Iesire |
230 VAC +/-
5% |
Display |
Power ON
& Fault LEDs |
| Frecventa |
50 +/- 3Hz |
Siguranta
interna |
Not user
replaceable |
| Forma
de unda |
Modified
Sine wave |
Dimensiuni
(HxWxL) |
65x173x240 |
| Eficienta
Maxima |
90% |
Greutate |
2,1 Kg |
| Curent
max fara sarcina |
0,6 A |
Certificari |
CE, EMC |
| Tensiune
de intrare min-max |
10-16 DC |
Garantie |
2 ani |
|
|
>>>back to
top
|
|
|
|
|
|
| Cod
Produs |
Model |
Putere
(W) |
Tensiune
Nominala |
| LPI00138 |
FR
600-12i |
600 |
12 |
| LPI00148 |
FR
600-24i |
600 |
24 |
| -
invertorul contine regulator de incarcare pentru acumulatori cu
Gel si acid |
| Model |
Electrical
Specifications General |
| Putere
Iesire (continu) |
600
W |
Temperatura
admisa |
0°C to 40°C |
| Putere
maxima (de urgenta) |
600 W |
AC
receptacle |
Schuko |
| Tensiune
Iesire |
230 VAC +/-
5% |
Display |
Power ON
& Fault LEDs |
| Frecventa |
50 +/- 3Hz |
Siguranta
interna |
Not user
replaceable |
| Forma
de unda |
Modified
Sine wave |
Dimensiuni
(HxWxL) |
65x173x295 |
| Eficienta
Maxima |
90% |
Greutate |
2,9 Kg |
| Curent
max fara sarcina |
0,5 A |
Certificari |
CE, EMC |
| Tensiune
de intrare min-max |
10-16 DC |
Garantie |
2 ani |
|
|
>>>back to
top
|
|
|
|
|
 |
| Cod
Produs |
Model |
Putere
(W) |
Tensiune
Nominala |

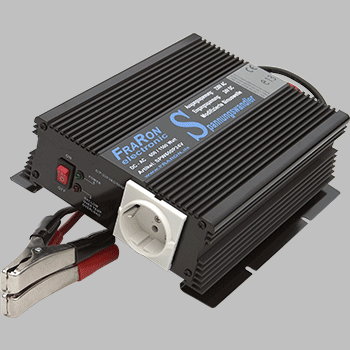

| LPI00139 |
FR
800-12 |
800 |
12 |
| LPI00149 |
FR
800-24 |
800 |
24 |
|
|
|
|
| Model |
Electrical
Specifications General |
| Putere
Iesire (continu) |
800
W (30 min - 900W) |
Temperatura
admisa |
0°C to 40°C |
| Putere
maxima (de urgenta) |
1500 W |
AC
receptacle |
Schuko |
| Tensiune
Iesire |
230 VAC +/-
5% |
Display |
Power ON
& Fault LEDs |
| Frecventa |
50 +/- 3Hz |
Siguranta
interna |
Not user
replaceable |
| Forma
de unda |
Modified
Sine wave |
Dimensiuni
(HxWxL) |
65x173x280 |
| Eficienta
Maxima |
90% |
Greutate |
2,6 Kg |
| Curent
max fara sarcina |
0,6 A |
Certificari |
CE, EMC |
| Tensiune
de intrare min-max |
10-16 DC |
Garantie |
2 ani |
|
|
>>>back to
top
|
|
|
|
  |
| Cod
Produs |
Model |
Putere
(W) |
Tensiune
Nominala |
| LPI00140 |

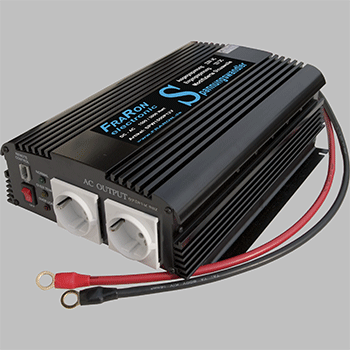

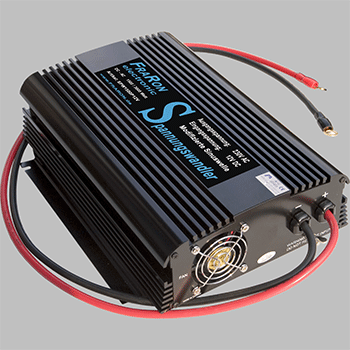

FR
1000-12 |
1000 |
12 |
| LPI00150 |
FR
1000-24 |
1000 |
24 |
|
|
|
|
| Model |
Electrical
Specifications General |
| Putere
Iesire (continu) |
1000
W (30min. - 1200W) |
Temperatura
admisa |
0°C to 40°C |
| Putere
maxima (de urgenta) |
2000 W |
AC
receptacle |
Schuko |
| Tensiune
Iesire |
230 VAC +/-
5% |
Display |
Power ON
& Fault LEDs |
| Frecventa |
50 +/- 3Hz |
Siguranta
interna |
Not user
replaceable |
| Forma
de unda |
Modified
Sine wave |
Dimensiuni
(HxWxL) |
85x210x310 |
| Eficienta
Maxima |
90% |
Greutate |
3,3 Kg |
| Curent
max fara sarcina |
0,4 A |
Certificari |
CE, EMC |
| Tensiune
de intrare min-max |
10-16 DC |
Garantie |
2 ani |
|
|
>>>back to
top
|
|
|
|
|
|
|
| Cod
Produs |
Model |
Putere
(W) |
Tensiune
Nominala |
| LPI00141 |
FR
1200-12 |
1200 |
12 |
| LPI00151 |
FR
1200-24 |
1200 |
24 |
|
|
|
|
| Model |
Electrical
Specifications General |
| Putere
Iesire (continu) |
1200
W (30 min . -1500W) |
Temperatura
admisa |
0°C to 40°C |
| Putere
maxima (de urgenta) |
2400 W |
AC
receptacle |
Schuko |
| Tensiune
Iesire |
230 VAC +/-
5% |
Display |
Power ON
& Fault LEDs |
| Frecventa |
50 +/- 3Hz |
Siguranta
interna |
Not user
replaceable |
| Forma
de unda |
Modified
Sine wave |
Dimensiuni
(HxWxL) |
85x210x310 |
| Eficienta
Maxima |
90% |
Greutate |
3,9 Kg |
| Curent
max fara sarcina |
0,4 A |
Certificari |
CE, EMC |
| Tensiune
de intrare min-max |
10-16 DC |
Garantie |
2 ani |
|
|
>>>back to
top
|
|
|
|
|
|
| Cod
Produs |
Model |
Putere
(W) |
Tensiune
Nominala |
| LPI00142 |
FR
1500-12 |
1500 |
12 |
| LPI00152 |
FR
1500-24 |
1500 |
24 |
|
|
|
|
| Model |
Electrical
Specifications General |
| Putere
Iesire (continu) |
1500
W (30min. - 1700W) |
Temperatura
admisa |
0°C to 40°C |
| Putere
maxima (de urgenta) |
3000 W |
AC
receptacle |
Schuko |
| Tensiune
Iesire |
230 VAC +/-
5% |
Display |
Power ON
& Fault LEDs |
| Frecventa |
50 +/- 3Hz |
Siguranta
interna |
Not user
replaceable |
| Forma
de unda |
Modified
Sine wave |
Dimensiuni
(HxWxL) |
85x210x455 |
| Eficienta
Maxima |
90% |
Greutate |
5,5 Kg |
| Curent
max fara sarcina |
0,4 A |
Certificari |
CE, EMC |
| Tensiune
de intrare min-max |
10-16 DC |
Garantie |
2 ani |
|
|
>>>back to
top
|
|
|
|
|
  |
| Cod
Produs |
Model |
Putere
(W) |
Tensiune
Nominala |

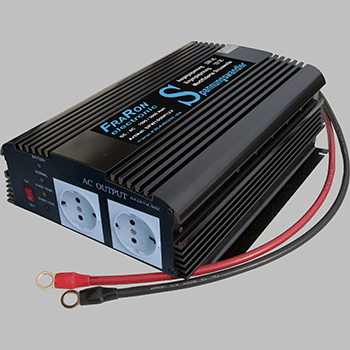

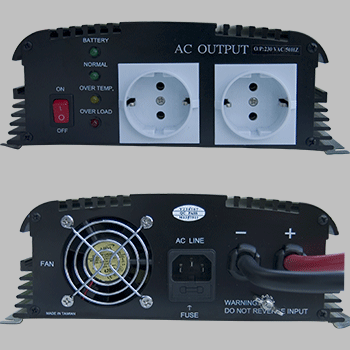

| LPI00143 |
FR
1700-12i |
1700 |
12 |
| LPI00153 |
FR
1700-24i |
1700 |
24 |
| -
invertorul contine regulator de incarcare pentru acumulatori cu
Gel si Acid |
| Model |
Electrical
Specifications General |
| Putere
Iesire (continu) |
1700
W |
Temperatura
admisa |
0°C to 40°C |
| Putere
maxima (de urgenta) |
3500 W |
AC
receptacle |
Schuko |
| Tensiune
Iesire |
230 VAC +/-
5% |
Display |
Power ON
& Fault LEDs |
| Frecventa |
50 +/- 3Hz |
Siguranta
interna |
Not user
replaceable |
| Forma
de unda |
Modified
Sine wave |
Dimensiuni
(HxWxL) |
85x210x550 |
| Eficienta
Maxima |
90% |
Greutate |
6,5 Kg |
| Curent
max fara sarcina |
0,55 A |
Certificari |
CE, EMC |
| Tensiune
de intrare min-max |
10-16 DC |
Garantie |
2 ani |
|
|
>>>back to
top
|
|
|
|
|
  |
| Cod
Produs |
Model |
Putere
(W) |
Tensiune
Nominala |

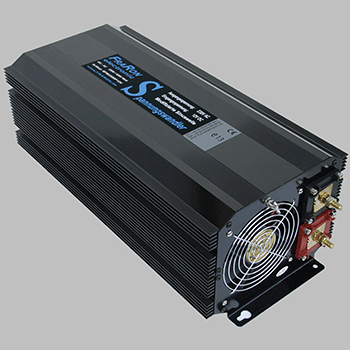

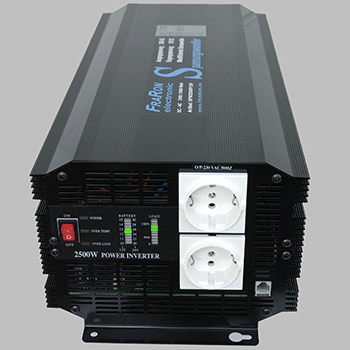

| LPI00144 |
FR
2500-12 |
2500 |
12 |
| LPI00154 |
FR
2500-24 |
2500 |
24 |
|
|
|
|
| Model |
Electrical
Specifications General |
| Putere
Iesire (continu) |
2500
W |
Temperatura
admisa |
0°C to 40°C |
| Putere
maxima (de urgenta) |
5000 W |
AC
receptacle |
Schuko |
| Tensiune
Iesire |
230 VAC +/-
5% |
Display |
Power ON
& Fault LEDs |
| Frecventa |
50 +/- 3Hz |
Siguranta
interna |
Not user
replaceable |
| Forma
de unda |
Modified
Sine wave |
Dimensiuni
(HxWxL) |
159x210x430 |
| Eficienta
Maxima |
90% |
Greutate |
8,7 Kg |
| Curent
max fara sarcina |
0,6 A |
Certificari |
CE, EMC |
| Tensiune
de intrare min-max |
10-16 DC |
Garantie |
2 ani |
|
|
>>>back to
top
|
|
|
|
|
| |
| >>>back to top |
