| Inverters
FRARON - DC/AC |
|
|
|
|
|
|
|
Inverters
with sinus pure wave |
|
|
|
Click
Here ! >>>> Inverters with sinus modified wave
|
|
|
|
Those
sinus inverters are produced by FRARON - GERMANY company,
and are the best offer, to be used with alternative energy
systems.
|
| |
| 1.
Series invertors at 12V & 24V |
| invertoare
ieftine la pret redus de 150W |
  |
| Cod
Produs |
Model |
Putere
(W) |
Tensiune
Nominala |
| LPI00155 |

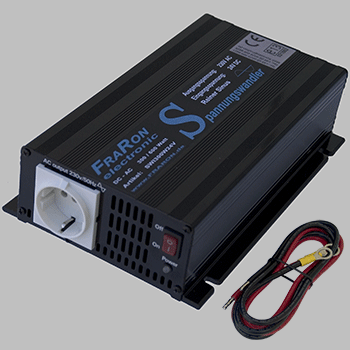

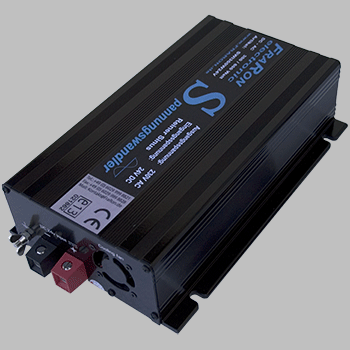

FR
300-12PS |
300 |
12 |
| LPI00161 |
FR
300-24PS |
300 |
24 |
|
| Model |
Electrical
Specifications General |
| Putere
Iesire (continu) |
300
W |
Temperatura
admisa |
0°C
to 40°C |
| Putere
maxima (de urgenta) |
600
W |
AC
receptacle |
Schuko |
| Tensiune
Iesire |
230
VAC +/- 5% |
Display |
Power
ON & Fault LEDs |
| Frecventa |
50
+/- 3Hz |
Siguranta
interna |
Not
user replaceable |
| Forma
de unda |
Pure
Sinus |
Dimensiuni
(HxWxL) |
68x170x260 |
| Eficienta
Maxima |
90% |
Greutate |
2,25
Kg |
| Curent
max fara sarcina |
0,6
A |
Certificari |
CE,
EMC |
| Tensiune
de intrare min-max |
10-16
DC (20-32 DC) |
Garantie |
2
ani |
|
|
>>>back to
top
|
|
|
|
  |
| Cod
Produs |
Model |
Putere
(W) |
Tensiune
Nominala |

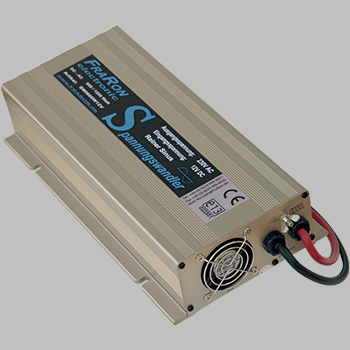

| LPI00156 |
FR
600-12PS |
600 |
12 |
| LPI00162 |
FR
600-24PS |
600 |
24 |
|
|
|
|
| Model |
Electrical
Specifications General |
| Putere
Iesire (continu) |
600
W |
Temperatura
admisa |
0°C to 40°C |
| Putere
maxima (de urgenta) |
1200 W |
AC
receptacle |
Schuko |
| Tensiune
Iesire |
230 VAC +/-
5% |
Display |
Power ON
& Fault LEDs |
| Frecventa |
50 +/- 3Hz |
Siguranta
interna |
Not user
replaceable |
| Forma
de unda |
Pure Sinus |
Dimensiuni
(HxWxL) |
70x170x330 |
| Eficienta
Maxima |
90% |
Greutate |
3,6 Kg |
| Curent
max fara sarcina |
0,55 A |
Certificari |
CE, EMC |
| Tensiune
de intrare min-max |
10-16 DC
(20-32 DC) |
Garantie |
2 ani |
|
|
>>>back to
top
|
|
|
|
  |
| Cod
Produs |
Model |
Putere
(W) |
Tensiune
Nominala |
| LPI00157 |

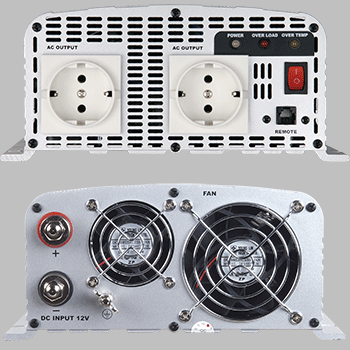

FR
1000-12PS |
1000 |
12 |
| LPI00163 |
FR
1000-24PS |
1000 |
24 |
| |
|
|
|
| Model |
Electrical
Specifications General |
| Putere
Iesire (continu) |
1000
W |
Temperatura
admisa |
0°C
to 40°C |
| Putere
maxima (de urgenta) |
2000
W |
AC
receptacle |
Schuko |
| Tensiune
Iesire |
230
VAC +/- 5% |
Display |
Power
ON & Fault LEDs |
| Frecventa |
50
+/- 3Hz |
Siguranta
interna |
Not
user replaceable |
| Forma
de unda |
Pure
Sinus |
Dimensiuni
(HxWxL) |
103x223x390 |
| Eficienta
Maxima |
90% |
Greutate |
5
Kg |
| Curent
max fara sarcina |
0,8
A |
Certificari |
CE,
EMC |
| Tensiune
de intrare min-max |
10-16
DC (20-32 DC) |
Garantie |
2
ani |
|
|
>>>back to
top
|
|
|
|
  |
| Cod
Produs |
Model |
Putere
(W) |
Tensiune
Nominala |

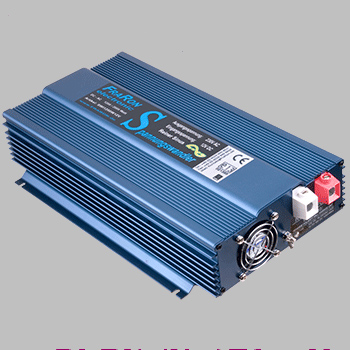

| LPI00158 |

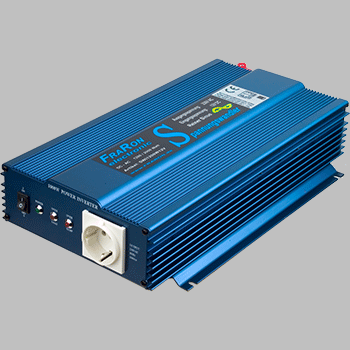

FR
1200-12PS |
1200 |
12 |
| LPI00164 |
FR
1200-24PS |
1200 |
24 |
|
|
|
|
| Model |
Electrical
Specifications General |
| Putere
Iesire (continu) |
1000
W (max. 15 min - 1200W) |
Temperatura
admisa |
0°C to 40°C |
| Putere
maxima (de urgenta) |
2000 W |
AC
receptacle |
Schuko |
| Tensiune
Iesire |
230 VAC +/-
5% |
Display |
Power ON
& Fault LEDs |
| Frecventa |
50 +/- 3Hz |
Siguranta
interna |
Not user
replaceable |
| Forma
de unda |
Pure Sinus |
Dimensiuni
(HxWxL) |
83x236x395 |
| Eficienta
Maxima |
90% |
Greutate |
4,6 Kg |
| Curent
max fara sarcina |
1 A |
Certificari |
CE, EMC |
| Tensiune
de intrare min-max |
10-16 DC
(20-32 DC) |
Garantie |
2 ani |
|
|
>>>back to
top
|
|
|
|
  |
| Cod
Produs |
Model |
Putere
(W) |
Tensiune
Nominala |
| LPI00159 |

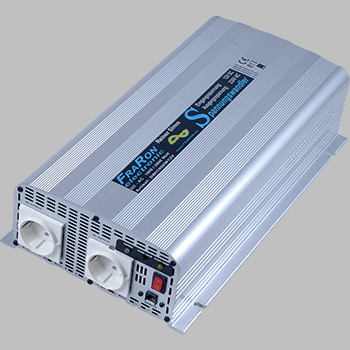

FR
1500-12PS |
1500 |
12 |
| LPI00165 |
FR
1500-24PS |
1500 |
24 |
|
|
|
|
| Model |
Electrical
Specifications General |
| Putere
Iesire (continu) |
1500
W |
Temperatura
admisa |
0°C to 40°C |
| Putere
maxima (de urgenta) |
600 W |
AC
receptacle |
Schuko |
| Tensiune
Iesire |
230 VAC +/-
5% |
Display |
Power ON
& Fault LEDs |
| Frecventa |
50 +/- 3Hz |
Siguranta
interna |
Not user
replaceable |
| Forma
de unda |
Pure Sinus |
Dimensiuni
(HxWxL) |
103x223x420 |
| Eficienta
Maxima |
90% |
Greutate |
6,2 Kg |
| Curent
max fara sarcina |
0,8 A |
Certificari |
CE, EMC |
| Tensiune
de intrare min-max |
10-16 DC
(20-32 DC) |
Garantie |
2 ani |
|
|
>>>back to
top
|
|
|
|
  |
| Cod
Produs |
Model |
Putere
(W) |
Tensiune
Nominala |
| LPI00160 |

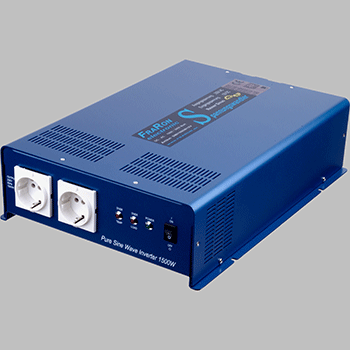

FR
1800-12PS |
1800 |
12 |
| LPI00166 |

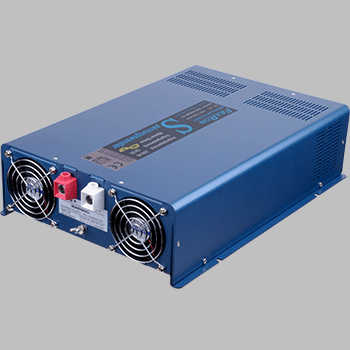

FR
1800-24PS |
1800 |
24 |
|
|
|
|
| Model |
Electrical
Specifications General |
| Putere
Iesire (continu) |
1500
W (max. 15 min - 1800W) |
Temperatura
admisa |
0°C to 40°C |
| Putere
maxima (de urgenta) |
3000 W |
AC
receptacle |
Schuko |
| Tensiune
Iesire |
230 VAC +/-
5% |
Display |
Power ON
& Fault LEDs |
| Frecventa |
50 +/- 3Hz |
Siguranta
interna |
Not user
replaceable |
| Forma
de unda |
Pure Sinus |
Dimensiuni
(HxWxL) |
100x283x415 |
| Eficienta
Maxima |
90% |
Greutate |
6,7 Kg |
| Curent
max fara sarcina |
1 A |
Certificari |
CE, EMC |
| Tensiune
de intrare min-max |
10-16 DC
(20-32 DC) |
Garantie |
2 ani |
|
|
>>>back to
top
|
|
|
|
|
| |
