SOLAR CHARGER "SOURCE"
|
|
|
|
2
mini solar panels for maximum power return. |
|
|
 |
| Maximum
output: |
6
Volts / 250 mAh |

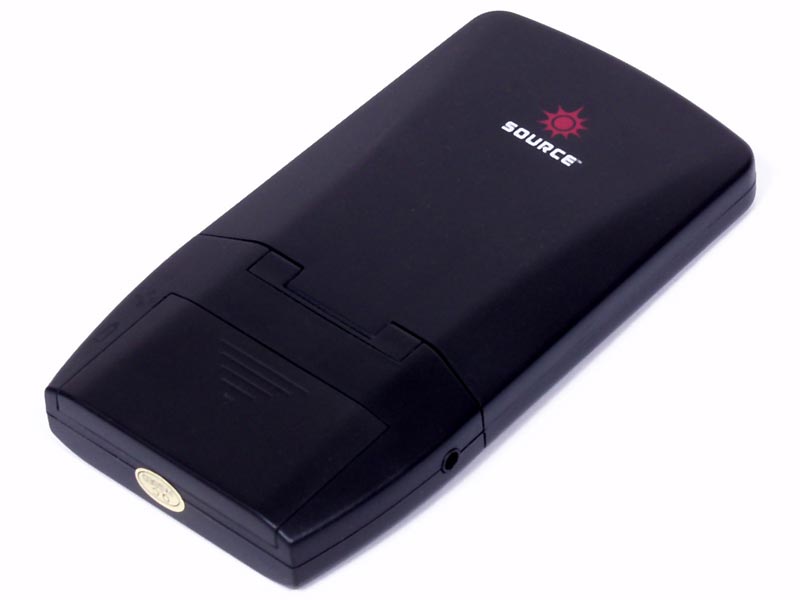

| Dimensions
when folded: |
137
x 76 x 22 mm |
| Weight: |
App.
125 grams |
Charging
time:
|
Mobile
phone:
AA batteries: |
2-3
hrs
10-12 hrs. |
|
|
 |
Charging
times as indicated is under full sunlight conditions and are
averages.
Reverse current protection circuit integrated to prevent batteries
from being discharged when no sun
Smart chip technology/electronic switch integrated to arrange
exact stable current needed for your mobile application.
Designed and developed in Norway. |
|
|
Charge
your phone in bright weather conditions or under a lamp
(min. 60W at
20cm):

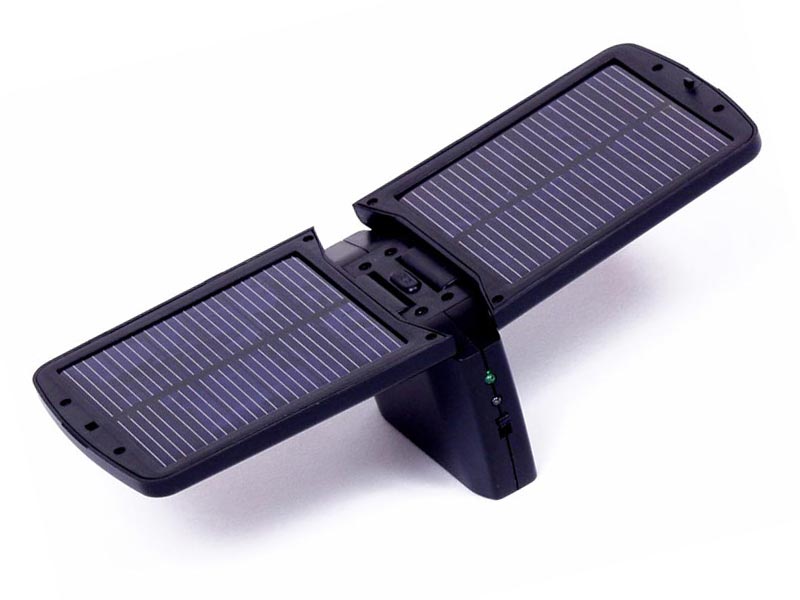

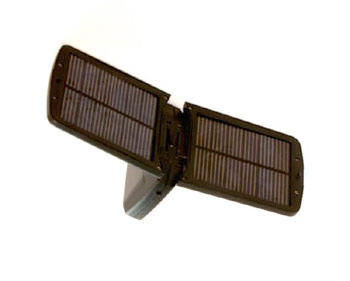

- Open
panels, turn them towards the light source and wait a few seconds.
- LED
will turn bright green.
- Put
switch in battery position to arrange charging start-up.

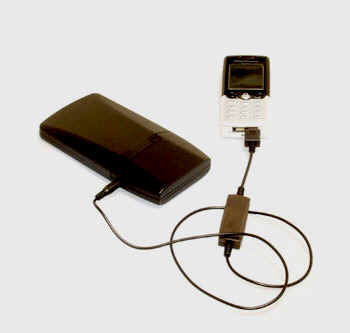

- Connect
your mobile phone with the wire designed for your phone brand.
- When
your phone starts to charge, put switch in solar position to move to
solar charging only as otherwise you will use the AA batteries (see
below).
- Your
phone will be recharged to app. 75 - 80% of full capacity in 2-3
hrs.
- Some
phone models might stop charging after app. 30 minutes. Then please
restart charging as indicated above for continuing charging your
phone.
Charge
your phone in less optimal weather conditions or even at night:
- When
insufficient light, leave switch in battery position.
- LED
will turn soft green.
- Phone
will be rapid-charged in app. 1 hr. to 50% of its full capacity when
integrated AA batteries are fully charged.
- After
app. 1 hr. the red LED will turn on, indicating that you would need
to recharge the integrated AA batteries within short.
- The
red LED indicates that the batteries have lost only app. 20% of
their capacity, so they are not empty and can either be recharged or
used in other applications.
Charge
your rechargeable AA batteries:
- When
the LED turns red, batteries would need to be recharged.
- Open
panels, turn them towards the light source and wait a few seconds.
- LED
will turn bright green.
- Put
switch in battery position to start recharging the AA batteries.
- Recharging
time from the LED turning red to the AA batteries being fully
charged again, will be app. 2-3 hrs., depending upon the amount of
light available.
- When
the batteries are taken out to be used in other applications and
fully used / empty, full recharging will take 10 – 12 hrs.,
depending upon the amount of light available.
|
   |
|
- A
strong and durable pocketsize solar charger for various mobile
appliances (e.g. mobile phones, PDA’s, portable audio) and/or 2
AA-batteries
- Charges
even with light from a 60 W light bulb
- The
2 integrated rechargeable AA batteries will work as a power back-up
or can be taken out to use in other equipment
- Patented
smart chip technology integrated in the charger guarantees you that
it works!
- Connecting
wires available for Nokia, Ericsson, Motorola, Samsung and Siemens
mobile phones
- Connecting
wires for other products such as PDA's, Digital cameras, portable
audio, etc. coming shortly.
|
|
;)
