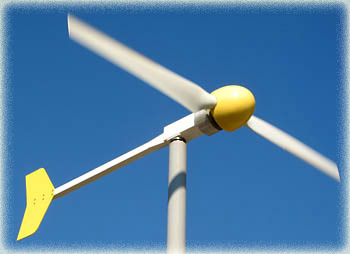

Wind Turbine "Scirocco"

Scirocco is a 5.6 m diameter rotor, 6 kW output professional-scale  wind generator ideal for remote sites with medium power needs, such as small farms, houses, or large homesteads and especially rural or village electrification, sea water desalination, direct electrical water run-of-the-wind pumping .Scirocco is characterized by low rotation speed, a very high efficiency, more particularly  in the lower to medium wind speed range which is prevailing most of the time . This is the result of the conjunction of an optimized 2 blades rotor, an efficient direct drive PM generator, and variable speed management combined with the maximal power point tracking control following the constantly varying wind speed.



Cod Produs	LPE00353
Rated Output Power	6 kW at 11.5 m/s  and above (useful power at electronic output)
Cut in wind speed	<2.7 m/s
Rated wind speed	11.5 m/s
Survival wind speed	60 m/s
Rotor diam. / swept area	5.6 m / 24.7 m²
Blades	2 FV+ Epoxy blades, aluminum root insert, hollow technology
Power & Overspeed regulation	Full span stall centrifugal device (fully sealed mechanism)
Rotation speed	80 to 245 rpm
Generator	synchronous NdFeB permanent magnet generator, fully sealed
Yawing	passive by downwind tail
Bearings	sealed slewing rings on blades and yawing
Towers	18/24/30m std. tilt up guyed towers, galvanized steel
Weight	202 kg (complete nacelle with rotor and generator)
Maintenance	annual inspection

Noticeable points, energy production starts from less than 3m/s, rated output power is obtained from 12 m/s and remain constant up to the maximum windspeed (60 m/s), thanks to the overspeed centrifugal full span stall control device. These unique features make the Scirocco unit the most powerful WT of its class, without equivalent on the market, with a real energy production which is superior to those of some 7m diam. wind turbines. Tip speed is limited to 70m/s for low noise and low wearing.

Pentru a vedea cum functioneaza o turbina Scirocco puteti vizualiza videoclipul din stanga . Filmul are o dimensiune de 930Kb, in fomat AVI si poate fi vizualizat folosind Windows Media Player.
