ECOVOLT - Cabluri si conectori fotovoltaic solar

Cabluri si conectori pentru panouri fotovoltaice si sisteme cu energie alternativa

Caburile pentru conectarea panourilor solare fotovoltaice, trebuie sa indeplineasca cateva caracteristici foare importante pentru a rezista in timp. Trebuie sa reziste la temperaturi de + 90 de grade si iarna pana la temperaturi de - 30 grade Celsius, de asemenea trebuie sa suporte protectia la razele ultraviolete.

1. Seria cabluri si conectori RADOX

Este unul din cele mai intalnite cabluri fabricate in Germania de catre producatorul Huber+Suhner.

Product Code	Model	Date Tehnice
LPZ00064	Cablu Solar RADOX® - 4mmp
LPZ00059	RADOX® Solar Twist Lock Conector Huber+Shuner socket 4mmp
LPZ00060	RADOX® Solar Twist Lock Conector Huber+Shuner plug 4mmp

>>>back to top

2. Conectori cablu fotovoltaic MC4

Conectori pentru cabluri solare utiliate pentru panouri solare fotovoltaice fabricate de Multicontact Corp. in formatul standard MC4.

Product Code	Model	Date Tehnice
LPZ00104	4mmp MC4 -PV KST4/6II-UR Coupler Plug
LPZ00105	4mmp MC4 -PV KBT4/6II-UR Socket Outlet

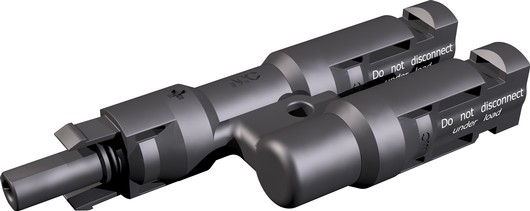

LPZ00106	MC4 PV Branch Plug Multicontact AZS4

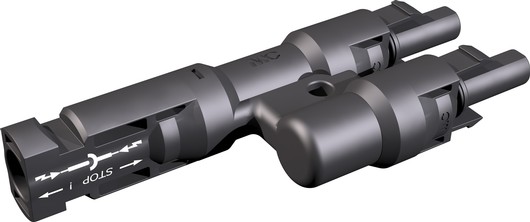

LPZ00107	MC4 PV Branch Socket Multicontact AZB4

>>>back to top

3. Conectori cablu fotovoltaic PN

Product Code	Model	Date Tehnice

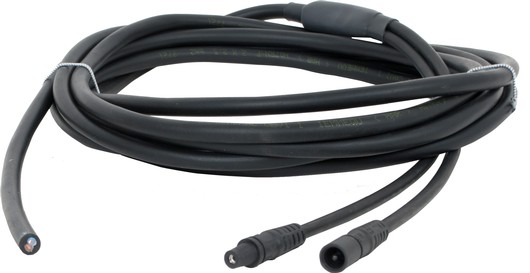

LPZ00...	Quick Clip Set 1 PN

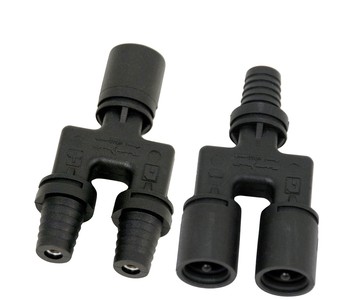

LPZ00...	Quick Clip Set 2 PN

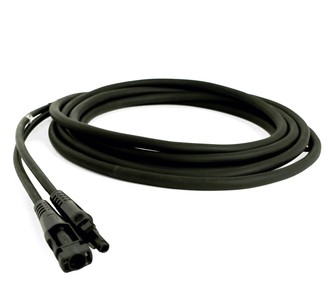

LPZ00...	Quick Clip Set 3 PN with MC4 5m

>>>back to top

4. Cablu solar Helukabel - Solarflex

DATE TEHNICE CABLU

Descarca fisier PDF >

Cod produs	Descriere

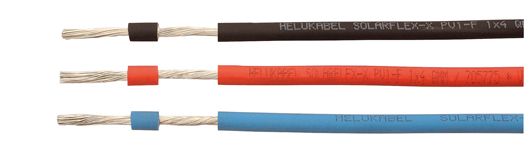

LPZ00092	Cable Solarflex-X PV-F 1 x 2,5 mm² black
LPZ00093	Cable Solarflex-X PV-F 1 x 2,5 mm² red
LPZ00094	Cable Solarflex-X PV-F 1 x 2,5 mm² blue
LPZ00095	Cable Solarflex-X PV-F 1 x 4 mm² black
LPZ00096	Cable Solarflex-X PV-F 1 x 4 mm² red
LPZ00097	Cable Solarflex-X PV-F 1 x 4 mm² blue
LPZ00098	Cable Solarflex-X PV-F 1 x 6 mm² black
LPZ00099	Cable Solarflex-X PV-F 1 x 6 mm² red
LPZ00100	Cable Solarflex-X PV-F 1 x 6 mm² blau
LPZ00101	Cable Solarflex-X PV-F 1 x 10mm² black
LPZ00102	Cable Solarflex-X PV-F 1 x 10mm² red
LPZ00103	Cable Solarflex-X PV-F 1 x 10mm² blue

>>>back to top

5. Cablu solar TECSUN - by Prysmian

Cod produs	Descriere

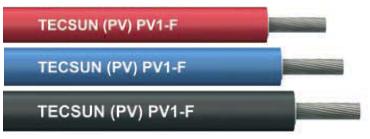

LPZ00091	Cablu Solar TECSUN (PV) 4mmp
Date tehnice

>>>back to top

6. Trusa pentru cabluri si conectori panouri fotovoltaice

Trusa speciala pentru conectare si sertizare cabluri solare.

Cod produs	Descriere
LPW00184	RADOX^® Solar Complete Tool Box
	Crimp Tool for 4mm² and 6mm² Twist Lock Connectors
	Insulation Stripper for 2.5mm², 4mm² and 6mm² Cable
	RADOX^® Belt Carrier for Solar Tools
	Cable Cutters
	Solar Measuring Adaptor Set 2.5mm² and 4mm²

>>>back to top

7. Cabluri si conectori Tyco

Tyco ( redenumit TE) este unul din producatorii europeni care fabrica cabluri si conectori pentru panourile fotovoltaice..

Product Code	Model	Date Tehnice

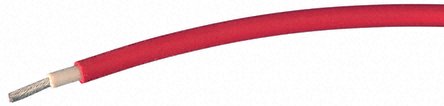

LPZ00025	Cablu Solar Tyco rosu - 4mmp

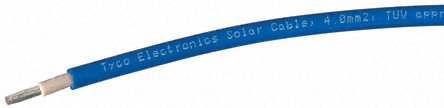

LPZ00026	Cablu Solar Tyco albastru - 4mmp
LPZ00052	Cablu Solar Tyco negru - 4mmp

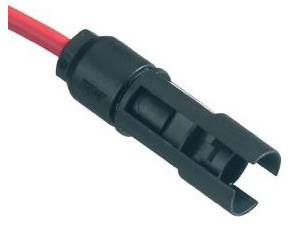

LPZ00027	Conector fotovoltaic 4mmp female (+)
LPZ00029	Conector fotovoltaic 4mmp female (-)

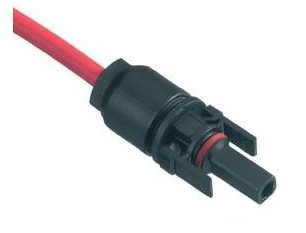

LPZ00028	Conector fotovoltaic 4mmp male (+)
LPZ00030	Conector fotovoltaic 4mmp male (-)

>>>back to top

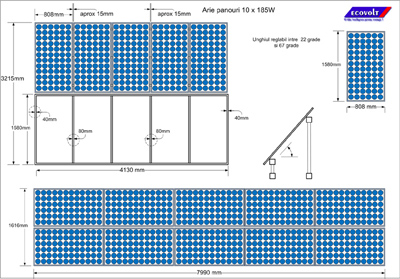

8. Sisteme de fixare mecanica panouri

Sistemele de fixare in acoperis trebuie sa indeplineasca cateva criterii resrictive, fiind formate din piese tipice din aluminiu anodizat.

COD Produs	Model	Cant	Imagine

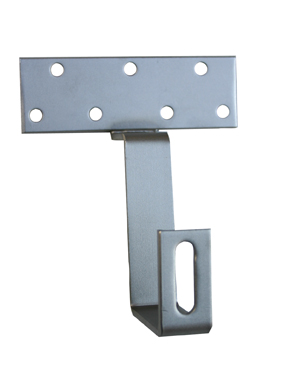

LPW00195	Carlig de fixare in acoperis de tigla - permite prinderea profilelor de aluminiu pe acoperisurile din tigla. (Solar roof hooks for Frankfurter Pfanne tiles)	buc

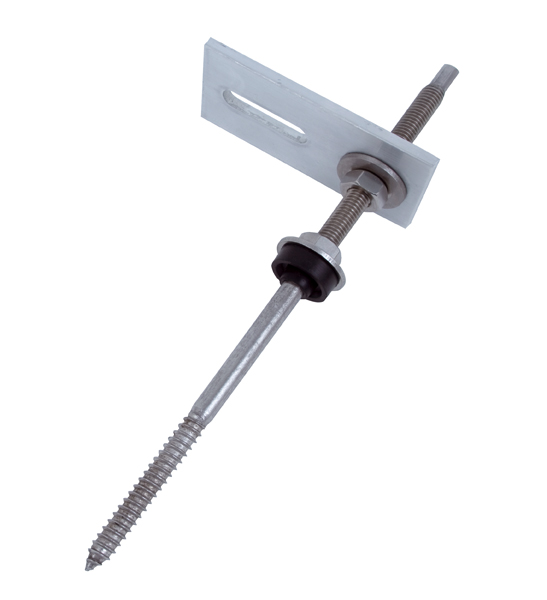

LPW00196	Surub de fixare in acoperis de tabla cu protectie garnitura de cauciuc 160mm Corrugated Sheet Roof Screw fitting 160mm	buc
LPW00197	Surub de fixare in acoperis de tabla cu protectie garnitura de cauciuc 200mm Corrugated Sheet Roof Screw fitting M10x200mm	buc

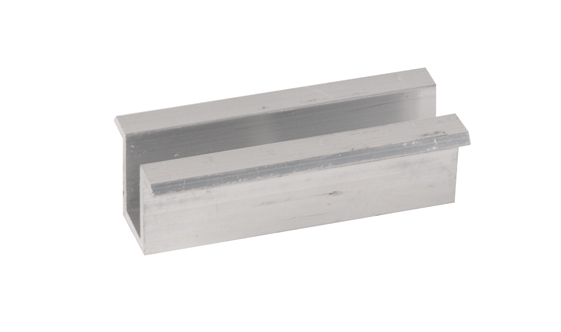

LPW00198	Piesa prindere T panou fotovoltaic Module Clamp Centric T for Module Support Structur	buc

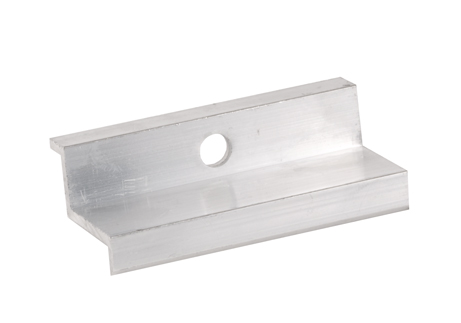

LPW00199	Piesa prindere M panou fotovoltaic Module Clamp side M for Module Support structure	buc

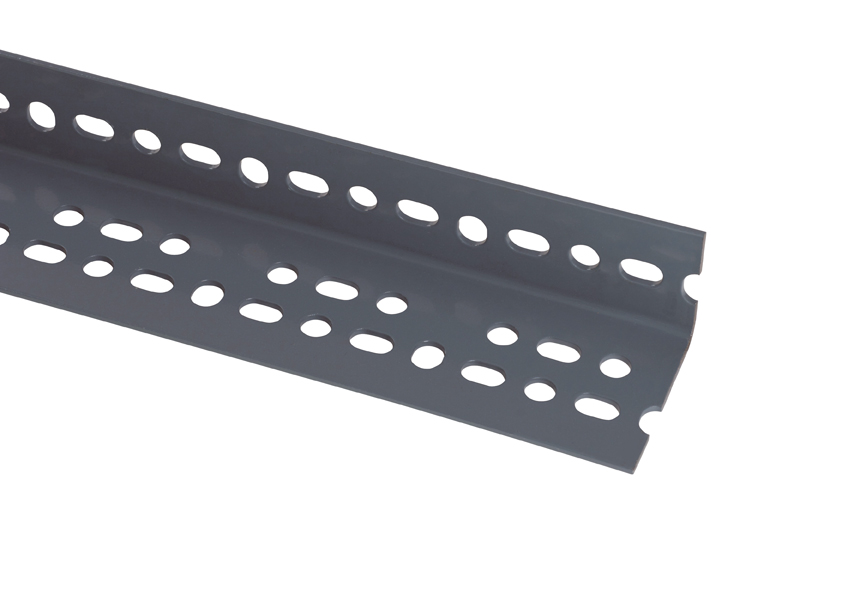

LPW00193	Profil perforat panou fotovoltaic metal vopsit electrostatic 35mm Slotted angle for Module Support Dexion 140	3m
LPW00194	Profil perforat panou fotovoltaic metal vopsit electrostatic 40mm Slotted angle for Module Support Dexion 160	3m
LPW00200	Profil aluminiu panou fotovoltaic fixare de 40mm x 40mm Profile Bar for Module Support Structure	1m

>>>back to top
