Lampi Economice de curent continu (DC)



Lampile economice sunt dispozitive indispensabile in cadrul unui sistem de energie alternativa. Utilizarea acestor dispozitive in curent continu, reduce seminfivativ consumul suplimentar in curent alternativ si implicit reduce costul invertorului DC- AC folosit. Aceste lampi sunt o solutie la indemana oricui doreste sa realizeze o economie insemnata de energie.

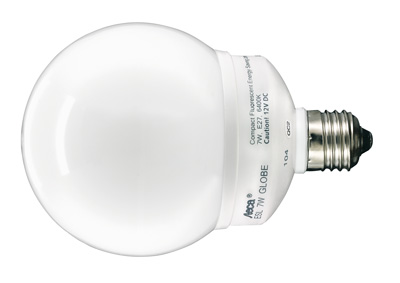

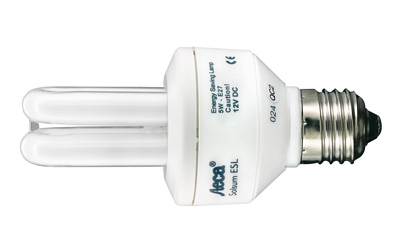

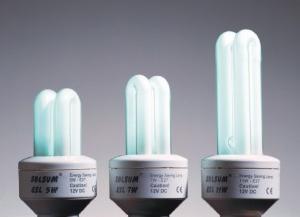

1. Seria  Solsum





Lampile economice de curent continu sunt prezentate intr-un design compact la un pret foarte mic, avand o performanta foarte ridicata. Datorita unui dispozitiv integrat , lampile pot fi comutate stins/aprins  de mii de ori fara defectiuni. Durata de viata a acestor lampi este foarte mare in comparatie cu lampile incandescente folosite in mod current.


Nominal Current mA 450
Nominal Voltage VDC ± 20% 12V
Luminus Flux Lm (12V) 230
Luminous Efficacy lm/w (12V) 42
Life-Span h 6000
Operating Temperature °C -5... +40
Dimensions cm (h x b) 12 x 5,5
Weight Kg 0,125
Power W 5
Performance Product Code Socket Model
bright yellow light LPL00003 E27 ESL 5
bright  white light LPL00004 E27 ESL 5
bright yellow light LPL00005 B22d ESL 5



Nominal Current mA 450
Nominal Voltage VDC ± 20% 12V
Luminus Flux Lm (12V) 230
Luminous Efficacy lm/w (12V) 42
Life-Span h 6000
Operating Temperature °C -5... +40
Dimensions cm (h x b) 12 x 5,5
Weight Kg 0,125
Power W 7
Performance Product Code Socket Model
bright yellow light LPL00006 E27 ESL 7
bright  white light LPL00007 E27 ESL 7
bright yellow light LPL00008 B22d ESL 7




Nominal Current mA 450
Nominal Voltage VDC ± 20% 12V
Luminus Flux Lm (12V) 230
Luminous Efficacy lm/w (12V) 42
Life-Span h 6000
Operating Temperature °C -5... +40
Dimensions cm (h x b) 12 x 5,5
Weight Kg 0,125
Power W 11

Performance

 Product Code Socket Model
bright yellow light LPL00009 E27 ESL 11
bright  white light LPL00010 E27 ESL 11
bright yellow light LPL00011 B22d ESL 11




Nominal Current mA 450
Nominal Voltage VDC ± 20% 12V
Luminus Flux Lm (12V) 230
Luminous Efficacy lm/w (12V) 42
Life-Span h 6000
Operating Temperature °C -5... +40
Power W 7
Performance Product Code Socket Model
bright  white light LPL00012 E27 ESL 7P





Nominal Current mA 600
Nominal Voltage VDC ± 20% 24V
Luminus Flux Lm (24V) 900
Luminous Efficacy lm/w (24V) 65
Life-Span h 8000
Operating Temperature °C -5... +40

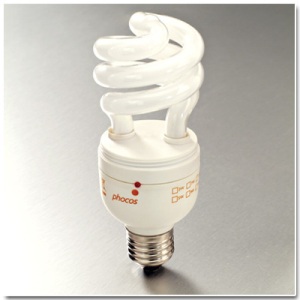

Power W 15

Performance Product Code Socket Model
warm  white light - Lumina alba calda - 2700K LPL00279 E27 CFL15W/24
cold  white light - lumina alba rece - 6400K LPL00280 E27 CFL15W/24



Nominal Current mA 85
Nominal Voltage VDC ± 20% 12V
Life-Span h 100.000
Operating Temperature °C -20... +40

Performance Luminus Flux

Power (W)

 Product Code Socket Model

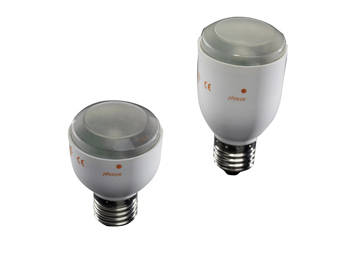

cold  white light - Lumina alba rece 70 lm 1W LPL00281 E27 SL1210CF70
cold  white light - lumina alba rece  120 lm 2W LPL00282 E27 SL1210CF120



  >>>back to top



Descriere Cod Produs
Paulmann LED 1W - G4 - 3000K

LPL00278
Putere   1 W
Tensiune 12 V
Durata de viata 10.000 h
Curent 13 mA
Culoare Warm white
Inaltime 31 mm
Diametru 15 mm
Socket: G4
flux luminos (lumen): 91 lm
Temperatura in K: 3000 K
Numar de actionari minim cicli: 40000
Factor de putere: 1
>>>back to top

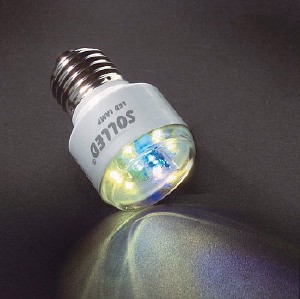

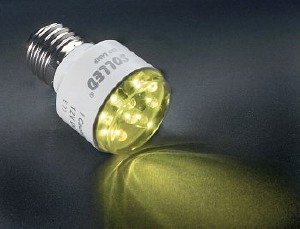

2.Seria SoLLED

Lampile economice de curent continu sunt prezentate intr-un design compact la un pret foarte mic, avand o performanta foarte ridicata. Datorita unui dispozitiv integrat , lampile pot fi comutate stins/aprins  de mii de ori fara defectiuni. Durata de viata a acestor lampi este foarte mare in comparatie cu lampile incandescente folosite in mod current.





Nominal Voltage (V) 12
Lifespan (hours) 100000
Dimension (mm) 67x42
Weight (Kg) 0,03
ProductCode Model Power(W) Nominal Current (A) Luminus Flux (lm) Socket Remark
LPL00013 SolLED 035G 0,35 30 8 E27 LED Compact Lamp yellow light
LPL00014 SolLED 035W 0,35 30 6 E27 LED Compact Lamp white light
LPL00015 SolLED 035GB 0,35 30 8 B22d LED Compact Lamp yellow light
LPL00016 SolLED 035WB 0,35 30 6 B22d LED Compact Lamp white light
LPL00017 SolLED 070G 0,7 60 15 E27 LED Compact Lamp yellow light
LPL00018 SolLED 070W 0,7 60 11 E27 LED Compact Lamp white light
LPL00019 SolLED 070GB 0,7 60 15 B22d LED Compact Lamp yellow light
LPL00020 SolLED 070WB 0,7 60 11 B22d LED Compact Lamp white light



 >>>back to top

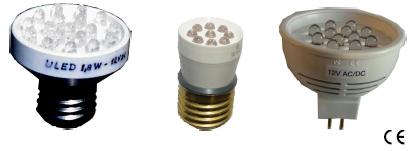

3.  Seria ULED




NominalVoltage (V) 12
LifeSpan (hours) 100000
Dimension (mm) 55x28
Weight (Kg) 0,03
Product Code Model Power (W) Weight (Kg) Socket Remark
LPL00021 ULED09W 0,9 0,02 E27 white
LPL00022 ULED18W 1,8 0,045 E27 white
LPL00023 ULED12W G53 1,2 0,02 G 5.3 G 5.3 socket and optic lens
LPL00024 ULED15W G53 1,5 0,045 G 5.3 G 5.3 socket and optic lens



  >>>back to top

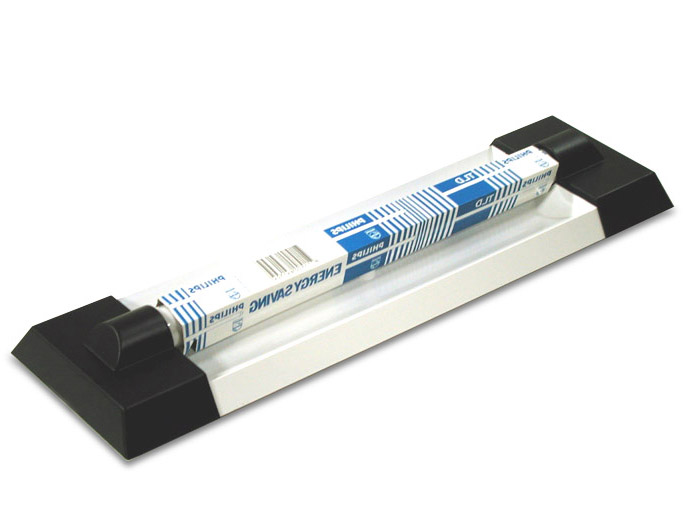

 4. Seria Sundaya A-light



LifeSpan_h 8000
Dimension_mm 428x125x51mm
Protection IP 55
Remark 12V with 210 lumen at 6W power consumption with ABS casing
Product Code Model Power (W) Nominal Voltage (V) LuminusFlux (lm)
LPL00123 Alight 6W black 6 12 210
LPL00124 Alight 6W grey 6 12 210


LifeSpan_h 8000
Dimension_mm 428x125x51mm
Protection IP 55

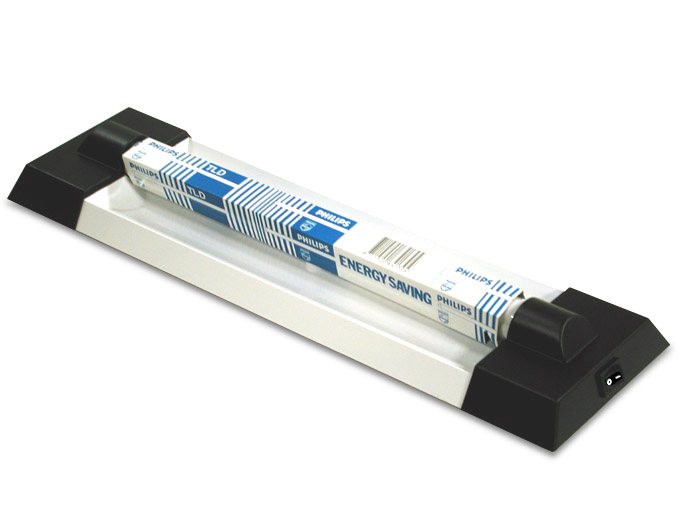

Remark 12V with 210 lumen at 6W power consumption, with built in pull switch
Product Code Model Power (W) Nominal Voltage (V) LuminusFlux (lm)
LPL00127 Alight 6W PS black 6 12 210
LPL00128 Alight 6W PS grey 6 12 210
LPL00131 Alight 6W PSNL black 6 12 210
LPL00132 Alight 6W PSNL grey 6 12 210



LifeSpan_h 8000
Dimension_mm 428x125x51mm
Protection IP 55
Remark 12V with 360 lumen at 10W power consumption with ABS casing
Product Code Model Power (W) Nominal Voltage (V) LuminusFlux (lm)
LPL00125 Alight 10W black 10 12 360
LPL00126 Alight 10W grey 10 12 360



LifeSpan_h 8000
Dimension_mm 428x125x51mm
Protection IP 55

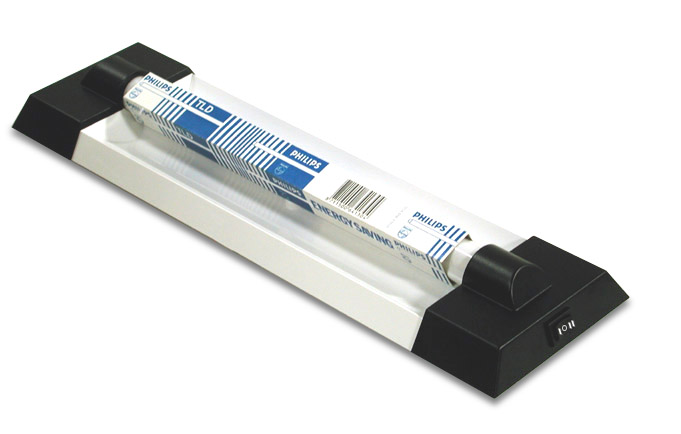

Remark 12V with 360 lumen at 10W power consumption, with built in pull switch
Product Code Model Power (W) Nominal Voltage (V) LuminusFlux (lm)
LPL00129 Alight 10W PS black 10 12 360
LPL00130 Alight 10W PS grey 10 12 360
LPL00133 Alight 10W PSNL black 10 12 360
LPL00134 Alight 10W PSNL grey 10 12 360



  >>>back to top
