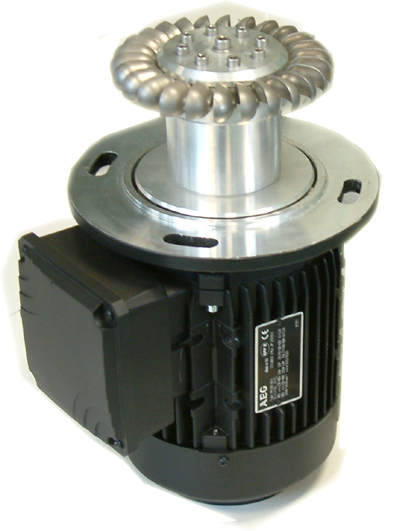

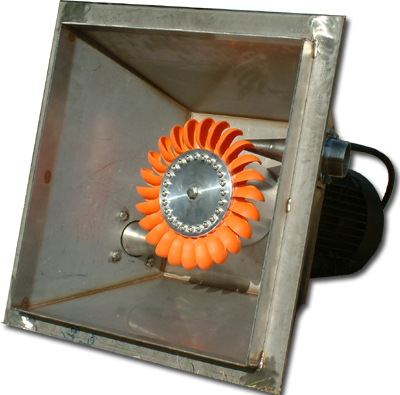

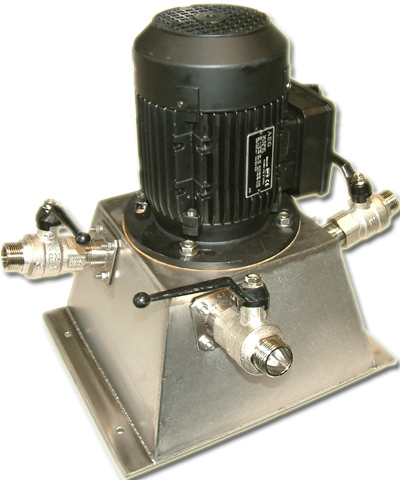

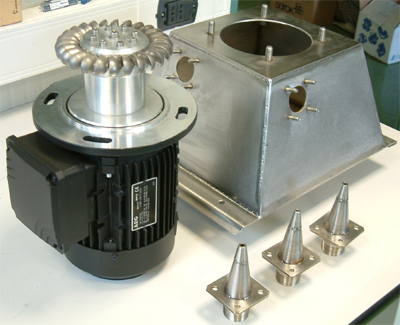

Micro-Hidro Turbine TURGO EV

(500W -10KW)



Microhidro turbinele electrice sunt cele mai eficiente si ieftine gereratoare de energie electrica. Daca aveti un mic parau, sau un rau, in apropiere cabanei sau casei, care poate furniza cel putin 0,3 litri/sec de la o diferenta de nivel de cel putin 10m nu ezitati sa  folositi un generator hidro electric. Hidroturbine - cel mai ieftina metoda pentru a produce energia electrica necesara. Veti avea energie ecologica, gratuita si nelimitata.






Cum sa utilizati o microhidroturbina


1. Turbine EV_LPE de curent continuu (DC)










Tip : Turgo
Nominal Power (W) : 500
U Nom (V) : 12/24/48VDC
Head min (m) 10
Head max (m) 200
Flow min (l/s) 0,3
Flow max (l/s) 10
Runner Diam. ( mm) 100

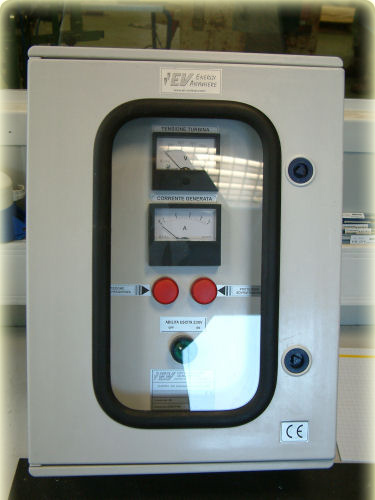

regulator included Yes
diversion load included Yes
Generator type: Induction Hi Eff.  230V 3 Phase
Water to Wire Efficiency: Max 55%  Min. 35%
Cod Produs: LPH00061 Model: EV-LPE 500-100 DC





Tip : Turgo
Nominal Power (W) : 1000
U Nom (V) : 24/48/ VDC
Head min (m) 20
Head max (m) 200
Flow min (l/s) 1
Flow max (l/s) 20
Runner Diam. ( mm) 100/150
regulator included Yes
diversion load included Yes
Generator type: Induction Hi Eff.  230V 3 Phase
Water to Wire Efficiency: Max.60% Min. 45%
Cod Produs: LPH00062 Model: EV-LPE 1000-150-DC







Tip : Turgo
Nominal Power (W) : 2000
U Nom (V) : 24/48 VDC
Head min (m) 20
Head max (m) 200
Flow min (l/s) 2
Flow max (l/s) 50
Runner Diam. ( mm) 150/200
regulator included Yes
diversion load included Yes
Generator type: Induction Hi Eff.  230V 3 Phase
Water to Wire Efficiency: Max.60% Min. 45%
Cod Produs: LPH00063 Model: EV-LPE 2000-150-DC







2. Turbine EV_LPE de curent alternativ (AC)



Tip : Turgo
Nominal Power (W) : 1000
U Nom (V) : 220V AC 1 PH
Head min (m) 20
Head max (m) 150
Flow min (l/s) 1
Flow max (l/s) 20
Runner Diam. ( mm) 100/150
3 channel IGC included Yes
diversion load included Yes
Generator type: Induction Hi Eff.  230V 3 Phase
Water to Wire Efficiency: Max 65% Min 50%
Cod Produs: LPH00064 Model: EV-LPE 1000-150-AC


Tip : Turgo
Nominal Power (W) : 2000
U Nom (V) : 220V AC 1 PH
Head min (m) 20
Head max (m) 200
Flow min (l/s) 2
Flow max (l/s) 50
Runner Diam. ( mm) 150/200
3 channel IGC included Yes
diversion load included Yes
Generator type: Induction Hi Eff.  230V 3 Phase
Water to Wire Efficiency: Max 65% Min 50%
Cod Produs: LPH00065 Model: EV-LPE 2000-150-AC


Tip : Turgo
Nominal Power (W) : 3000
U Nom (V) : 220V AC 1PH
Head min (m) 20
Head max (m) 200
Flow min (l/s) 2
Flow max (l/s) 50
Runner Diam. ( mm) 150/200
3 channel IGC included                    Yes
diversion load included                    Yes
Generator type: Induction Hi Eff.  230V 3 Phase
Water to Wire Efficiency: Max 70% Min 60%
Syncronus Gen optional
ELC optional
3 Phase   version optional
Cod Produs: LPH00066 Model: EV-LPE 3000-150-AC


Tip : Turgo
Nominal Power (W) : 5000
U Nom (V) : 220/380V AC 3PH
Head min (m) 20
Head max (m) 250
Flow min (l/s) 4
Flow max (l/s) 100
Runner Diam. ( mm) 200-300
9 Channel IGC included                    Yes
diversion load included                    Yes
Generator type: Induction Hi Eff. 220/380V 3PH
Water to Wire Efficiency: Max 70% Min 60%
Syncronus Gen optional
ELC optional
Cod Produs: LPH00067 Model: EV-LPE 5000-200-AC



Tip : Turgo
Nominal Power (W) : 10000
U Nom (V) : 220VAC/380VAC
Head min (m) 20
Head max (m) 250
Flow min (l/s) 4
Flow max (l/s) 200
Runner Diam. ( mm) 200/300
9 Channel IGC included                    Yes
diversion load included                    Yes
Generator type: Induction Hi Eff. 220/380V 3PH
Water to Wire Efficiency: Max. 75% Min. 65%
Syncronus Gen optional
ELC optional
Cod Produs: LPH00068 Model: EV-LPE 10000-200-AC
