Controlere de incarcare

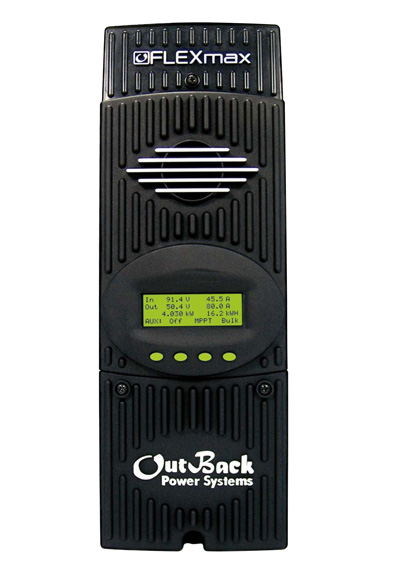

FLEXMAX from OUTBACK Power - USA

 (regulatoare profesionale de incarcare pt baterii)

Facilitati

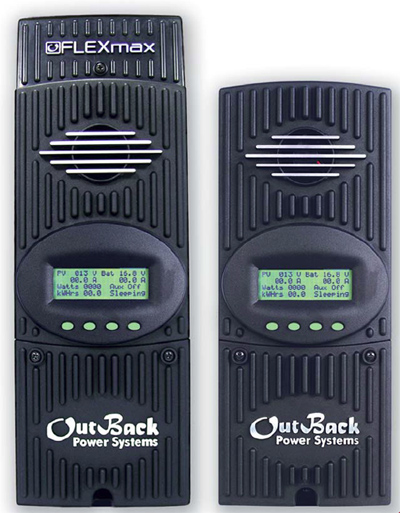

• Seria MPPT este oferita in 2 modele FLEXMAX- 60 si  FLEXMAX-80 care opereaza in curent continuu cu valori de 60 A si 80 A

• Creste puterea obtinuta din aria de panouri fotovoltaice cu peste 30% cu ajutorul MPPT incorporat.

• Incarcare in 3 trepte ( incarcare in plin , absortie, incarcare de mentinere ) si egalizare de baterie.

• Protectie automata la supraincarcare in mod pasiv si active.

• Acoperire prin 5 ani de garantie

  1. Tip FLEXMAX-60

Product Code	Model	Nominal Voltage (V)	Descarca Datasheet
LPC00114	OutBack FLEXmax FM60	12/24/48



FLEXmax™ 60 Specifications*
Nominal Battery Voltages	12, 24, 36, 48, or 60 VDC (Single model - selectable via field programming at start-up)
Maximum Output Current	60 amps @ 104° F (40°C) with adjustable current limit
Maximum Solar Array STC Nameplate	12 VDC systems 900 Watts / 24 VDC systems 1800 Watts / 48 VDC systems 3600 Watts / 60 VDC Systems 4500 Watts
NEC Recommended Solar Array STC Nameplate	12 VDC systems 750 Watts / 24 VDC systems 1500 Watts / 48 VDC systems 3000 Watts / 60 VDC Systems 3750 Watts
PV Open Circuit Voltage (VOC)	150 VDC absolute maximum coldest conditions / 145 VDC start-up and operating maximum
Standby Power Consumption	Less than 1 Watt typical
Power Conversion Efficiency	98.1% @ 60 Amps in at 48 VDC System voltage - Typical
Charging Regulation	Five Stages: Bulk, Absorption, Float, Silent and Equalization
Voltage Regulation Set points	10 to 60 VDC user adjustable with password protection
Equalization Charging	Programmable Voltage Setpoint and Duration - Automatic Termination when completed
Battery Temperature Compensation	Automatic with optional RTS installed / 5.0 mV per °C per 2V battery cell
Voltage Step-Down Capability	Can charge a lower voltage battery from a higher voltage PV array - Max 150 VDC input
Programmable Auxilary Control Output	12 VDC output signal which can be programmed for different control applications (Maximum of 0.2 amps DC)
Status Display	3.1" (8 cm) backlit LCD screen - 4 lines with 80 alphanumeric characters total
Remote Display and Controller	Optional Mate or Mate2 with RS232 Serial Communications Port
Network Cabeling	Proprietary network system using RJ 45 Modular Connectors with CAT 5e Cable (8 wires)
Data Logging	Last 128 days of Operation - Amp Hours, Watt Hours, Time in Float , Peak Watts, Amps, Solar Array Voltage, Max Battery Voltage Min Battery Voltage and Absorb for each day along with total Accumulated Amp Hours, and kW Hours of production
Hydro Turbine Applications	Consult factory for approved Turbines
Positive Ground Applications	Requires two Pole Breakers for switching both positive and Negative Conductors on both Solar Array and Battery Connections (HUB-4 and HUB-10 can not be used for use in positive ground applications)
Operating Temperature Range	Minimum -40° to maximum 60° C (Power capacity of the controller is automatically derated when operated above 40° C)
Environmental Rating	Indoor Type 1
Physical Specifications
Conduit Knockouts	One 1" (35mm)on the back; One1" (35mm) on the left side; Two 1" (35mm) on the bottom
Warranty	Standard 5 year
Weight	- Unit 11.65 lbs (5.3 kg)
	- Shipping, 14.55 lbs (6.4 kg)
Dimensions	- Unit 13.5 x 5.75 x 4" (40 x 14 x 10 cm)
	- Shipping 18 x 11 x 8" (46 x 30 x 20 cm)
Options	Remote Temperature Sensor (RTS), HUB 4, HUB 10, MATE, MATE 2
Menu Languages	English & Spanish
