Controlere
de incarcare
(regulatoare
solare de incarcare in tehnologie PWM si MPPT
)
|
|
Dispozitivele
de control a incarcarii se numesc regulatoare de incarcare si
sunt indispensabile in sistemele de energie alternativa. Fara
un control precis al functiei de incarcare se vor distruge
acumultorii conecati la sursele de energie aletrnativa.
|
|
1.

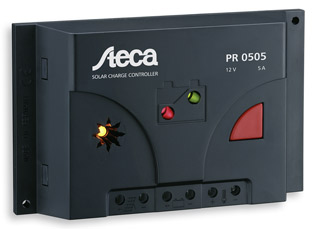

Seria PRxxxx
( tehnologie PWM )
Dispune
de siguratia electronica si are posibilitatea de deconectare
manuala a sarcinii.
La
aceste regulatoare LED-ul afiseaza incarcarea
de la panoul solar si starea bateriei in trei culori.
|
|
|
Product
Code |
LPC00001 |
| Model |
PR0303 |
|
|
| Nominal
Voltage (V) |
12 |
| Load
Current (A) |
3 |
| Germany |
|
| Self
Consumption (mA) |
3 |
| Dimension
(mm) |
146x90x33 |
| Weight
(Kg) |
0,16 |
| Protection
Class |
IP22 |
|
|
|
Product
Code |
LPC00002 |
| Model |
PR0305 |
|
|
| Nominal
Voltage (V) |
12 |
| Load
Current (A) |
5 |
| Germany |
|
| Self
Consumption (mA) |
5 |
| Dimension
(mm) |
146x90x33 |
| Weight (Kg) |
0,16 |
| Protection
Class |
IP22 |
|
|
|
|
>>>back to top
|
|
2.

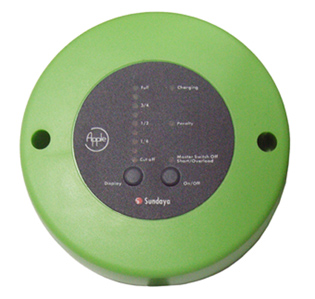

Seria Solsum seria APPLE (
tehnologie PWM )
-
gama Sundaya APPLE sunt cele mai ieftine regulatoare (charger)
solar de pe piata
|
|
 |
Nominal
Voltage (V) |
12
|
|
Date
Tehnice |
| Self
Consumption (mA) |
4 |
| Dimension
(mm) |
120x40 |
| Weight
(Kg) |
0,35 |
| Protection
Class |
IP44 |
|
Manual
Utilizare |
| Product
Code |
LPC00146 |
Model |
Sundaya Apple 5 |
Load Current (A) |
5 |
| Product
Code |
LPC00147 |
Model |
Sundaya Apple
10 |
Load Current (A) |
10 |
| Product
Code |
LPC00148 |
Model |
Sundaya Apple
15 |
Load Current (A) |
15 |
| Product
Code |
LPC00149 |
Model |
Sundaya Apple
20 |
Load Current (A) |
20 |
|
|
|
|
3.

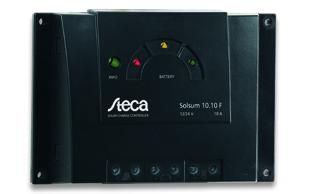

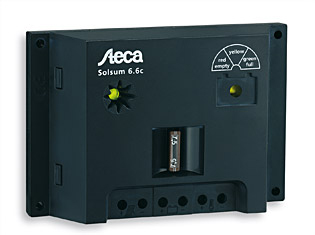

Seria Solsum seria F (
tehnologie PWM )
In
plus fata de functile de baza , protectia la supraincarcare si
descarcare adanca, acest regulator de incarcare ofera o
multitudine de alte facilitati, ca de exemplu ,
compensare de temperatura, afisarea exacta a starii de incarcare, compensarea caderii de tensiune intre incarcator si
baterie, siguranta electronica si mecanica, ajustarea automata a
tensiunii (12/24V), etc.
|
 |
Nominal
Voltage (V) |
12/24 |
|
|
| Self
Consumption (mA) |
<4 |
| Dimension
(mm) |
145 x 100 x 30 |
| Weight
(Kg) |
0,15 |
| Protection
Class |
IP32 |
|
| Product
Code |
LPC00103 |
Model |
Steca Solsum 6.6F |
Load Current
(A) |
6 |
| Product
Code |
LPC00104 |
Model |
Steca Solsum
8.8F |
Load Current
(A) |
8 |
| Product
Code |
LPC00105 |
Model |
Steca Solsum
10.10F |
Load Current
(A) |
10 |
|
|
|
|
|
|
4.
Seria PR 10, 15, 20, 30 A (
tehnologie PWM )
|
 |
Nominal
Voltage (V) |
12/24 |
|
|
| Self
Consumption (mA) |
12 |
| Dimension
(mm) |
187x96x44 |
| Weight
(Kg) |
0,35 |
| Protection
Class |
IP22 |
|
| Product
Code |
LPC00026 |
Model |
PR1010 |
Load Current (A) |
10 |
| Product
Code |
LPC00027 |
Model |
PR1515 |
Load Current (A) |
15 |
| Product
Code |
LPC00028 |
Model |
PR2020 |
Load Current (A) |
20 |
| Product
Code |
LPC00029 |
Model |

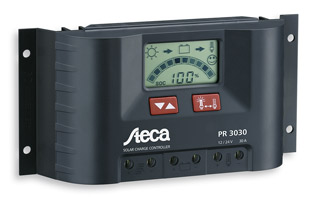

PR3030 |
Load Current (A) |
30 |
|
|
5.

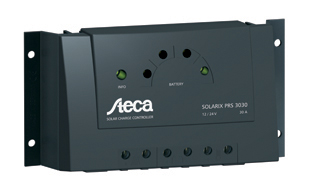

Seria PRS 10, 15, 20, 30 A (
tehnologie PWM )
|
 |
Nominal
Voltage (V) |
12/24 |
|
|
| Self
Consumption (mA) |
12 |
| Dimension
(mm) |
187x96x45 |
| Weight
(Kg) |
0,35 |
| Protection
Class |
IP34 |
|
| Product
Code |
LPC00106 |
Model |
PRS1010 |
Load Current (A) |
10 |
| Product
Code |
LPC00107 |
Model |
PRS1515 |
Load Current (A) |
15 |
| Product
Code |
LPC00108 |
Model |
PRS2020 |
Load Current (A) |
20 |
| Product
Code |
LPC00109 |
Model |
PRS3030 |
Load Current (A) |
30 |
|
|
>>>back to top
|
|
6.

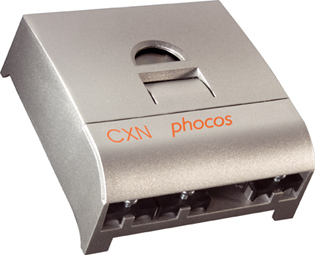

Seria Phocos CXN (
tehnologie PWM )
|
|
 |
Nominal
Voltage (V) |
12/24 |
|
|
| Self
Consumption (mA) |
12 |
| Dimension
(mm) |
187x96x45 |
| Weight
(Kg) |
0,35 |
| Protection
Class |
IP34 |
|
| Product
Code |
LPC00143 |
Model |
CXN
10 |
Load Current (A) |
10 |
| Product
Code |
LPC00144 |
Model |
CXN
20 |
Load Current (A) |
20 |
| Product
Code |
LPC00145 |
Model |
CXN
40 |
Load Current (A) |
40 |
|
|
|
|
7.

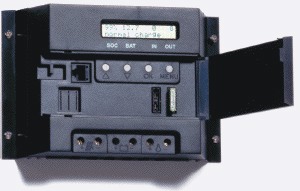

Seria TAROM 30 - 45 A (
tehnologie PWM )
Acest controller este cel mai evoluat disponibil
pe piata in acest moment. In plus fata de functile de baza ale oricarui
controler acest produs
ofera nenumarate
posibilitati de programare, procesare de date, configurare de sistem. In
plus mai dispune de un display LCD , data loger integrat, conectiune la
PC (laptop), puncte programabile de operare, afisarea exacta a starii
(SOC) si calcul automat de Ah ( amperi-ora).
|
|
Nominal
Voltage (V) |
12/24 |
|
|
| Self
Consumption (mA) |
12 |
| Dimension
(mm) |
187x96x44 |
| Weight (Kg) |
0,35 |
| Protection
Class |
IP22 |
|
| Product
Code |
LPC00015 |
Model |
Tarom 235 |
Load
Current (A) |
35A
(12/24V) |
| Product
Code |
LPC00016 |
Model |
Tarom 245 |
Load
Current (A) |
45A
(12/24V) |
| Product
Code |

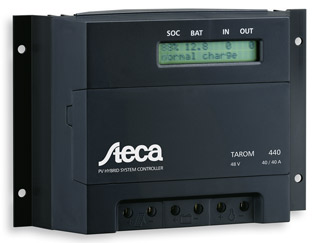

LPC00017 |
Model |
Tarom 440 |
Load
Current (A) |
45A
(48V) |
|
|
>>>back to top
|
|
8.

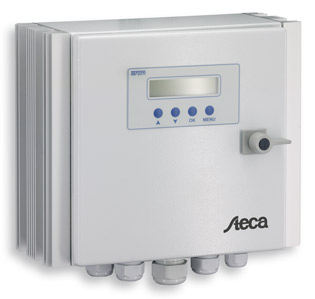

Seria POWER TAROM 55 - 140 A (
tehnologie PWM )
In plus celor metionate anterior
acest modul are o capacitate considerabil mai mare si protectie IP 65 (
protectie la improscare cu apa), conceput special pentru sisteme in aer
liber.
|
 |
Nominal
Voltage (V) |
12/24 |
|
|
|
|
|
|
| Self
Consumption (mA) |
14 |
| Dimension
(mm) |
360x330x190 |
| Weight
(Kg) |
10 |
| Protection
Class |
IP65 |
|
|
|
|
| Product
Code |
LPC00018 |
Model |
Power 2070 |
Load Current (A) |
58 |
| Product
Code |
LPC00019 |
Model |
Power 2140 |
Load Current (A) |
116 |
| Product
Code |
LPC00020 |
Model |
Power 4055 |
Load Current (A) |
46 |
|
|
9.

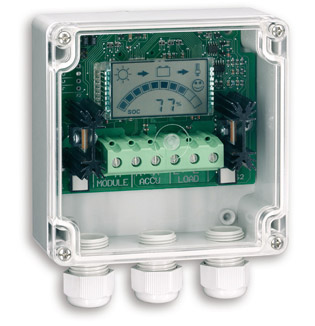

Seria IP 65 (
tehnologie PWM )
|
 |
Nominal
Voltage (V) |
12/24 |
|
|
|
|
|
|
| Self
Consumption (mA) |
7 |
| Dimension
(mm) |
162x57x112 |
| Weight
(Kg) |
0,4 |
| Protection
Class |
IP65 |
|
|
|
|
| Product
Code |
LPC00111 |
Display LCD |
PR 2020-IP 65 |
Load Current (A) |
20 |
|
 |
Nominal
Voltage (V) |
12/24 |
|
|
|
|
|
|
| Self
Consumption (mA) |
7 |
| Dimension
(mm) |
162x57x112 |
| Weight
(Kg) |
0,4 |
| Protection
Class |
IP65 |
|
|
|
|
| Product
Code |
LPC00022 |
Display LED |

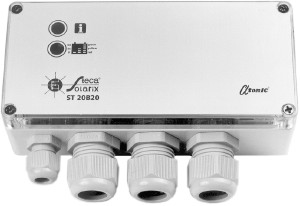

ST 10 B 10 |
Load Current (A) |
10 |
| Product
Code |
LPC00023 |
Display LCD |
ST 10 L 10 |
Load Current (A) |
10 |
| Product
Code |
LPC00024 |
Display LED |
ST 20 B 20 |
Load Current (A) |
20 |
| Product
Code |
LPC00025 |
Display LCD |
ST 20 L 20 |
Load Current (A) |
20 |
|
|
>>>back to top
|
|
Regulatoare
solare de incarcare in tehnologie MPPT - Digitale
|
|
|
|
10.
Seria STECA - MPPT
( Ecovolt este Reprezentant Oficial Steca in Romania)
|
|
Ce
este un regulator MPPT ??
|
|

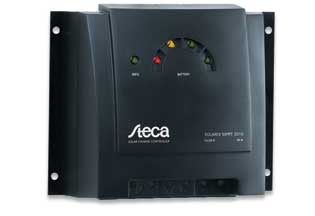

Steca Solarix MPPT este un controler
(regulator) de incarcare in tehnologie MPPT care detecteaza automat punctul de funcţionare optimă a
panourilor fotovoltaice pentru a asigura energia maximă transferabila
spre baterie. Acest regulator excelează în ceea ce priveşte modul de
incarcare profesional al bateriei de acumulatori, funcţiile de protecţie, de fiabilitate şi
modul de configurare flexibil al panoului solar. Toate tipurile de
panouri pot fi utilizate in sisteme. Steca Solarix MPPT 2010 poate fi, de
asemenea utilizat impreuna cu module fotovoltaice thin-film.
|
 |
Tensiune
Nominala (V) |
12/24 |
|
Date tehnice |
|
|
|
| Vpam |
15Vdc
- 75 Vdc |
| Consum
intern (mA) |
7 |
| Dimensiune
(mm) |
190x150x70 |
| Greutate
(Kg) |
0,9 |
| Clasa
de protectie |
IP23 |
|
|
|
|
| Product
Code |
LPC00151 |
Display LED |
Solarix MPPT
1010 |
Load Current (A) |
10
Amperi |
| Senzorul
de temperatura si eventuale programari externe sunt optionale . |
|
|
Tensiune
Nominala (V) |
12/24 |
|
Date
tehnice |
|
|
Vpam |
15Vdc
- 100 Vdc |
| Consum
intern (mA) |
7 |
| Dimensiune
(mm) |
190x150x70 |
| Greutate
(Kg) |
0,9 |
| Clasa
de protectie |
IP23 |
|
|
| Product
Code |
LPC00110 |
Display LED |
Solarix
MPPT 2010 |
Load
Current (A) |
20
Amperi |
| Senzorul
de temperatura si eventuale programari externe sunt optionale . |
|
|
|
Product
Code |
LPU00037 |
|
Display LED |

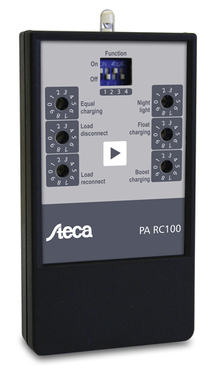

Programator STECA PA RC100 |
|
Date
tehnice |
|
| Clasa
de protectie |
IP23 |
|
|
|
|
| Dimensiune
(mm) |
190x150x70 |
| Greutate
(Kg) |
0,9 |
| permite
programarea regulatoarelor de incarcare PWM si MPPT |
|
|
|
Tensiune
Nominala (V) |
12/24/48 |
|
Date
tehnice |
|
|
Vpam |
17Vdc
- 200 Vdc |
| Consum
intern (W) |
2 |
| Dimensiune
(mm) |
295 x 335 x 125 |
| Greutate
(Kg) |
6,3 |
| Clasa
de protectie |
IP31 |
|
|
| Product
Code |
LPC00172 |
Display |

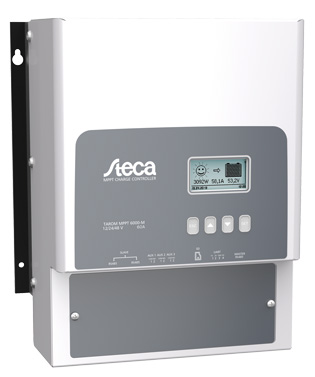

Steca Tarom MPPT 6000
|
Load
Current (A) |
60
Amperi |
| Senzorul
de temperatura este optional . |
|
|
|
|

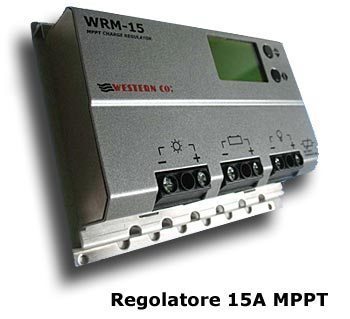

11. Seria MPPT Western co.
( Ecovolt este Reprezentant Oficial Western Co. in Romania)
Regulatorul MPPT fabricat de
Western Co. Italia este unic in grupa regulatoarelor solare in
tehnologie MPPT de mica putere. Practic acest regulator este singurul
regulator programabil cu display disponibil in gama profesional la 15
A.
|
|
Ce
este un regulator MPPT ??
|
|
|
|
Nominal
Voltage (V) |
12/24V |
| Vpam |
0-100Vdc |
| Dimension
(mm) |
160x134x49 |
| Weight
(Kg) |
0,5 |
| Protection
Class |
IP20 |
|
|
English
Manual |
|
|
Manual
Romana
|
| Product
Code |
LPC00141 |
Display |

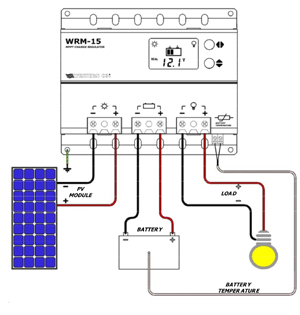

Western
WRM15 |
Load Current (A) |
15 |
|
Senzorul
de temperatura si programarea completa sunt incluse !!
|
|
|
|
|
|
|
Nominal
Voltage (V) |
12/24/48V |
| Vpam |
0-150Vdc |
| Dimension
(mm) |
239x178x83 |
| Weight
(Kg) |
2,0 |
| Protection
Class |
IP31 |
|
|
English
Manual |
|
|
Manual
Romana
|
| Product
Code |
LPC00168 |
Display |

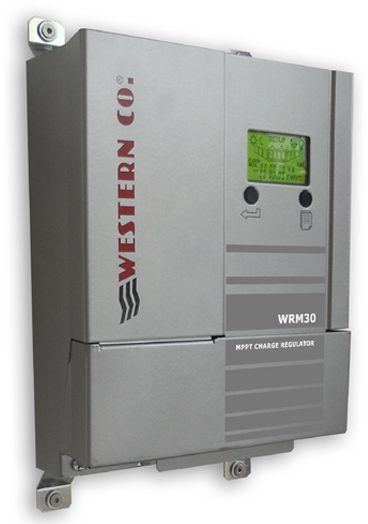

Western
WRM30 |
Load Current (A) |
30 |
|
Senzorul
de temperatura si programarea completa sunt incluse !!
|
|
|
|
|
|
|
|
|

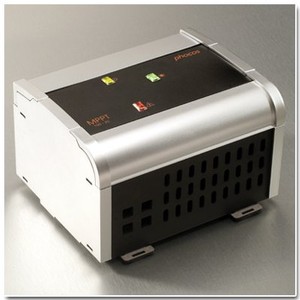

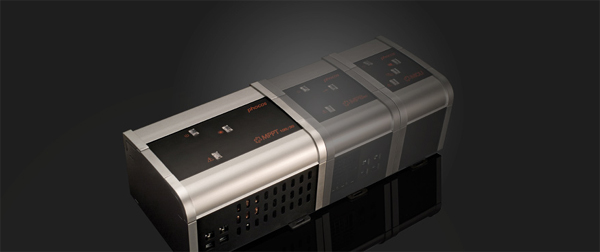

12. Seria MPPT
PHOCOS GmbH
Regulatorul MPPT
fabricat de Phocos realizeaza "legatura" intre clasa
regulatoarelor MPPT de mica putere si clasa regulatoarelor
profesionale cu gestiunea curentilor mari. Acest regulator MPPT
este singurul disponibil intre gama de regulatoare < 20A si
cele > 45A. Desi nu dispune de display, pentru situatile in
care sunt utilizate panouri fotovoltaice cu putere intre 260W si
450W la 12V , este cea mai buna alegere.
|
|
|
|
Nominal
Voltage (V) |
12/24/V |
| Vpam |
0-95Vdc |
| Dimension
(mm) |
180x150x112 |
| Weight
(Kg) |
1,58 |
| Protection
Class |
IP20 |
|
|
Datasheet
|
|
|
User
Manual
|
| Product
Code |
LPC00169 |
Phocos
MPPT 100/30 |
Load Current (A) |
33 |
|
|
|
|
|
|
|
|

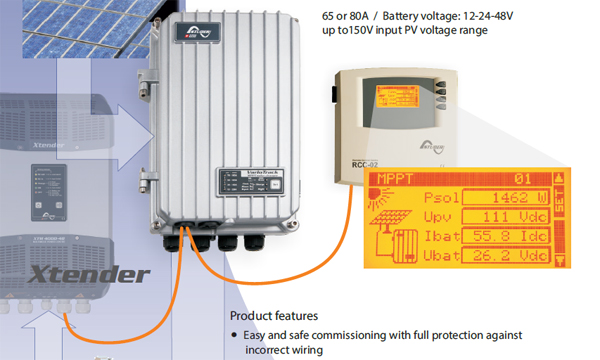

13. Seria MPPT
STUDER Elvetia
( Ecovolt este Reprezentant Oficial Studer in Romania) Regulatoarele
MPPT fabricat de Studer Elvetia fact parte din gama profesional
fiind realizate in doua variante la 60A si 80A. Ambele
regulatoare beneficiaza de interfata programabila si conectare
la internet.
|
|
|
|
|
Tensiune
Nominala (V) |
12/24/48 |
|
Date
tehnice |
|
|
Vpam |
15Vdc
- 150 Vdc |
| Consum
intern (mA) |
7 |
| Dimensiune
(mm) |
120x220x310 |
| Greutate
(Kg) |
5,2 |
| Clasa
de protectie |
IP54 |
| Garantie
fabricant |
5
ani |
| Product
Code |
LPC00170 |
Studer
MPPT VarioTrack VT-65 |
Load
Current (A) |
65
Amperi |
| Temperatura
de lucru intre - 20 grade si +55
grade |
| Senzorul
de temperatura si eventuale programari externe sunt optionale . |
|
|
|
Tensiune
Nominala (V) |
12/24/48 |
|
Date
tehnice |
|
|
Vpam |
15Vdc
- 150 Vdc |
| Consum
intern (mA) |
7 |
| Dimensiune
(mm) |
120x220x310 |
| Greutate
(Kg) |
5,5 |
| Clasa
de protectie |
IP54 |
| Garantie
fabricant |
5
ani |
| Product
Code |
LPC00171 |

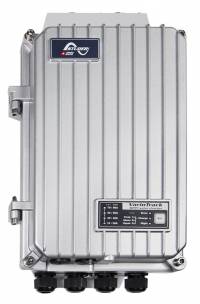

Studer
MPPT VarioTrack VT-80 |
Load
Current (A) |
80
Amperi |
| Temperatura
de lucru intre - 20 grade si +55
grade |
| Senzorul
de temperatura si eventuale programari externe sunt optionale . |
|
|
|
|
|
|
|
Product
Code |
LPW00154 |
|
Display LED |
Senzor de miscare Steca PA IRS 1008 |
|
Date
tehnice |
|
| Clasa
de protectie |
IP65 |
| Raza
de actiune |
7m
/180 grade |
| Tensine |
12v/5A |
| Dimensiune
(mm) |
190x150x70 |
| Greutate
(Kg) |
0,2 |
| permite
instalarea unei automatizari cu senzor de miscare |
|
|

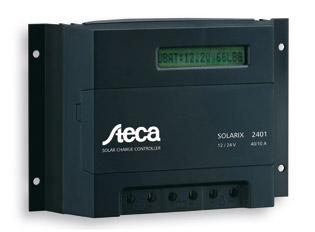

14.
Seria 2401 si 4401
Sisteme sunt complet
programabile si de aceea sunt excelente pentru toate aplicatiile.
|
|
|
|
>>> inapoi sus
|
|
|
|
|
|
15.
Seria SOLSUM
( END
OF LIFE
- tehnologie PWM )
Steca Solar Charge Controller Solsum- acest
controler de mare fiabilitate si cost redus are in componenta un
processor Atonic. Include protectie la supraincarcare controlata
de un senzor si alarma de descarcare totala.
|
|
|
Product
Code |
LPC00003 |
| Model |
Solsum
5.0C |
|
|
| Nominal
Voltage (V) |
12/24 |
| Load
Current (A) |
5 |
|
| Self
Consumption (mA) |
4 |
| Dimension
(mm) |
130x88x39 |
| Weight
(Kg) |
0,165 |
| Protection
Class |
IP22 |
|
|
|
Product
Code |
LPC00004 |
| Model |
Solsum
8.0C |
|
|
| Nominal
Voltage (V) |
12/24 |
| Load
Current (A) |
8 |
|
| Self
Consumption (mA) |
4 |
| Dimension
(mm) |
130x88x39 |
| Weight
(Kg) |
0,165 |
| Protection
Class |
IP22 |
|
|
Product
Code |
LPC00005 |
| Model |
Solsum
6.6C |
|
|
| Nominal
Voltage (V) |
12/24 |
| Load
Current (A) |
6 |
|
| Self
Consumption (mA) |
4 |
| Dimension
(mm) |
130x88x39 |
| Weight
(Kg) |
0,165 |
| Protection
Class |
IP22 |
|
|
|
Product
Code |
LPC00006 |
| Model |
Solsum
8.8C |
|
|
| Nominal
Voltage (V) |
12/24 |
| Load
Current (A) |
8 |
|
| Self
Consumption (mA) |
4 |
| Dimension
(mm) |
130x88x39 |
| Weight
(Kg) |
0,165 |
| Protection
Class |
IP22 |
|
|
|
Product
Code |
LPC00100 |
| Model |
Solsum
10.10C |
|
|
| Nominal
Voltage (V) |
12/24 |
| Load
Current (A) |
8 |
|
| Self
Consumption (mA) |
4 |
| Dimension
(mm) |
130x88x39 |
| Weight
(Kg) |
0,165 |
| Protection
Class |
IP22 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
)
)
