Controlere (regulatoare) de incarcare

TriStar from Morningstar - USA



 (regulatoare profesionale de incarcare pt baterii de acumulatori)





Facilitati

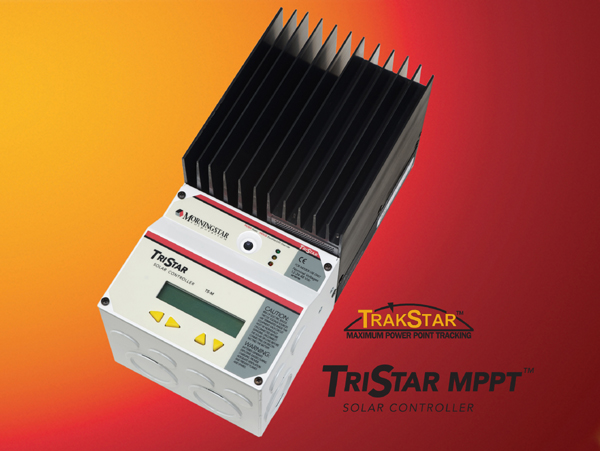

  • Morningstar’s TriStar MPPT solar controller with TrakStar Technology™ is an advanced maximum power point
    tracking (MPPT) battery charger for off-grid photovoltaic (PV) systems up to 3kW. The controller provides the
    industry’s highest peak efficiency of 99% and significantly less power loss compared to other MPPT controllers.
    The TriStar MPPT features a smart tracking algorithm that maximizes the energy harvest from the PV by rapidly
    finding the solar array peak power point with extremely fast sweeping of the entire I-V curve. This product is the
    first PV controller to include on-board Ethernet for a fully web-enabled interface and includes up to 200 days of
    data logging.



1. Tip TS MPPT - Morningstar


Product Code Model Nominal Voltage (V) Descarca Datasheet
LPC00132 TS MPPT  45 12/24/48
LPC00133 TS MPPT 60 12/24/48







   Ce este un regulator solar MPPT ??





Facilitati

  • Seria TS este oferita in 2 modele TS- 45 si  TS-60 care opereaza in curent continuu cu valori de 45 A si 60 A

  • Silentioase, folosesc modulatia in latime a impulsului (PWM) si opereaza cu mare eficienta.

  • Incarcare in 3 trepte ( incarcare in plin , absortie, incarcare de mentinere ) si egalizare de baterie.

  • Protectie automata la supraincarcare in mod pasiv si active.

  • Protectie la scurtcircuit si inversarea polaritatii.

  • Acoperire prin 2 ani de garantie

  • Control prin microprocessor si remote control ca optiune

  • Ofera posibilitatea de a selecta intre baterii cu NiCa, baterii cu acid, cu gel sau AGM.

  • Control prin internet sau conectare via GSM

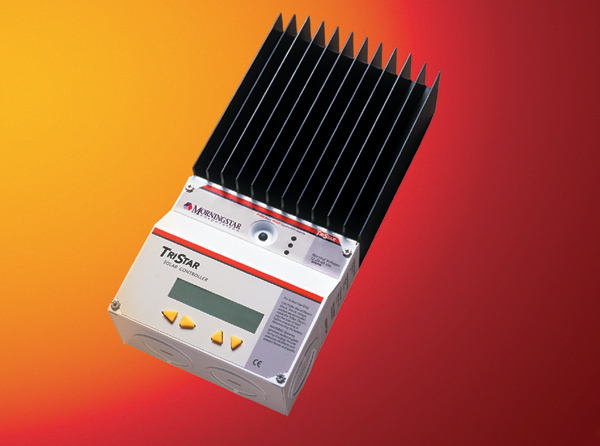

  2. Tip TS-45

Product Code Model Nominal Voltage (V) Descarca Datasheet
LPC00083 SR740TL Tri Star 45 12/24/48







ELECTRICAL
 System voltage ratings 12, 24, 48 Vdc
 Current ratings . Battery Charge Control
TS-45: 45 A
TS-60: 60 A
 Current ratings . Load Control
TS-45: 45 A
TS-60: 60 A
 Current ratings . Diversion Charge Control
TS-45: 45 A diversion load
TS-60: 60 A diversion load
 Accuracy 12/24V: ≤ 0.1 % ± 50 mV
 Accuracy 48V: ≤ 0.1 % ± 100 mV

 Min. voltage to operate 9 V
 Max. solar array Voc 125 V
 Max. operating voltage 68 V
 Self-consumption less than 20 mA
 High temp shutdown 95oC disconnect solar
90oC disconnect load / diversion load
70oC reconnect solar / load / diversion load
 Solar high voltage disconnect highest equalization + 0.2V
HVD reconnect 13.0V
 Transient surge protection:
pulse power rating 4500 watts
response < 5 nanosec
BATTERY CHARGING / RTS





  >>>back to top

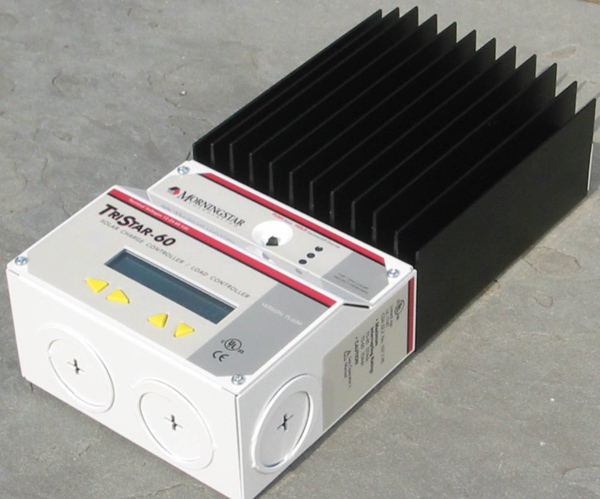

  2. Tip TS - 60





Product Code Model Nominal Voltage (V) Descarca Datasheet
LPC00084 SR990TL Tri Star 60  12/24/48









ELECTRICAL
 System voltage ratings 12, 24, 48 Vdc
 Current ratings . Battery Charge Control
TS-45: 45 A
TS-60: 60 A
 Current ratings . Load Control
TS-45: 45 A
TS-60: 60 A
 Current ratings . Diversion Charge Control
TS-45: 45 A diversion load
TS-60: 60 A diversion load
 Accuracy 12/24V: ≤ 0.1 % ± 50 mV
 Accuracy 48V: ≤ 0.1 % ± 100 mV

 Min. voltage to operate 9 V
 Max. solar array Voc 125 V
 Max. operating voltage 68 V
 Self-consumption less than 20 mA
 High temp shutdown 95oC disconnect solar
90oC disconnect load / diversion load
70oC reconnect solar / load / diversion load
 Solar high voltage disconnect highest equalization + 0.2V
HVD reconnect 13.0V
 Transient surge protection:
pulse power rating 4500 watts
response < 5 nanosec
BATTERY CHARGING / RTS





 >>>back to top



  3. Date tehnice



  •  Data sheet
  •  Web remote access
  • TS guide





  >>>back to top
