Controlere
de incarcare XANTREX
(regulatoare
de incarcare pt baterii)
|
|
Dispozitivele
de control a incarcarii se numesc regulatoare de incarcare si
sunt indispensabile in sistemele de energie alternativa.
|
|
1.

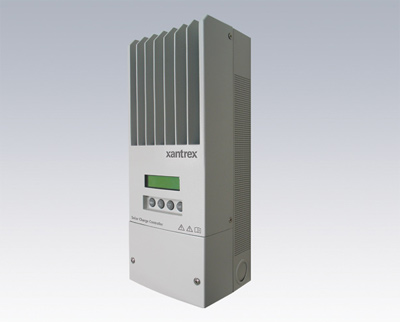

XW MPPT - regulator solar
| Product
Code |
Model |
Nominal
Voltage (V) |
| LPC00116 |
XW-MPPT Solar Charge Controller |
12/24/48 |
|
| Electrical
Specifications |
|
| Nominal
battery voltage |
12,
24, 36, 48, 60 Vdc |
| Maximum
PV array voltage (operating) |
140
Vdc |
| Maximum
PV array open circuit voltage |
150
Vdc |
| Array
short-circuit current |
60
Adc maximum |
| Maximum
and minimum wire size in conduit |
#6
AWG to #14 AWG |
| Total
power consumption while operating |
2.5
W (tare) |
| Charger
regulation method: |
Three-stage
(bulk, absorption, float) |
| |
Two-stage
(bulk, absorption) |
|
|
| Mechanical
Specifications |
|
| Dimensions
(H × W × D) |
14
½ × 5 ¾ × 5 ½” (368 × 146 × 138 mm) |
| Weight
(Controller only) |
10.75
lb (4.8 kg) |
| Weight
(shipping) |
17.6
lb (8 kg) |
| Shipping
dimensions (H × W × D) |
19
× 9 × 9 ¾” (483 × 229 × 350 mm) |
| Mounting |
Vertical
wall mount |
| Standard
warranty |
Five
years |
| Part
number |
865-1030 |
|
|
| Environmental
Specifications |
|
| Enclosure
type |
Indoor,
ventilated, sheet metal chassis with 7/8”and 1” |
| |
(22.22
mm and 27.76 mm) knockouts and aluminum heat-sink |
| Operating
temperature range (full power) |
-4
to 113 °F (-20 to +45 °C) |
| Storage
temperature |
-40
to 185 °F (-40 to +85 °C) |
| Altitude
limit (operating) |
Sea
level to 15,000 feet (4572 m) @ 15 °C |
|
|
| Optional
Accessories |
|
| XW
System Control Panel |
865-1050 |
| XW
Automatic Generator Start |
865-1060 |
| Network
cables: |
|
| 3
feet (0.9 m) |
809-0935 |
| 5
feet (1.5 m) |
809-0936 |
| 7
feet (2.0 m) |
809-0937 |
| 10
feet (3.0 m) |
809-0938 |
| 14
feet (4.3 m) |
809-0939 |
| 25
feet (7.6 m) |
809-0940 |
| 50
feet (15.2 m) |
809-0941 |
| 75
feet (22.9 m) |
809-0942 |
| Network
terminators: |
Male
(two per pack): 809-0901 |
| |
Female
(two per pack): 809-0905 |
|
|
|
|
|
>>>back to
top
|
|
|
|

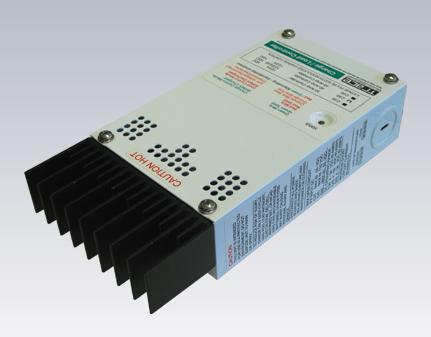

Facilitati
-
Seria
C este oferita in 3 modele , C35, C40 si C60 care pot fi
opereaza in current continu cu valori de 35,40, si 60 A
-
Silentioase,
folosesc modulatia in latime a impulsului (PWM) si
opereaza cu mare eficienta.
-
Incarcare in 3
trepte ( incarcare in plin , absortie, incarcare de
mentinere ) si egalizare de baterie.
-
Protectie
automata la supraincarcare in mod pasiv si active.
-
Protectie la
scurtcircuit si inversarea polaritatii.
-
Acoperire prin
2 ani de garantie
-
Contol prin
microprocessor
-
Ofera
posibilitatea de a selecta intre baterii cu NiCa, baterii
cu acid, cu gel sau AGM.
|
|
2.
Tip C35
| Product
Code |
Model |
Nominal
Voltage (V) |
| LPC00031 |
C35 |
12/24 |
|
| |
Electrical
Specifications |
| |
Voltage
Configurations |
|
12
and 24 VDC |
| |
Max.
PV Open Circuit Array Voltage |
|
55
VDC |
| |
Charging
/ Load Current (at 25 °C) |
|
35
amps DC |
| |
Max.
Peak current |
|
85
amps |
| |
Max.
Voltage Drop through Controller |
|
0.30
volts |
| |
Typical
Operating Consumption |
|
15
ma |
| |
Typical
Idle Consumption |
|
3
ma |
| |
Recommended
Breaker Size |
|
45
amps |
| |
Recommended
Wire Size |
|
#8
AWG |
| |
Lead
Acid Battery Settings |
|
Adjustable |
| |
NiCad
Battery Settings |
|
Adjustable |
| |
Load
Control Mode |
|
Low
Voltage Reconnect - Adjustable (sticker provided with
unit) all models |
| |
|
|
Low
Voltage Disconnect - User selectable manual or
automatic reconnection - includes warning flash before
disconnect and provides a one time, user selectable
grace period) all models |
| |
General
Specifications |
| |
Specified
Temperature Range |
|
32°
F to 104° F (0° C to 40° C) |
| |
Enclosure
Type |
|
Indoor,
ventilated, powder coated steel with 3/4" and
1" knockouts |
| |
Unit
Weight |
|
2.5
lb (1.2 kg) |
| |
Shipping
Weight |
|
3.0
lb (1.4 kg) |
| |
Dimensions
(H x W x D) |
|
8.0
x 5.0 x 2.5" (20.3 x 17.8 x 6.4 cm) |
| |
Shipping
Dimensions (H x W x D) |
|
12.4
x 7 x 2.5" (31.5 x 17.8 x 6.4 cm) |
| |
Mounting |
|
Vertical
wall mount - indoor only |
| |
Altitude
- Operating |
|
15,000'
(4,572 m) |
| |
Altitude
- Non-Operating |
|
50,000'
(15,240 m) |
| |
Warranty |
|
Two
years |
| |
Part
Numbers |
|
C5,
C40, C60 - Controllers |
| |
|
|
CM
- Front Display Panel |
| |
|
|
CM/R-50,
CM/R-100 - Remote Display Panel |
| |
|
|
BTS
- Battery temperature sensor |
| |
|
|
|
|
>>>back to
top
|
|
3.
Tip C40
|
|
Product Code
|
Model
|
Nominal
Voltage (V)
|
|
LPC00032
|
C40
|
12/24
|
|
|
| |
Electrical
Specifications |
| |
Voltage
Configurations |
|
12,
24 and 48 VDC |
| |
Max.
PV Open Circuit Array Voltage |
|
125
VDC |
| |
Charging
/ Load Current (at 25 °C) |
|
40
amps DC |
| |
Max.
Peak current |
|
85
amps |
| |
Max.
Voltage Drop through Controller |
|
0.30
volts |
| |
Typical
Operating Consumption |
|
15
ma |
| |
Typical
Idle Consumption |
|
3
ma |
| |
Recommended
Breaker Size |
|
50
amps |
| |
Recommended
Wire Size |
|
#8
AWG |
| |
Lead
Acid Battery Settings |
|
Adjustable |
| |
NiCad
Battery Settings |
|
Adjustable |
| |
Load
Control Mode |
|
Low
Voltage Reconnect - Adjustable (sticker provided with
unit) all models |
| |
|
|
Low
Voltage Disconnect - User selectable manual or automatic
reconnection - includes warning flash before disconnect
and provides a one time, user selectable grace period)
all models |
| |
General
Specifications |
| |
Specified
Temperature Range |
|
32°
F to 104° F (0° C to 40° C) |
| |
Enclosure
Type |
|
Indoor,
ventilated, powder coated steel with 3/4" and
1" knockouts |
| |
Unit
Weight |
|
3.0
lb (1.4 kg) |
| |
Shipping
Weight |
|
3.5
lb (1.6 kg) |
| |
Dimensions
(H x W x D) |
|
10
x 5 x 2.5" (25.4 x 12.7 x 6.35 cm) |
| |
Shipping
Dimensions (H x W x D) |
|
12.4
x 7 x 2.5" (31.5 x 17.8 x 6.4 cm) |
| |
Mounting |
|
Vertical
wall mount - indoor only |
| |
Altitude
- Operating |
|
15,000'
(4,572 m) |
| |
Altitude
- Non-Operating |
|
50,000'
(15,240 m) |
| |
Warranty |
|
Two
years |
|
|
|
|
|
>>>back to top
|
|
4.
Tip C60
|
| Product
Code |
Model |
Nominal
Voltage (V) |
| LPC00033 |
C60 |
12/24 |
|
|
| |
Electrical
Specifications |
| |
Voltage
Configurations |
|
12
and 24 VDC |
| |
Max.
PV Open Circuit Array Voltage |
|
55
VDC |
| |
Charging
/ Load Current (at 25 °C) |
|
60
amps DC |
| |
Max.
Peak current |
|
85
amps |
| |
Max.
Voltage Drop through Controller |
|
0.30
volts |
| |
Typical
Operating Consumption |
|
15
ma |
| |
Typical
Idle Consumption |
|
3
ma |
| |
Recommended
Breaker Size |
|
60
amps rated at 1000% continuous duty |
| |
Recommended
Wire Size |
|
#6
AWG rated at 90 °C |
| |
Lead
Acid Battery Settings |
|
Adjustable |
| |
NiCad
Battery Settings |
|
Adjustable |
| |
Load
Control Mode |
|
Low
Voltage Reconnect - Adjustable (sticker provided with unit) all
models |
| |
|
|
Low
Voltage Disconnect - User selectable manual or automatic
reconnection - includes warning flash before disconnect and
provides a one time, user selectable grace period) all models |
| |
General
Specifications |
| |
Specified
Temperature Range |
|
32°
F to 104° F (0° C to 40° C) |
| |
Enclosure
Type |
|
Indoor,
ventilated, powder coated steel with 3/4" and 1"
knockouts |
| |
Unit
Weight |
|
|
| |
Shipping
Weight |
|
|
| |
Dimensions
(H x W x D) |
|
|
| |
Shipping
Dimensions (H x W x D) |
|
|
| |
Mounting |
|
Vertical
wall mount - indoor only |
| |
Altitude
- Operating |
|
15,000'
(4,572 m) |
| |
Altitude
- Non-Operating |
|
50,000'
(15,240 m) |
| |
Warranty |
|
Two
years |
| |
|
|
|
|
>>>back to top
|
|
|
|
