Invertoare STUDER AJ - DC/AC



Invertoarele sunt dispozitive care fac conversia curent continu (DC) in curent alternativ (AC) asigurand calitatea frecventei la 50Hz, deci ele fac conversia tensiunii de 12V, 24V sau 48 V, provenita de la baterii, in tensiune 220Vca. In general exista  doua tipuri de invertoare:



-  cu unda perfect sinusoidala (perfomante mult superioare in comparatie cu reteaua conventionala de energie)

-  cu unda sinusoidala modificata (unda este alternativa dar nu este sinusoidala, sunt mai ieftine )

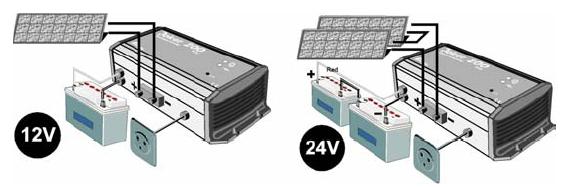

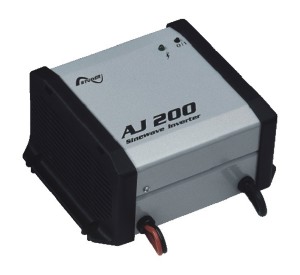

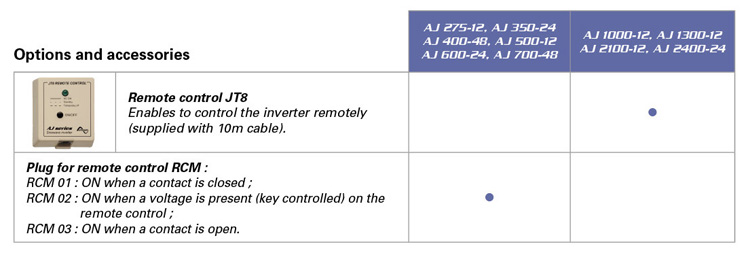

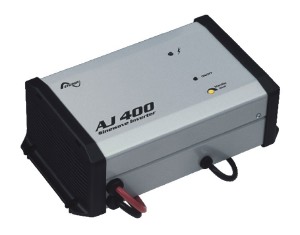

1. Seria  invertoare - AJ 200 & AJ 400





Product Code Model Power (W) Nominal Voltage
LPI00087 Studer AJ 275-12 200 12
LPI00088 Studer AJ 275-12-S 200 12
LPI00089 Studer AJ 350-24 250 24
LPI00090 Studer AJ 350-24-S 250 24
LPI00091 Studer AJ 400-48 250 48
LPI00092 Studer AJ 500-12 400 12
LPI00093 Studer AJ 500-12-S 400 12
LPI00094 Studer AJ 600-24 500 24
LPI00095 Studer AJ 600-24-S 500 24
LPI00096 Studer AJ 700-48 500 48





Model Series AJ 200 Series AJ 400
Continuous power @ 25°C 200VA 300VA
Power 30 min. @ 25°C 275VA 400VA
Power 5 min. @ 25°C 350VA 600VA
Power 5 sec. @ 25°C 450VA 1000VA
Max asymmetrical load 150VA 200VA
Short circuit current 2s (output) 2.3A (4.6A*) 4.6A (9.2A*)
Output voltage True sine 230Vac (120Vac*) 0 /
Frequency 50Hz (60Hz*) ± 0.05% (Crystal control)
Distortion THD (on resistive load) < 5% (@ Pnom.)
Consumption Stand-by ** 0.3W 0.4W
Consumption « ON » @ no load 1.9W 5W
Maximum efficiency 93% 94%
Load detection (Stand-by) 2 W (only with solar option –S)
Overheating protection (+/-5°C) Shut down @ 75 °C – Auto-restart @ 70°C
Overload protection Automatic disconnection with 2 time restart attempt
Short circuit protection Automatic disconnection with 2 time restart attempt
Reverse polarity protection Protected by internal fuse
Back-feeding protection Not protected
Battery deep discharge protection Shut off @ 0.87 x Unom – Automatic restart @ Unom
Over voltage shut down Shut off @ >1.33 x Unom – Automatic restart @
Acoustic warning Before low battery or overheating disconnection
Cable length(Battery / AC out) 1.2m / 1m
Noise < 45 dB (fans)
Operating temperature -20°C up to +50°C
Approx. output power derating -1.5%/°C since +25°C
IP protection index IP 30 conforms to DIN 40050
Forced ventilation From 45°C ± 5°C
Required battery capacity > 5 x Pnom/Unom (recommended value in Ah)
Weight 2.4 kg 2.6 kg
Dimensions 142mm x 163mm x 84mm
Warranty 2 years
EC conformity compliance EN 50081 I/II, EN 50082 I/II, EN 550014 B - 50022, EN 50091-2, EN 60950
IEC 801 II/III/IV, CEI 555, LVD 73/23 EEC, EMC Dir.89/336/EEC, Dir. 95/54/EC





  >>>back to top

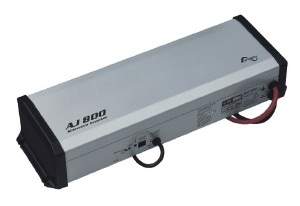

2.Seria de invertoare - AJ 800






Product Code Model Power (W) Nominal Voltage
LPI00097 Studer AJ 1000-12 800 12
LPI00098 Studer AJ 1000-12-S 800 12
LPI00099 Studer AJ 1300-24 1000 24
LPI00100 Studer AJ 1300-24-S 1000 24
Continuous power @ 25°C 800VA
Power 30 min. @ 25°C 1000VA
Power 5 min. @ 25°C 1200VA
Power 5 sec. @ 25°C 2200VA
Max asymmetrical load 500VA
Short circuit current 2s (output) 10A (20A*)
Output voltage regulation True sine 230Vac (120Vac*) 0 / -10%
Frequency 50Hz (60Hz*) ± 0.05% (Crystal control)
Distortion THD (on resistive load) < 5% (@ Pnom. & Uin nom.)
Consumption in « Stand-by » mode 0.3W
Consumption « ON » @ no load 9.0W
Maximum efficiency 93%
Max continuous Cos ϕ 0.1 – 1 up to 800VA
Load detection Adjustable: 1 → 20W
Overheating protection (+/-5°C) Shut down @ 75 °C – Auto-restart @ 70°C
Overload protection Automatic disconnection with 2 time restart attempt
Short circuit protection Automatic disconnection with 2 time restart attempt
Reverse polarity protection Protected by internal 125A fuse
Back-feeding protection Not protected
Battery deep discharge protection Shut off @ 0.87 x Unom – Automatic restart @ Unom
Over voltage shut down Shut off @ >1.33 x Unom – Automatic restart @ < Umax
Acoustic warning Before low battery or overheating disconnection
Cable length (Battery / AC out) 1.5m / 1m
Noise < 45 dB (fans)
Operating temperature -20°C up to +50°C
Approx. output power derating -1.5%/°C since +25°C
IP protection index IP 30 conforms to DIN 40050
Forced ventilation From 45°C ± 5°C
Required battery capacity > 5 x Pnom/Unom (recommended value in Ah)
Weight & dimensions 8.5 kg – 142mm x 428mm x 84mm
Warranty 2 years
EEC conformity compliance EN 50081 I/II, EN 50082 I/II, EN 550014 B - 50022, EN 50091-2, EN 60950
IEC 801 II/III/IV, CEI 555, LVD 73/23 EEC, EMC Dir.89/336/EEC, Dir. 95/54/EC





 >>>back to top

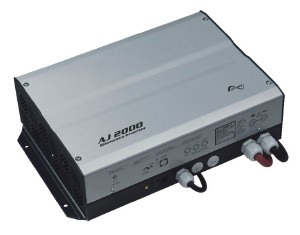

3. Seria de invertoare - AJ 2000





Product Code Model Power (W) Nominal Voltage
LPI00101 Studer AJ 2100-12 2000 12
LPI00102 Studer AJ 2000-12-S 2000 12
LPI00103 Studer AJ 2400-24 2000 24
LPI00104 Studer AJ 2400-24-S 2000 24


Continuous power @ 25°C 2000VA
Power 30 min. @ 25°C 2100VA
Power 5 min. @ 25°C 2450VA
Power 5 sec. @ 25°C 5000VA
Max asymmetrical load 1000VA
Short circuit current 2s (output) 26A (52A*)
Output voltage True sine 230Vac (120Vac*) 0 / -10%
Frequency 50Hz (60Hz*) ± 0.05% (Crystal control)
Distortion THD (on resistive load) < 5% (@ Pnom. & Uin nom.)
Max. output over voltage Max 10ms 1.3x Unom.
Consumption in « Stand-by » mode 0.5W
Consumption « ON » @ no load 13W
Maximum efficiency 92% @ 300VA
Max continuous Cos ϕ 0.1 – 1 up to 2000VA
Load detection Adjustable: 1 → 20W
Overheating protection (+/-5°C) Shut down @ 75 °C – Auto-restart @ 70°C
Overload protection Automatic disconnection with 2 time restart attempt
Short circuit protection Automatic disconnection with 2 time restart attempt
Reverse polarity protection Not protected
Back-feeding protection Not protected
Battery deep discharge protection Shut off @ 0.87 x Unom – Automatic restart @ Unom
Over voltage shut down Shut off @ >1.33 x Unom – Automatic restart @ < Umax
Acoustic warning Before low battery or overheating disconnection
Cable length (Battery / AC out) 1.7m / 1m
Noise < 45 dB (fans)
Operating temperature -20°C up to +50°C
Approx. output power derating -1.5%/°C since +25°C
IP protection index IP 20 conforms to DIN 40050
Forced ventilation From 45°C ± 5°C
Required battery capacity > 5 x Pnom/Unom (recommended value in Ah)
Weight 19 kg
Dimensions 273mm x 399mm x 117mm
Warranty 2 years
EC conformity compliance EN 50081 I/II, EN 50082 I/II, EN 550014 B - 50022, EN 50091-2, EN 60950
IEC 801 II/III/IV, CEI 555, LVD 73/23 EEC, EMC Dir.89/336/EEC, Dir. 95/54/EC
