Invertoare
cu unda sinusoidala modificata |
|
|
|
Click
Aici ! >>>> Invertoare
cu unda sinusoidala pura
|
|
|
|
Aceste
invertoare cu unda sinusoidala modificata low-cost, sunt produse de firma FRARON -
GERMANIA si sunt asamblate in Taiwan. In general aceste
echipamente pot fi utilizate in aplicatii care nu sunt
solicitante. Pentru aplicatii in care regimul de lucru
este continuu, va recomandam sa utilizati numai invertoarele din
categoria profesional care sunt special construite pentru acest
regim.
Invertoarele
sunt dispozitive care fac conversia curent continu (DC) in
curent alternativ (AC) asigurand calitatea frecventei la 50Hz,
deci ele fac conversia tensiunii de 12V, 24V sau 48 V, provenita
de la baterii, in tensiune 220Vca.
Aceste
invertoare fac parte din categoria invertoare auto si invertoare
( inversoare ) de uz general.
|
| |

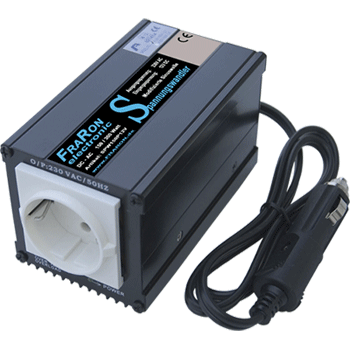

| 1.
Seria invertoare la 12V & 24V |

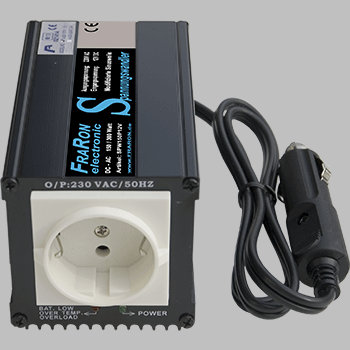

| invertoare
ieftine la pret redus de 150W |
|
  |
| Cod
Produs |
Model |
Putere
(W) |
Tensiune
Nominala |
| LPI00135 |
FR
150-12 |
150 |
12 |
| LPI00145 |
FR
150-24 |
150 |
24 |
|
|
|
|
| Model |
Electrical
Specifications General |
| Putere
Iesire (continu) |
150
W |
Temperatura
admisa |
0°C to 40°C |
| Putere
maxima (de urgenta) |
450 W |
AC
receptacle |
Schuko |
| Tensiune
Iesire |
230 VAC +/-
5% |
Display |
Power ON
& Fault LEDs |
| Frecventa |
50 +/- 3Hz |
Siguranta
interna |
Not user
replaceable |
| Forma
de unda |
Modified
Sine wave |
Dimensiuni
(HxWxL) |
72x72x135 |
| Eficienta
Maxima |
90% |
Greutate |
0,6 Kg |
| Curent
max fara sarcina |
0,36 A |
Certificari |
CE, EMC |
| Tensiune
de intrare min-max |
10-16 DC
(20-32 DC) |
Garantie |
12 luni |
|
|
|
|
|
|
|
Manual model la 12
V ---------- Click! >>> |
|
|
>>>back to
top
|
Manual model la 24
V ---------- Click! >>> |
|
|
|
  |

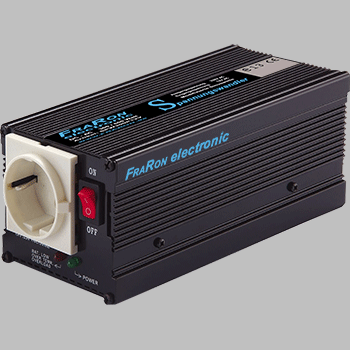

| Cod
Produs |
Model |
Putere
(W) |
Tensiune
Nominala |
| LPI00136 |
FR
300-12 |
300 |
12 |
| LPI00146 |
FR
300-24 |
300 |
24 |
|
|
|
|
| Model |
Electrical
Specifications General |
| Putere
Iesire (continu) |
300
W |
Temperatura
admisa |
0°C to 40°C |
| Putere
maxima (de urgenta) |
600 W |
AC
receptacle |
Schuko |
| Tensiune
Iesire |
230 VAC +/-
5% |
Display |
Power ON
& Fault LEDs |
| Frecventa |
50 +/- 3Hz |
Siguranta
interna |
Not user
replaceable |
| Forma
de unda |
Modified
Sine wave |
Dimensiuni
(HxWxL) |
75x90x163 |
| Eficienta
Maxima |
90% |
Greutate |
0,9 Kg |
| Curent
max fara sarcina |
0,36 A |
Certificari |
CE, EMC |
| Tensiune
de intrare min-max |
10-16 DC |
Garantie |
12 luni |
|
|
|
|
|
|
|
Manual model la 12
V ---------- Click! >>> |
|
|
>>>back to
top
|
Manual model la 24
V ---------- Click! >>> |
|
|
|
  |

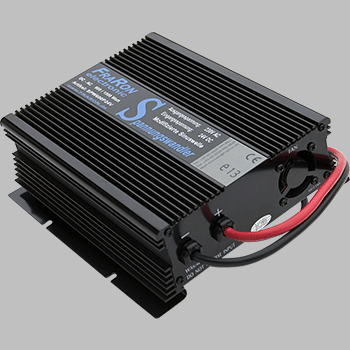

| Cod
Produs |
Model |
Putere
(W) |
Tensiune
Nominala |
| LPI00137 |
FR
600-12 |
600 |
12 |
| LPI00147 |
FR
600-24 |
600 |
24 |
|
|
|
|
| Model |
Electrical
Specifications General |
| Putere
Iesire (continu) |
600
W |
Temperatura
admisa |
0°C to 40°C |
| Putere
maxima (de urgenta) |
1500 W |
AC
receptacle |
Schuko |
| Tensiune
Iesire |
230 VAC +/-
5% |
Display |
Power ON
& Fault LEDs |
| Frecventa |
50 +/- 3Hz |
Siguranta
interna |
Not user
replaceable |
| Forma
de unda |
Modified
Sine wave |
Dimensiuni
(HxWxL) |
65x173x240 |
| Eficienta
Maxima |
90% |
Greutate |
2,1 Kg |
| Curent
max fara sarcina |
0,6 A |
Certificari |
CE, EMC |
| Tensiune
de intrare min-max |
10-16 DC |
Garantie |
12 luni |
|
|
|
|
|
|
|
Manual model la 12
V ---------- Click! >>> |
|
|
>>>back to
top
|
Manual model la 24
V ---------- Click! >>> |
|
|
|
|
| Cod
Produs |
Model |
Putere
(W) |
Tensiune
Nominala |

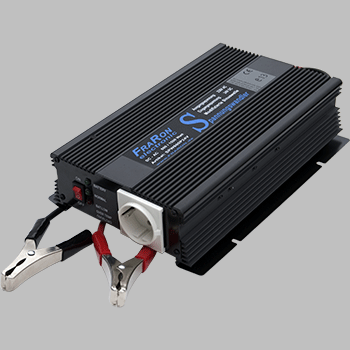

| LPI00138 |
FR
600-12i |
600 |
12 |
| LPI00148 |
FR
600-24i |
600 |
24 |
| -
invertorul contine regulator de incarcare pentru acumulatori cu
Gel si acid |
| Model |
Electrical
Specifications General |
| Putere
Iesire (continu) |
600
W |
Temperatura
admisa |
0°C to 40°C |
| Putere
maxima (de urgenta) |
600 W |
AC
receptacle |
Schuko |
| Tensiune
Iesire |
230 VAC +/-
5% |
Display |
Power ON
& Fault LEDs |
| Frecventa |
50 +/- 3Hz |
Siguranta
interna |
Not user
replaceable |
| Forma
de unda |
Modified
Sine wave |
Dimensiuni
(HxWxL) |
65x173x295 |
| Eficienta
Maxima |
90% |
Greutate |
2,9 Kg |
| Curent
max fara sarcina |
0,5 A |
Certificari |
CE, EMC |
| Curent
incarcare la 12V |
3
Amperi |
Curent
incarcare la 24V |
1,5 Amperi |
| Tensiune
de intrare min-max |
10-16 DC |
Garantie |
12 luni |
|
|
|
|
|
|
|
Manual model la 12
V ---------- Click! >>> |
|
|
>>>back to
top
|
Manual model la 24
V ---------- Click! >>> |
|
|
|
 |
| Cod
Produs |
Model |
Putere
(W) |
Tensiune
Nominala |

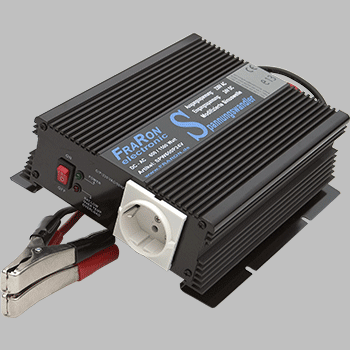

| LPI00139 |
FR
800-12 |
800 |
12 |
| LPI00149 |
FR
800-24 |
800 |
24 |
|
|
|
|
| Model |
Electrical
Specifications General |
| Putere
Iesire (continu) |
800
W (30 min - 900W) |
Temperatura
admisa |
0°C to 40°C |
| Putere
maxima (de urgenta) |
1500 W |
AC
receptacle |
Schuko |
| Tensiune
Iesire |
230 VAC +/-
5% |
Display |
Power ON
& Fault LEDs |
| Frecventa |
50 +/- 3Hz |
Siguranta
interna |
Not user
replaceable |
| Forma
de unda |
Modified
Sine wave |
Dimensiuni
(HxWxL) |
65x173x280 |
| Eficienta
Maxima |
90% |
Greutate |
2,6 Kg |
| Curent
max fara sarcina |
0,6 A |
Certificari |
CE, EMC |
| Tensiune
de intrare min-max |
10-16 DC |
Garantie |
12 luni |
|
|
|
|
|
|
|
Manual model la 12
V ---------- Click! >>> |
|
|
>>>back to
top
|
Manual model la 24
V ---------- Click! >>> |
|
|
  |

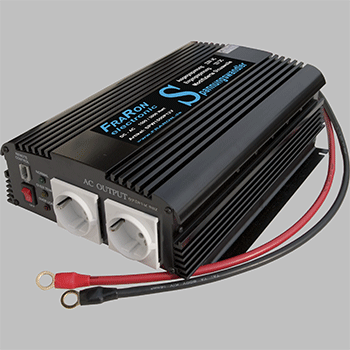

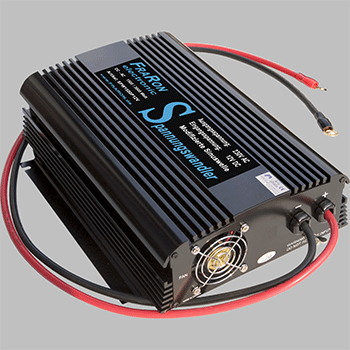

| Cod
Produs |
Model |
Putere
(W) |
Tensiune
Nominala |
| LPI00140 |
FR
1000-12 |
1000 |
12 |
| LPI00150 |
FR
1000-24 |
1000 |
24 |
| -
modelul de mai jos contine regulator de incarcare pentru acumulatori cu
Gel si acid |
| LPI00190 |
FR
1000-12i |
1000 |
12 |
| LPI00191 |
FR
1000-24i |
1000 |
24 |
|
|
|
|
| Model |
Electrical
Specifications General |
| Putere
Iesire (continu) |
1000
W (30min. - 1200W) |
Temperatura
admisa |
0°C to 40°C |
| Putere
maxima (de urgenta) |
2000 W |
AC
receptacle |
Schuko |
| Tensiune
Iesire |
230 VAC +/-
5% |
Display |
Power ON
& Fault LEDs |
| Frecventa |
50 +/- 3Hz |
Siguranta
interna |
Not user
replaceable |
| Forma
de unda |
Modified
Sine wave |
Dimensiuni
(HxWxL) |
85x210x310 |
| Eficienta
Maxima |
90% |
Greutate |
3,3 Kg |
| Curent
max fara sarcina |
0,4 A |
Certificari |
CE, EMC |
| Curent
incarcare la 12V |
3,5 Amperi |
Curent
incarcare la 24V |
2 Amperi |
| Tensiune
de intrare min-max |
10-16 DC |
Garantie |
12 luni |
|
|
|
|
|
|
|
Manual model la 12
V ---------- Click! >>> |
|
|
>>>back to
top
|
Manual model la 24
V ---------- Click! >>> |
|
|
|
|
|
| Cod
Produs |
Model |
Putere
(W) |
Tensiune
Nominala |
| LPI00141 |
FR
1200-12 |
1200 |
12 |
| LPI00151 |
FR
1200-24 |
1200 |
24 |
|
|
|
|
| Model |
Electrical
Specifications General |
| Putere
Iesire (continu) |
1200
W (30 min . -1500W) |
Temperatura
admisa |
0°C to 40°C |
| Putere
maxima (de urgenta) |
2400 W |
AC
receptacle |
Schuko |
| Tensiune
Iesire |
230 VAC +/-
5% |
Display |
Power ON
& Fault LEDs |
| Frecventa |
50 +/- 3Hz |
Siguranta
interna |
Not user
replaceable |
| Forma
de unda |
Modified
Sine wave |
Dimensiuni
(HxWxL) |
85x210x310 |
| Eficienta
Maxima |
90% |
Greutate |
3,9 Kg |
| Curent
max fara sarcina |
0,4 A |
Certificari |
CE, EMC |
| Tensiune
de intrare min-max |
10-16 DC |
Garantie |
12 luni |
|
|
|
|
|
|
|
Manual model la 12
V ---------- Click! >>> |
|
|
>>>back to
top
|
Manual model la 24
V ---------- Click! >>> |
|
|
|
|
| Cod
Produs |
Model |
Putere
(W) |
Tensiune
Nominala |
| LPI00142 |
FR
1500-12 |
1500 |
12 |
| LPI00152 |
FR
1500-24 |
1500 |
24 |
|
|
|
|
| Model |
Electrical
Specifications General |
| Putere
Iesire (continu) |
1500
W (30min. - 1700W) |
Temperatura
admisa |
0°C to 40°C |
| Putere
maxima (de urgenta) |
3000 W |
AC
receptacle |
Schuko |
| Tensiune
Iesire |
230 VAC +/-
5% |
Display |
Power ON
& Fault LEDs |
| Frecventa |
50 +/- 3Hz |
Siguranta
interna |
Not user
replaceable |
| Forma
de unda |
Modified
Sine wave |
Dimensiuni
(HxWxL) |
85x210x455 |
| Eficienta
Maxima |
90% |
Greutate |
5,5 Kg |
| Curent
max fara sarcina |
0,4 A |
Certificari |
CE, EMC |
| Tensiune
de intrare min-max |
10-16 DC |
Garantie |
12 luni |
|
|
|
|
|
|
|
Manual model la 12
V ---------- Click! >>> |
|
|
>>>back to
top
|
Manual model la 24
V ---------- Click! >>> |
|
|
|
  |

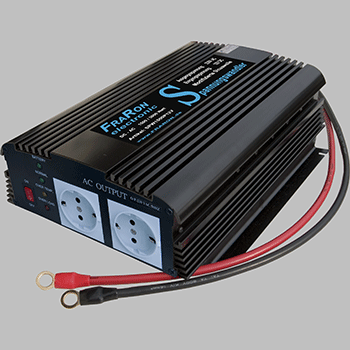

| Cod
Produs |
Model |
Putere
(W) |
Tensiune
Nominala |

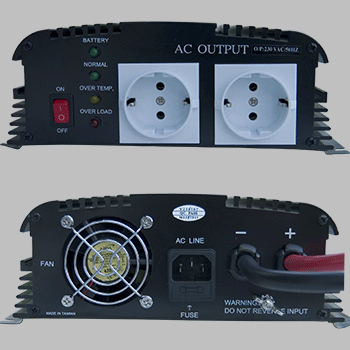

| LPI00143 |
FR
1700-12i |
1700 |
12 |
| LPI00153 |
FR
1700-24i |
1700 |
24 |
| -
invertorul contine regulator de incarcare pentru acumulatori cu
Gel si Acid |
| Model |
Electrical
Specifications General |
| Putere
Iesire (continu) |
1700
W |
Temperatura
admisa |
0°C to 40°C |
| Putere
maxima (de urgenta) |
3500 W |
AC
receptacle |
Schuko |
| Tensiune
Iesire |
230 VAC +/-
5% |
Display |
Power ON
& Fault LEDs |
| Frecventa |
50 +/- 3Hz |
Siguranta
interna |
Not user
replaceable |
| Forma
de unda |
Modified
Sine wave |
Dimensiuni
(HxWxL) |
85x210x550 |
| Eficienta
Maxima |
90% |
Greutate |
6,5 Kg |
| Curent
max fara sarcina |
0,55 A |
Certificari |
CE, EMC |
| Curent
incarcare la 12V |
5 Amperi |
Curent
incarcare la 24V |
2,5 Amperi |
| Tensiune
de intrare min-max |
10-16 DC |
Garantie |
12 luni |
|
|
|
|
|
|
|
Manual model la 12
V ---------- Click! >>> |
|
|
>>>back to
top
|
Manual model la 24
V ---------- Click! >>> |
|
|
|
  |

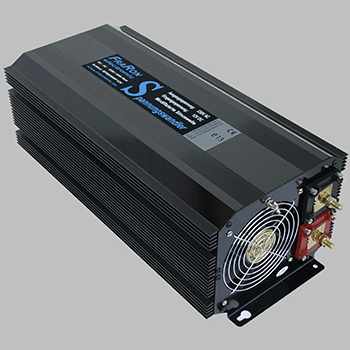

| Cod
Produs |
Model |
Putere
(W) |
Tensiune
Nominala |

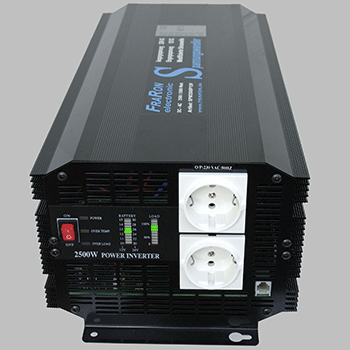

| LPI00144 |
FR
2500-12 |
2500 |
12 |
| LPI00154 |
FR
2500-24 |
2500 |
24 |
|
|
|
|
| Model |
Electrical
Specifications General |
| Putere
Iesire (continu) |
2500
W |
Temperatura
admisa |
0°C to 40°C |
| Putere
maxima (de urgenta) |
5000 W |
AC
receptacle |
Schuko |
| Tensiune
Iesire |
230 VAC +/-
5% |
Display |
Power ON
& Fault LEDs |
| Frecventa |
50 +/- 3Hz |
Siguranta
interna |
Not user
replaceable |
| Forma
de unda |
Modified
Sine wave |
Dimensiuni
(HxWxL) |
159x210x430 |
| Eficienta
Maxima |
90% |
Greutate |
8,7 Kg |
| Curent
max fara sarcina |
0,6 A |
Certificari |
CE, EMC |
| Tensiune
de intrare min-max |
10-16 DC |
Garantie |
12 luni |
|
|
|
|
|
|
|
Manual model la 12
V ---------- Click! >>> |
|
|
>>>back to
top
|
Manual model la 24
V ---------- Click! >>> |
|
|
|
|
| Cod
Produs |
Model |
Putere
(W) |
Tensiune
Nominala |
| LPI00177 |
FR
5000-12 |
5000 |
12 |
| LPI00178 |
FR
5000-24 |
5000 |
24 |
|
|
|
|
| Model |
Electrical
Specifications General |
| Putere
Iesire (continu) |
5000
W |
Temperatura
admisa |
0°C to 40°C |
| Putere
maxima (de urgenta) |
10000 W
(25ms) |
AC
receptacle |
Schuko |
| Tensiune
Iesire |
230 VAC +/-
5% |
Display |
Power ON
& Fault LEDs |
| Frecventa |
50 +/- 3Hz |
Siguranta
interna |
Not user
replaceable |
| Forma
de unda |
Modified
Sine wave |
Dimensiuni
(HxWxL) |
500x169x152 |
| Eficienta
Maxima |
90% |
Greutate |
10,7 Kg |
| Curent
max fara sarcina |
0,6 A |
Certificari |
CE, EMC |
| Tensiune
de intrare min-max |
10-16 DC |
Garantie |
12 luni |
|
|
|
|
|
|
|
Manual model la 12
V ---------- Click! >>> |
|
|
>>>back to
top
|
Manual model la 24
V ---------- Click! >>> |
|
|
|
|
| |
| >>>back to top |
