| Invertoare
FRARON - DC/AC |
|
|
|
|
|
|
|
Invertoare
cu unda sinusoidala pura |
|
|
|
Click
Aici ! >>>> Invertoare
cu unda sinusoidala modificata
|
|
|
|
Aceste
invertoare cu unda sinusoidala pura si cost redus, sunt produse
de firma FRARON - GERMANIA si sunt asamblate in Taiwan. In
general aceste echipamente pot fi utilizate in aplicatii care nu
sunt solicitante. Pentru aplicatii in care regimul de
lucru este continuu, va recomandam sa utilizati numai
invertoarele din categoria profesional care sunt special
construite pentru acest regim.
Invertoarele
sunt dispozitive care fac conversia curent continu (DC) in
curent alternativ (AC) asigurand calitatea frecventei la 50Hz,
deci ele fac conversia tensiunii de 12V, 24V sau 48 V, provenita
de la baterii, in tensiune 220Vca.
Aceste
invertoare sinusoidale,
sunt oferite ca o solutie ieftina si
devine o alternativa viabila pentru aplicatile de energie
alternativa cu pret redus.
|
|
|

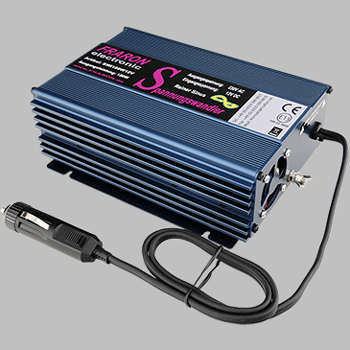

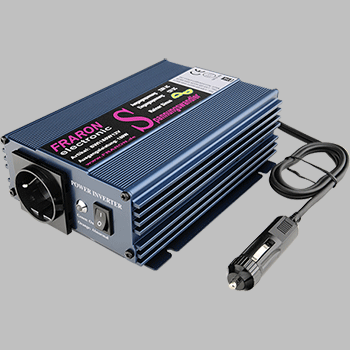

| 1.
Seria invertoare la 12V & 24V |
|
180W |
  |
| Cod
Produs |
Model |
Putere
(W) |
Tensiune
Nominala |
| LPI00271 |
FR
180-12PS |
180 |
12 |
| LPI00272 |
FR
180-24PS |
180 |
24 |
|
| Model |
Electrical
Specifications General |
|
| Putere
Iesire (continu) |
180
W |
Temperatura
admisa |
0°C
to 40°C |
| Putere
maxima (de urgenta) |
300
W |
AC
receptacle |
Schuko |
| Tensiune
Iesire |
230
VAC +/- 5% |
Display |
Power
ON & Fault LEDs |
| Frecventa |
50
+/- 3Hz |
Siguranta
interna |
Not
user replaceable |
| Forma
de unda |
Pure
Sinus |
Dimensiuni
(HxWxL) |
210x147x66 |
| Eficienta
Maxima |
90% |
Greutate |
1,3Kg |
| Curent
max fara sarcina |
0,5
A |
Certificari |
CE,
EMC |
| Tensiune
de intrare min-max |
10-16
DC (20-32 DC) |
Garantie |
12
luni |
|
|

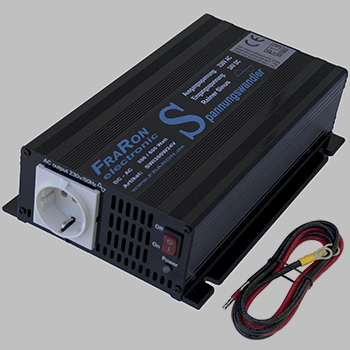

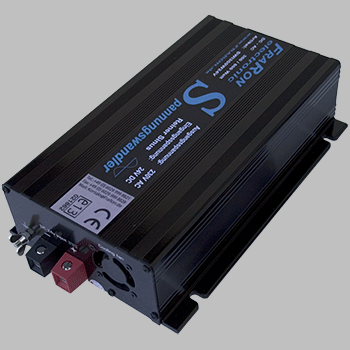

| 300W |
  |
| Cod
Produs |
Model |
Putere
(W) |
Tensiune
Nominala |
| LPI00155 |
FR
300-12PS |
300 |
12 |
| LPI00161 |
FR
300-24PS |
300 |
24 |
|
| Model |
Electrical
Specifications General |
| Putere
Iesire (continu) |
300
W |
Temperatura
admisa |
0°C
to 40°C |
| Putere
maxima (de urgenta) |
600
W |
AC
receptacle |
Schuko |
| Tensiune
Iesire |
230
VAC +/- 5% |
Display |
Power
ON & Fault LEDs |
| Frecventa |
50
+/- 3Hz |
Siguranta
interna |
Not
user replaceable |
| Forma
de unda |
Pure
Sinus |
Dimensiuni
(HxWxL) |
68x170x260 |
| Eficienta
Maxima |
90% |
Greutate |
2,25
Kg |
| Curent
max fara sarcina |
0,6
A |
Certificari |
CE,
EMC |
| Tensiune
de intrare min-max |
10-16
DC (20-32 DC) |
Garantie |
12
luni |
|
|
|
Manual model la 12
V ---------- Click! >>> |
|
|
>>>back to
top
|
Manual model la 24
V ---------- Click! >>> |
|
|
  |
| Cod
Produs |
Model |
Putere
(W) |
Tensiune
Nominala |

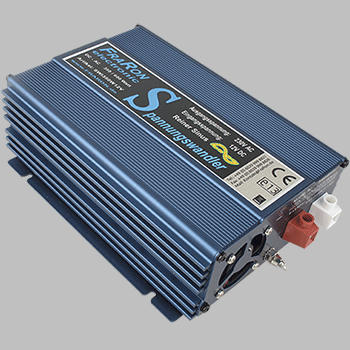

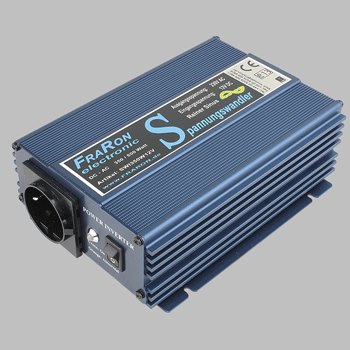

| LPI00273 |
FR 350-12PS |
350 |
12 |
| LPI00274 |
FR
350-24PS |
350 |
24 |
|
| Model |
Electrical
Specifications General |
|
| Putere
Iesire (continu) |
300
W ( 5min -350W) |
Temperatura
admisa |
0°C to 40°C |
| Putere
maxima (de urgenta) |
600 W |
AC
receptacle |
Schuko |
| Tensiune
Iesire |
230 VAC +/-
5% |
Display |
Power ON
& Fault LEDs |
| Frecventa |
50 +/- 3Hz |
Siguranta
interna |
Not user
replaceable |
| Forma
de unda |
Pure Sinus |
Dimensiuni
(HxWxL) |
68x170x260 |
| Eficienta
Maxima |
90% |
Greutate |
1,4 Kg |
| Curent
max fara sarcina |
0,6
A |
Certificari |
CE, EMC |
| Tensiune
de intrare min-max |
10-16 DC
(20-32 DC) |
Garantie |
12 luni |
|
| |
  |
| Cod
Produs |
Model |
Putere
(W) |
Tensiune
Nominala |

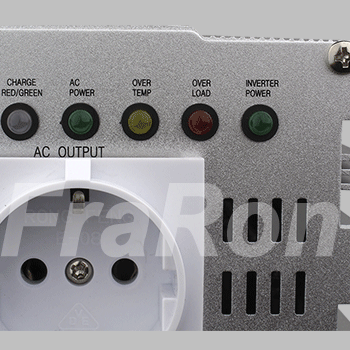

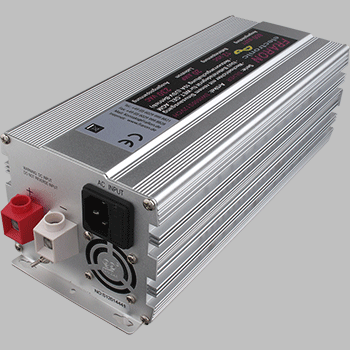

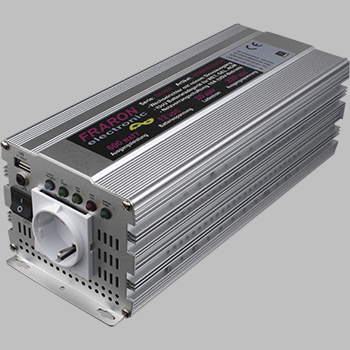

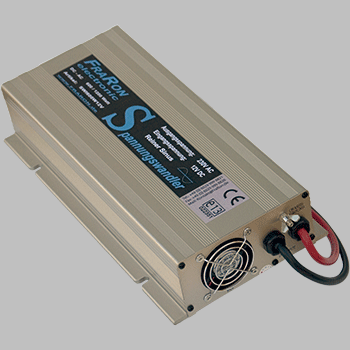

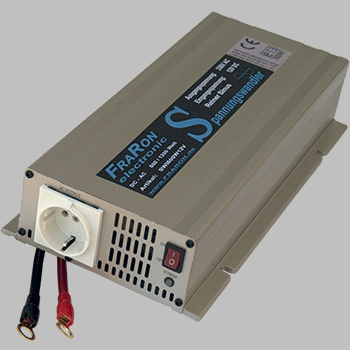

| LPI00141 |
FR
600-12iPS silver |
600 |
12 |
|

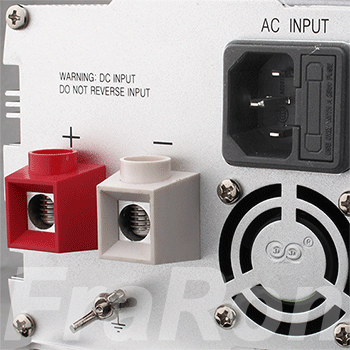

| Versiunea
LPI00141
dispune de redresor incorporat de 20A ceea ce permite utilizarea
lor in sisteme backup. |
|
| Model |
Electrical
Specifications General |
|
| Putere
Iesire (continu) |
600
W |
Temperatura
admisa |
0°C
to 40°C |
| Putere
maxima (de urgenta) |
1200
W |
AC
receptacle |
Schuko |
| Tensiune
Iesire |
230
VAC +/- 5% |
Display |
Power
ON & Fault LEDs |
| Frecventa |
50
+/- 3Hz |
Siguranta
interna |
Not
user replaceable |
| Forma
de unda |
Pure
Sinus |
Dimensiuni
(HxWxL) |
300x120x100
mm |
| Eficienta
Maxima |
90% |
Greutate |
2,5
Kg |
| Curent
max fara sarcina |
1:00
AM |
Certificari |
CE,
EMC |
| Tensiune
de intrare min-max |
10-16
DC (20-32 DC) |
Garantie |
12
luni |
|
|
|
|
  |
|
| |
|
|
  |
| Cod
Produs |
Model |
Putere
(W) |
Tensiune
Nominala |

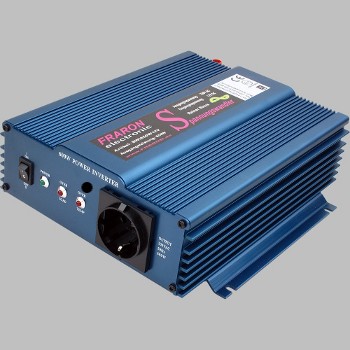

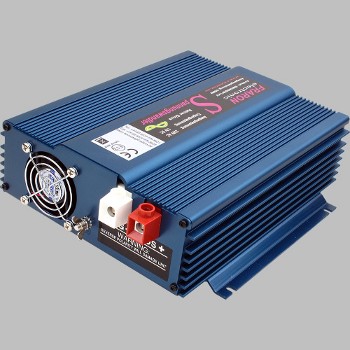

| LPI00227 |
FR
650-12PS |
600 |
12 |
| LPI00228 |
FR
650-24PS |
600 |
24 |
|
|
|
|
| Model |
Electrical
Specifications General |
| Putere
Iesire (15 min ) |
650
W |
Temperatura
admisa |
0°C to 40°C |
| Putere
Iesire (continuu) |
600
W |
Temperatura
admisa |
0°C to 40°C |
| Putere
maxima (de urgenta) |
1200 W |
AC
receptacle |
Schuko |
| Tensiune
Iesire |
230 VAC +/-
5% |
Display |
Power ON
& Fault LEDs |
| Frecventa |
50 +/- 3Hz |
Siguranta
interna |
Not user
replaceable |
| Forma
de unda |
Pure Sinus |
Dimensiuni
(HxWxL) |
70x170x330 |
| Eficienta
Maxima |
90% |
Greutate |
3,6 Kg |
| Curent
max fara sarcina |
0,55 A |
Certificari |
CE, EMC |
| Tensiune
de intrare min-max |
10-16 DC
(20-32 DC) |
Garantie |
12 luni |
|
|
|
Manual model la 12
V ---------- Click! >>> |
|
|
>>>back to
top
|
Manual model la 24
V ---------- Click! >>> |
|
|
  |

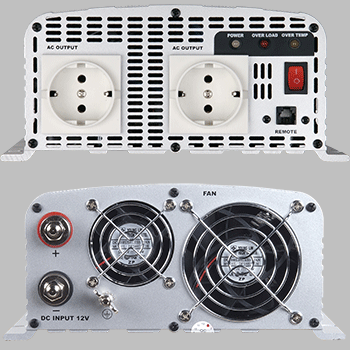

| Cod
Produs |
Model |
Putere
(W) |
Tensiune
Nominala |

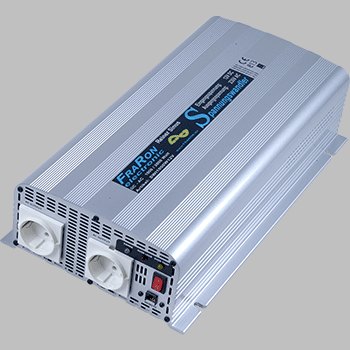

| LPI00157 |
FR
1000-12PS |
1000 |
12 |
| LPI00163 |
FR
1000-24PS |
1000 |
24 |
| |
|
|
|
| Model |
Electrical
Specifications General |
| Putere
Iesire (continu) |
1000
W |
Temperatura
admisa |
0°C
to 40°C |
| Putere
maxima (de urgenta) |
2000
W |
AC
receptacle |
Schuko |
| Tensiune
Iesire |
230
VAC +/- 5% |
Display |
Power
ON & Fault LEDs |
| Frecventa |
50
+/- 3Hz |
Siguranta
interna |
Not
user replaceable |
| Forma
de unda |
Pure
Sinus |
Dimensiuni
(HxWxL) |
103x223x390 |
| Eficienta
Maxima |
90% |
Greutate |
5
Kg |
| Curent
max fara sarcina |
0,8
A |
Certificari |
CE,
EMC |
| Tensiune
de intrare min-max |
10-16
DC (20-32 DC) |
Garantie |
12
luni |
|
|
|
Manual model la 12
V ---------- Click! >>> |
|
|
>>>back to
top
|
Manual model la 24
V ---------- Click! >>> |
|
|
silver |
  |
| Cod
Produs |
Model |
Putere
(W) |
Tensiune
Nominala |
| LPI00290 |
FR
1000-24PS
silver |
1000 |
24 |
| LPI00291 |
FR
1000-12iPS silver |
1000 |
12 |
|

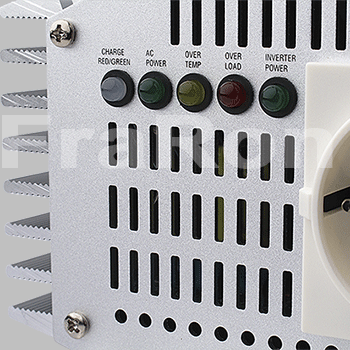

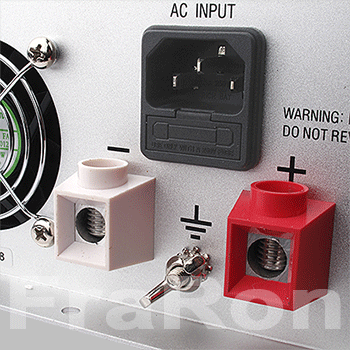

Versiunea
LPI00291 dispune de redresor incorporat de 20A ceea ce permite
utilizarea lor in sisteme backup.
|
| Model |
Electrical
Specifications General |
|
| Putere
Iesire (continu) |
1000
W (max. 15 min - 1200W) |
Temperatura
admisa |
0°C to 40°C |
| Putere
maxima (de urgenta) |
2000 W |
AC
receptacle |
Schuko |
| Tensiune
Iesire |
230 VAC +/-
5% |
Display |
Power ON
& Fault LEDs |
| Frecventa |
50 +/- 3Hz |
Siguranta
interna |
Not user
replaceable |
| Forma de
unda |
Pure Sinus |
Dimensiuni
(HxWxL) |
83x236x395 |
| Eficienta
Maxima |
90% |
Greutate |
4,6 Kg |
| Curent max
fara sarcina |
1:00
AM |
Certificari |
CE, EMC |
| Tensiune de
intrare min-max |
10-16 DC
(20-32 DC) |
Garantie |
12 luni |
  |
|
|
|
|
|
|
|
Manual model la 12
V ---------- Click! >>> |
|
|
>>>back to
top
|
|
|
|
|
  |

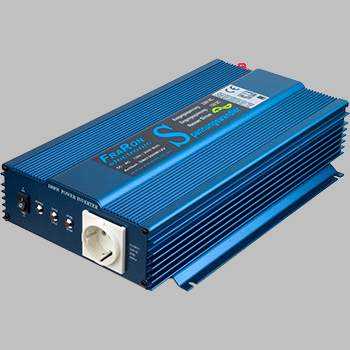

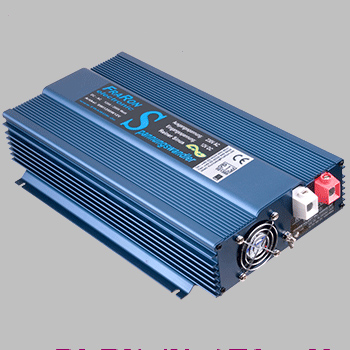

| Cod
Produs |
Model |
Putere
(W) |
Tensiune
Nominala |
| LPI00158 |
FR
1200-12PS |
1200 |
12 |
| LPI00164 |
FR
1200-24PS |
1200 |
24 |
|
|
|
|
| Model |
Electrical
Specifications General |
| Putere
Iesire (continu) |
1000
W (max. 15 min - 1200W) |
Temperatura
admisa |
0°C to 40°C |
| Putere
maxima (de urgenta) |
2000 W |
AC
receptacle |
Schuko |
| Tensiune
Iesire |
230 VAC +/-
5% |
Display |
Power ON
& Fault LEDs |
| Frecventa |
50 +/- 3Hz |
Siguranta
interna |
Not user
replaceable |
| Forma
de unda |
Pure Sinus |
Dimensiuni
(HxWxL) |
83x236x395 |
| Eficienta
Maxima |
90% |
Greutate |
4,6 Kg |
| Curent
max fara sarcina |
1 A |
Certificari |
CE, EMC |
| Tensiune
de intrare min-max |
10-16 DC
(20-32 DC) |
Garantie |
12 luni |
|
|
|
Manual model la 12
V ---------- Click! >>> |
|
|
>>>back to
top
|
Manual model la 24
V ---------- Click! >>> |
|
|
|
|
|
|
|
Manual model la 12
V ---------- Click! >>> |
|
|
>>>back to
top
|
Manual model la 24
V ---------- Click! >>> |
|
|
|
|
|
| Cod
Produs |
Model |
Putere
(W) |
Tensiune
Nominala |

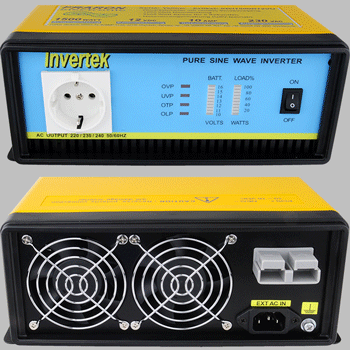

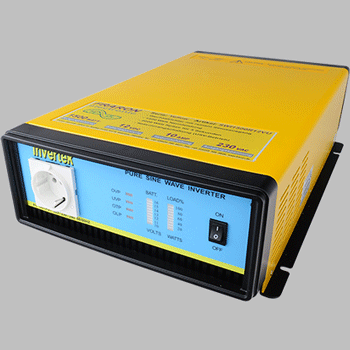

| LPI00159 |
FR
1500-12iPS silver |
1500 |
12 |
| LPI00165 |
FR
1500-24iPS silver |
1500 |
24 |
|
| Versiunea
LPI00159 dispune de redresor incorporat de 20A ceea ce permite
utilizarea lor in sisteme backup. |
|
| Model |
Electrical
Specifications General |
|
| Putere
Iesire (continu) |
1500
W |
Temperatura
admisa |
0°C to 40°C |
| Putere
maxima (de urgenta) |
3000 W |
AC
receptacle |
Schuko |
| Tensiune
Iesire |
230 VAC +/-
5% |
Display |
Power ON
& Fault LEDs |
| Frecventa |
50 +/- 3Hz |
Siguranta
interna |
Not user
replaceable |
| Forma
de unda |
Pure Sinus |
Dimensiuni
(HxWxL) |
520x200x90 |
| Eficienta
Maxima |
90% |
Greutate |
5,2 Kg |
| Curent
max fara sarcina |
1:00
AM |
Certificari |
CE, EMC |
| Tensiune
de intrare min-max |
10-16 DC
(20-32 DC) |
Garantie |
12 luni |
|
|
|
|
|
|
|
|
  |
| Cod
Produs |
Model |
Putere
(W) |
Tensiune
Nominala |

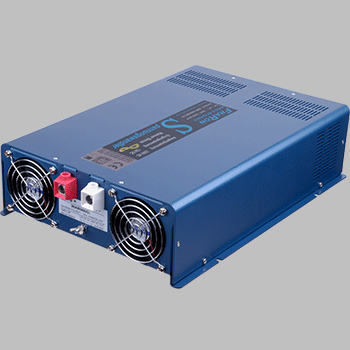

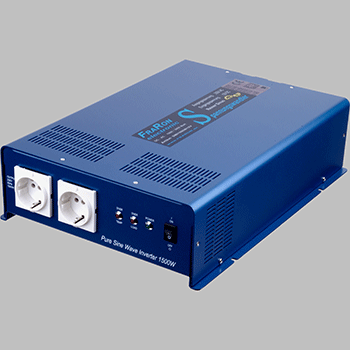

| LPI00160 |
FR
1800-12PS |
1800 |
12 |
| LPI00166 |
FR
1800-24PS |
1800 |
24 |
|
|
|
|
| Model |
Electrical
Specifications General |
| Putere
Iesire (continu) |
1500
W (max. 15 min - 1800W) |
Temperatura
admisa |
0°C to 40°C |
| Putere
maxima (de urgenta) |
3000 W |
AC
receptacle |
Schuko |
| Tensiune
Iesire |
230 VAC +/-
5% |
Display |
Power ON
& Fault LEDs |
| Frecventa |
50 +/- 3Hz |
Siguranta
interna |
Not user
replaceable |
| Forma
de unda |
Pure Sinus |
Dimensiuni
(HxWxL) |
100x283x415 |
| Eficienta
Maxima |
90% |
Greutate |
6,7 Kg |
| Curent
max fara sarcina |
1 A |
Certificari |
CE, EMC |
| Tensiune
de intrare min-max |
10-16 DC
(20-32 DC) |
Garantie |
12 luni |
|
|
|
Manual model la 12
V ---------- Click! >>> |
|
|
>>>back to
top
|
Manual model la 24
V ---------- Click! >>> |
|
| |
  |
| Cod
Produs |
Model |
Putere
(W) |
Tensiune
Nominala |
| LPI00336 |
FR
2000-12iPS |
2000 |
12 |
| LPI00337 |
FR
2000-24iPS |
2000 |
24 |
|
|
|
|
| Model |
Electrical
Specifications General |
|
| Putere
Iesire (continu) |
2000W
(max. 5sec - 2500W) |
Temperatura
admisa |
0°C to 40°C |
| Putere
maxima (de urgenta) |
2500 W |
AC
receptacle |
Schuko |
| Tensiune
Iesire AC |
230 VAC +/-
5% |
Display |
Power ON
& Fault LEDs |
| Tensiune
Intrare AC |
230VAC |
Siguranta
interna |
Not user
replaceable |
| Frecventa |
50 +/- 3Hz |
Dimensiuni
(HxWxL) |
450x285x120 |
| Forma
de unda |
Pure Sinus |
Greutate |
7 Kg |
| Eficienta
Maxima |
90% |
Certificari |
CE, EMC |
| Curent
max fara sarcina |
1:00
AM |
Garantie |
12 luni |
| Tensiune
de intrare min-max |
10-16 DC
(20-32 DC) |
|
|
  |
|
|
|
|
|
|
|
Manual model la 12
V ---------- Click! >>> |
|
|
>>>back to
top
|
|
|
| |
|

|
| Cod
Produs |
Model |
Putere
(W) |
Tensiune
Nominala |
| LPI00175 |
FR
3000-12iPS |
3000 |
12 |
| LPI00176 |
FR
3000-24iPS |
3000 |
24 |
|
|
|
|
| Model |
Electrical
Specifications General |
| Putere
Iesire (continu) |
3000
W (max. 5sec - 4000W) |
Temperatura
admisa |
0°C to 40°C |
| Putere
maxima (de urgenta) |
4200 W |
AC
receptacle |
Schuko |
| Tensiune
Iesire AC |
230 VAC +/-
5% |
Display |
Power ON
& Fault LEDs |
| Tensiune
Intrare AC |
230VAC |
Siguranta
interna |
Not user
replaceable |
| Frecventa |
50 +/- 3Hz |
Dimensiuni
(HxWxL) |
490x285x185 |
| Forma
de unda |
Pure Sinus |
Greutate |
12 Kg |
| Eficienta
Maxima |
90% |
Certificari |
CE, EMC |
| Curent
max fara sarcina |
1 A |
Garantie |
12
luni |
| Tensiune
de intrare min-max |
10-16 DC
(20-32 DC) |
|
|
|
|
|
Manual model la 12
V ---------- Click! >>> |
|
|
>>>back to
top
|
Manual model la 24
V ---------- Click! >>> |
|
|
|
|
invertoare ieftine la pret redus |
|
|
|
| |
| >>>back to top |
