Invertoare
ISOFOTON - DC/AC
|
|
Invertoarele
sunt dispozitive care fac conversia curent continu (DC) in
curent alternativ (AC) asigurand calitatea frecventei la 50Hz,
deci ele fac conversia tensiunii de 12V, 24V sau 48 V, provenita
de la baterii, in tensiune 220Vca. In general exista doua
tipuri de invertoare: -
cu unda perfect sinusoidala (perfomante mult superioare in
comparatie cu reteaua conventionala de energie) -
cu unda sinusoidala modificata (unda este alternativa dar nu
este sinusoidala, sunt mai ieftine )
|
|
1.

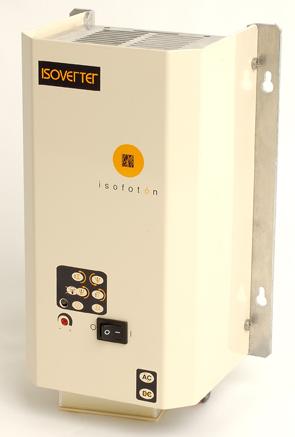

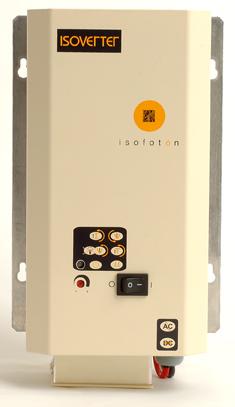

Seria invertoare - ISOVERTER 250
|
|
|
|
|
| Product
Code |
LPI00070 |
LPI00071 |
| Model |
ISOVERTER
250/12 |
ISOVERTER
250/24 |
| Length |
220 mm |
220 mm |
| Width |
140 mm |
140 mm |
| Depth |
95 mm |
95 mm |
| Weight |
3,5 kg |
3,5 kg |
|
| Output
waveform |
Pure sine wave |
Pure sine wave |
| Nominal
input voltage |
12 V |
24 V |
| Input
voltage range |
10 – 16 V |
20 – 36 V |
| Nominal
output power |
250 W |
600 W |
| Nominal
output voltage |
230 or 110 |
230 or 110 |
| Output
voltage variation |
< 5% |
< 5% |
| Nominal
frequency |
50 or 60 Hz |
50 or 60 Hz |
| Frequency
variation |
< 1% |
< 1% |
| Efficiency
with test load |
85% < h < 95% |
85% < h < 95% |
| Harmonic
distortion with resistive load |
< 3 % |
< 3 % |
| Stand-by
start/stop |
Adjustable 0 - 60W |
Adjustable 0 - 60W |
| Peak
power allowed |
300 W (3 minutes) |
300 W (3 minutes) |
|
400 (1 minutes) |
400 (1 minutes) |
| > 400 (3 seconds) |
> 400 (3 seconds) |
| Autoconsumption |
< 50 mA |
< 50 mA |
|
|
>>>back to
top
|
|

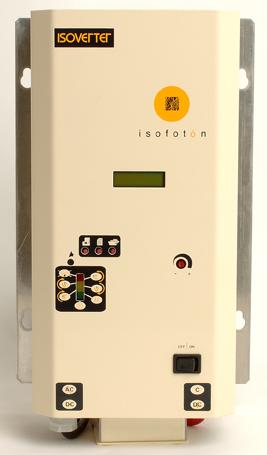

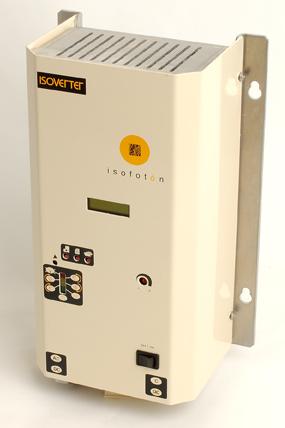

2.Seria
de invertoare - ISOVERTER 600
|
|
|
|
|
| Product
Code |
LPI00063 |
LPI00064 |
| Model |
ISOVERTER 600/12 |
ISOVERTER 600/24 |
| Length |
315 mm |
315 mm |
| Width |
192 mm |
192 mm |
| Depth |
118 mm |
118 mm |
| Weight |
7 kg |
7 kg |
|
| Output
waveform |
Pure sine wave |
Pure sine wave |
| Nominal
input voltage |
12 V |
24 V |
| Input
voltage range |
10 – 16 V |
20 – 36 V |
| Nominal
output power |
600 W |
600 W |
| Nominal
output voltage |
230 or 110 |
230 or 110 |
| Output
voltage variation |
£ 5% |
£ 5% |
| Nominal
frequency |
50 or 60 Hz |
50 or 60 Hz |
| Frequency
variation |
< 1% |
< 1% |
| Efficiency
with test load |
85% < h < 95% |
85% < h < 95% |
| Harmonic
distortion with resistive load |
< 3 % |
< 3 % |
| Stand-by
start/stop |
Adjustable 0 - 60W |
Adjustable 0 - 60W |
| Peak
power allowed |
720 W (10 minutes) |
720 W (10 minutes) |
|
900 (60 seconds) |
900 (60 seconds) |
| > 960 (3 seconds) |
> 960 (3 seconds) |
| Autoconsumption |
< 75 mA |
< 75 mA |
|
|
>>>back to top
|
|
3.
Seria de invertoare - ISOVERTER 1500
|
|
|
|
|
| Product
Code |
LPI00065 |
LPI00066 |
| Model |
ISOVERTER 1500/12 |
ISOVERTER 1500/24 |
| Length |
460 mm |
460 mm |
| Width |
255 mm |
255 mm |
| Depth |
130 mm |
130 mm |
| Weight |
15 Kg |
15 Kg |
|
| Output
waveform |
Pure sinusoidal |
Pure sinusoidal |
| Nominal
input voltage |
12 V |
24 V |
| Input
voltage range |
10 – 16 V |
20 – 36 V |
| Nominal
output power |
1500 W |
1500 W |
| Nominal
output voltage |
230 or 110 V |
230 or 110 V |
| Output
voltage variation |
£ 5% |
£ 5% |
| Nominal
frequency |
50 or 60 Hz |
50 or 60 Hz |
| Frequency
variation |
£ 1% |
£ 1% |
| Efficiency
with test load |
85% < h < 95% |
85% < h < 95% |
| Harmonic
distortion with resistive load |
£ 3 % |
£ 3 % |
| Stand-by
start/stop |
Adjustable 0 - 60 W |
Adjustable 0 - 60 W |
| Peak
power allowed |
1800 W (10 minutes) |
1800 W (10 minutes) |
|
2250 W (60 seconds) |
2250 W (60 seconds) |
| > 2400 W (3 seconds) |
> 2400 W (3 seconds) |
| Autoconsumption |
< 75 mA |
< 75 mA |
|
|
>>>back to top
|
|
4.
Seria de invertoare - ISOVERTER 2000, 3000
|
|
|
| Product
Code |
LPI00067 |
LPI00068 |
LPI00069 |
| Model |
ISOVERTER 2000/12 |
ISOVERTER 3000/24 |
ISOVERTER 3000/48 |
| Length |
535 mm |
535 mm |
535 mm |
| Width |
285 mm |
285 mm |
285 mm |
| Depth |
178 mm |
178 mm |
178 mm |
| Weight |
25 Kg |
25 Kg |
25 Kg |
|
| Output
waveform |
Pure sinusoidal |
Pure sinusoidal |
Pure sinusoidal |
| Nominal
input voltage |
12 V |
24 V |
48 V |
| Input
voltage range |
10 – 16 V |
20 – 32 V |
40 – 64 V |
| Nominal
output power |
2000 W |
3000 W |
3000 W |
| Nominal
output voltage |
230 or 110 V |
230 or 110 V |
230 or 110 V |
| Output
voltage variation |
£ 5% |
£ 5% |
£ 5% |
| Nominal
frequency |
50 or 60 Hz |
50 or 60 Hz |
50 or 60 Hz |
| Frequency
variation |
£ 1% |
£ 1% |
£ 1% |
| Efficiency
with test load |
85% < h < 95% |
85% < h < 95% |
85% < h < 95% |
| Harmonic
distortion with resistive load |
£ 3 % |
£ 3 % |
£ 3 % |
| Stand-by
start/stop |
Adjustable 0 - 60 W |
Adjustable 0 - 60 W |
Adjustable 0 - 60 W |
| Peak
power allowed |
2400 W (10 minutes) |
3600 W (10 minutes) |
3600 W (10 minutes) |
|
3000 W (60 seconds) |
4500 W (60 seconds) |
4500 W (60 seconds) |
| 4000 W (2 seconds) |
6000 W (2 seconds) |
6000 W (2 seconds) |
| Autoconsumption |
< 75 mA |
< 75 mA |
< 75 mA |
|
|
|
|
