Invertoare LATRONICS - DC/AC



Invertoarele sunt dispozitive care fac conversia curent continu (DC) in curent alternativ (AC) asigurand calitatea frecventei la 50Hz, deci ele fac conversia tensiunii de 12V, 24V sau 48 V, provenita de la baterii, in tensiune 220Vca. In general exista  doua tipuri de invertoare:



-  cu unda perfect sinusoidala (perfomante mult superioare in comparatie cu reteaua conventionala de energie)

-  cu unda sinusoidala modificata (unda este alternativa dar nu este sinusoidala, sunt mai ieftine )







1. Seria  invertoare - LS 400





Model LS-412 LS-524 LS-548
Product Code LPI00072 LPI00073 LPI00074
Nominal Battery Voltage 12 V 24 V 48 V
Continuous Power 400 W 500 W 500 W
½ Hour Rating 450 W 600 W 600 W
Surge Rating (5 seconds) 1400 W 2000 W 2000 W
Input Voltage Range 10.5-17 V 21-34 V 42-68 V
Instantaneous Shutdown 9 V 18 V 36 V
Standby Current 22 mA 18 mA 17 mA
Inverter ON – no load 0.42 A 0.31 A 0.18 A
Peak Efficiency 90% 92% 92%
Weight 4.5 Kg 4.7 Kg 4.7 Kg

Dimensions 260mm L x 160mm W x 100mm H
Output Voltage 240 V (+/- 4%)
Output Waveform True Sinewave
Total Harmonic Distortion < 4%
Output Frequency 50Hz  (+/- 0.1%)
Power Factor All Conditions
Operating Temperatures -10deg to +50deg
Auto Start Sensitivity 0 - 20 W adjustable
Input/Output Isolation 3500 V
Protection Circuitry Overtemperature/Overload/Short Circuit/Battery Undervoltage/Battery Overvoltage
Battery Leads 1.0m Long with 10mm Mounting Lug
DC Isolation Thermal/Magnetic Circuit Breaker
Output Wiring Single GPO
Chassis Powder Coated 2mm Aluminium
Standards AS2279, AS3000, AS3001, EN55014, & C-Tick
Warranty 2 Years Parts and Labour





  >>>back to top

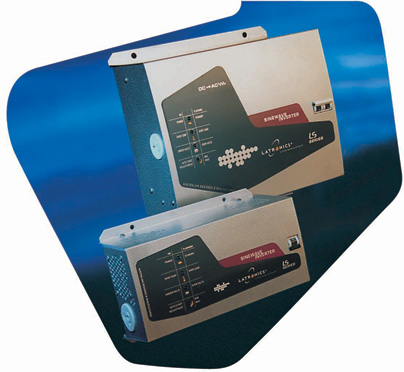

2.Seria de invertoare - LS 1000





Inverter Model LS-812 LS-1024 LS-1048
Product Code LPI00075 LPI00076 LPI00077
Nominal DC Voltage 12 V 24 V 48 V
Continuous Power 800 W 1000 W 1000 W
½ Hour Rating 1000 W 1400 W 1400 W
Surge Rating (5 seconds) 2800 W 3500 W 3500 W
Input Voltage Range 10.5-17 V 21-34 V 42-68 V
Instantaneous Shutdown 9 V 18 V 36 V
Standby Current 37 mA 28 mA 22 mA
Inverter ON – no load 0.45 A 0.25 A 0.19 A
Peak Efficiency 91% 92% 94%
Weight 11 Kg 11 Kg 11 Kg
Dimensions 330 mm L x 296 mm W x 150 mm H
Output Voltage 240Vac +/- 4%
Output Waveform True Sinewave
Total Harmonic Distortion <4%
Output Frequency 50Hz +/- 0.1%
Power Factor All Conditions
Operating Temperature -10° C to +50° C
Autostart Sensitivity 0 – 20 W adjustable
Input/Output Isolation 3500V
Protection Circuitry Overtemperature - Overload/Short Circuit - Battery Undervoltage - Battery Overvoltage
Battery Leads 1.5m long with 10mm mounting lugs
DC Isolation Thermal/Magnetic Circuit Breaker
Output Wiring Single power outlet & junction box
Chassis Powder coated 3mm Aluminium
Standards AS2279, AS3000, AS3001, EN55014, & C-Tick
Warranty 2 Years Parts and Labour



 >>>back to top



3. Seria de invertoare - LS 1500



Inverter Model LS-1212 LS-1524 LS-1548
Product Code LPI00078 LPI00079 LPI00080
Nominal DC Voltage 12 V 24 V 48 V
Continuous Power 1200 W 1500 W 1500 W
½ Hour Rating 1500 W 2100 W 2100 W
Surge Rating (5 seconds) 4000 W 5000 W 5000 W
Input Voltage Range 10.5-17 V 21-34 V 42-68 V
Instantaneous Shutdown 9 V 18 V 36 V
Standby Current 42 mA 30 mA 24 mA
Inverter ON – no load 0.67 A 0.32 A 0.26 A
Peak Efficiency 91% 94% 94%
Weight 14 Kg 14 Kg 14 Kg
Dimensions 330 mm L x 296 mm W x 150 mm H
Output Voltage 240Vac +/- 4%
Output Waveform True Sinewave
Total Harmonic Distortion <4%
Output Frequency 50Hz +/- 0.1%
Power Factor All Conditions
Operating Temperature -10° C to +50° C
Autostart Sensitivity 0 – 20 W adjustable
Input/Output Isolation 3500V
Protection Circuitry Overtemperature - Overload/Short Circuit - Battery Undervoltage - Battery Overvoltage
Battery Leads 1.5m long with 10mm mounting lugs
DC Isolation Thermal/Magnetic Circuit Breaker
Output Wiring Single power outlet & junction box
Chassis Powder coated 3mm Aluminium
Standards AS2279, AS3000, AS3001, EN55014, & C-Tick
Warranty 2 Years Parts and Labour



  >>>back to top

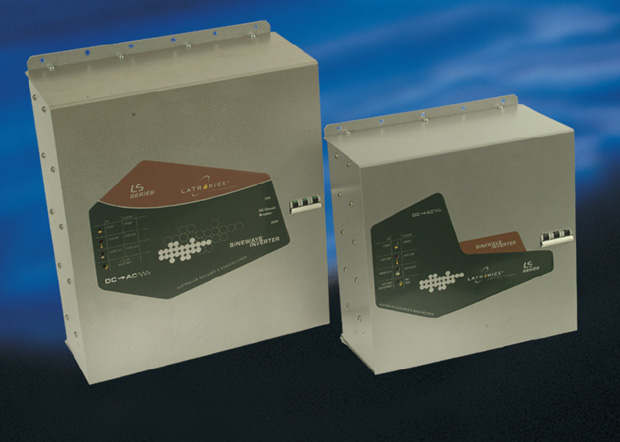

 4. Seria de invertoare - LS 2000, 3000, 5000







Inverter Model LS-2012 LS-2324 LS-3024 LS-3548 LS-5548
Product Code LPI00081 LPI00082 LPI00084 LPI00085 LPI00086
Nominal DC Voltage 12V 24V 24V 48V 48V
Continuous Power 2000W 2300W 3000W 3500W 5500W
½ Hour Rating 2200W 2800W 3700W 4100W 6500W
Surge Rating (5 secs) 5500W 7000W 9000W 10500W 15000W
Input Voltage Range 10.5-17V 21-34V 21-34V 42-68V 42-68V
Instantaneous Shutdown 9V 18V 18V 36V 36V
Standby Current 75mA 45mA 50mA 40mA 60mA
Inverter ON - no load 1.1A 0.51A 0.6A 0.33A 0.49A
Peak Efficiency 90% 94% 93% 94% 95%
Weight 22Kg 22Kg 24Kg 24Kg 33Kg
Dimensions 370 mm [L] x 386mm [W] x 180 mm [H] 475 x 458 x 187
Output Voltage 240Vac +/- 4%
Output Frequency 50Hz +/- 0.1%
Output Waveform True Sinewave
THD <4%
Power Factor All Conditions
Autostart Sensitivity 0 – 20 W adjustable
Operating Temperature -10°C to +50°C
DC to AC Isolation 3500V
Protection Circuitry Overtemperature, Overload/Short Circuit, Battery Undervoltage/Overvoltage
Battery Leads 1.5 Metres long with 10mm mounting lugs
AC Output Wiring 3 Terminal Hardwire Junction Box, labelled “AC Output”
AC Input Wiring 3 Terminal Hardwire Junction Box, labelled “AC Input”
Chassis Powder Coated 3mm Aluminium P.C.4mm Alum.
Warranty 3 Years Parts and Labour
Standards AS2279, AS3000, AS3100, EN55014, & C-Tick.
Ratings Specifications @ 25°C ambient nominal battery voltage & unity power factor
