Invertoare
DC/AC - STECA & STUDER
|

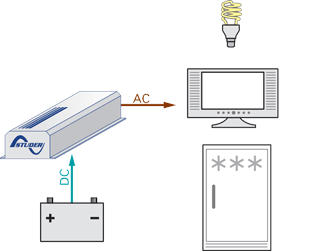

Invertoarele
sunt dispozitive care fac conversia curentului continu DC in
curent alternativ AC asigurand calitatea frecventei la 50Hz,
deci ele fac conversia tensiunii de 12V, 24V sau 48 V, provenita
de la baterii, in tensiune 220Vca. In general exista doua
tipuri de invertoare: -
cu unda perfect sinusoidata (perfomante mult superioare in
comparatie cu reteaua conventionala de energie) -
cu unda sinusoidala modificata (unda este alternativa dar nu

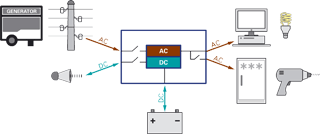

este sinusoidala, sunt mai ieftine ) Aplicatie
sistem energie de rezerva
|
|
1.

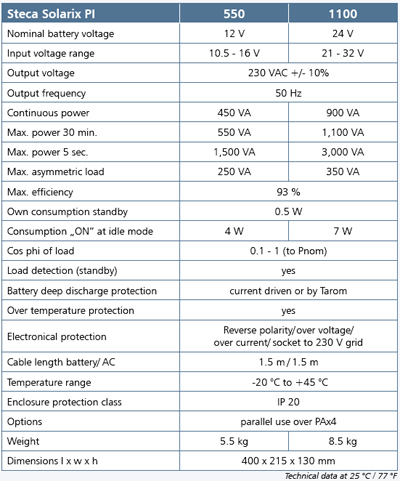

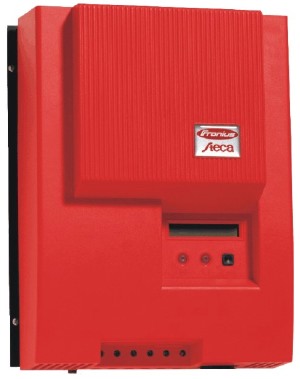

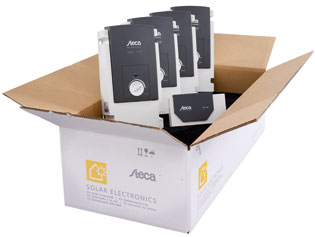

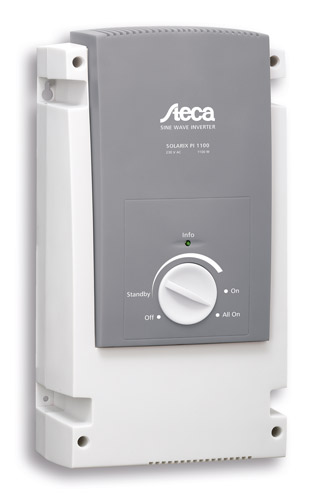

Seria de invertoare Steca PI 550 si 1100
|
Steca Stand-Alone Sine Wave
Inverter – Este un invertor inovativ dezvoltat pentru
sisteme individuale cu unda sinusoidala pura. Aceste
invertoare sunt disponibile cu si fara controller de incarcare
a bateriilor integrat , avand inclus un microcontroler AtonIC
care este unic in
categoria sa de pret.
|
|
|
Product
Code
|
|
|
LPI00237 |
Steca Solarix PI 550 |
450W |
12V |
Dimension
(mm) 20x244x120 |
LPI00238 |
Steca Solarix PI 1100 |
900W |
24V |
Germania |
|
|
|
2.Seria
de invertoare Steca Set
|

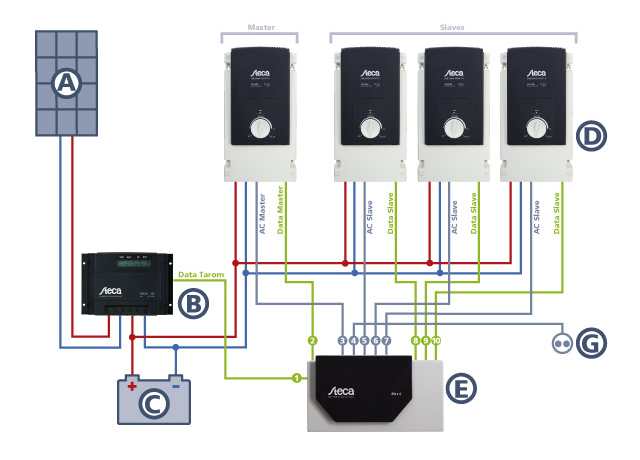

Seria
de invertoare din gama PI au fots create pentru functionare in
paralel. In aceste conditii instalarea in paralel a acestor
sistem va permite intodeauna cresterea puterii electrice la
iesire prin adaugarea simpla a invertoarelor in paralel.
|
|
Cod
produs |
Model |
Descriere |
|

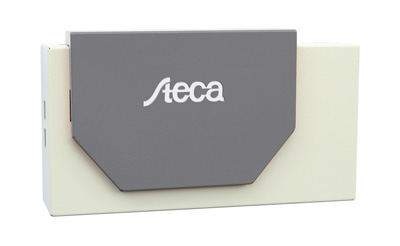

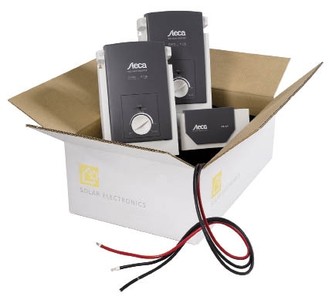

LPI00292 |
Steca
Solarix PI 1100-12 Set |
Stand
Alone Inverter 1100W / 12V, 230V/50 Hz, 2 x Solarix 550,
1 x Steca PAx4, all cables included. |
|
LPI00293 |
Steca
Solarix PI 1600-12 Set |
Stand
Alone Inverter 1600W / 12V, 230V/50 Hz, 3 x Solarix 550,
1 x Steca PAx4, all cables included. |
|
LPI00294 |
Steca
Solarix PI 2200-12 Set |
Stand
Alone Inverter 2200W / 12V, 230V/50 Hz, 4 x Solarix 550,
1 x Steca PAx4, all cables included. |
|
LPI00295 |
Steca
Solarix PI 2200-24 Set |
Stand
Alone Inverter 2200W / 24V, 230V/50 Hz, 2 x Solarix
1100, 1 x Steca PAx 4, all cables included |
|
LPI00296 |
Steca
Solarix PI 3300-24 Set |
Stand
Alone Inverter 3300W / 24V, 230V/50 Hz, 3 x Solarix
1100, 1 x Steca PAx4, all cables included |
|
LPI00297 |
Steca
Solarix PI 4400-24 Set |
Stand
Alone Inverter 4400W / 24V, 230V/50 Hz, 4 x Solarix
1100, 1 x Steca PAx4, all cables included |
|
|
|
3.

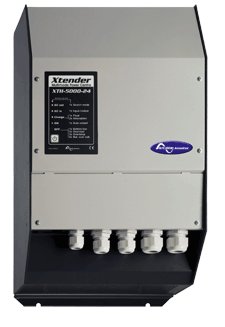

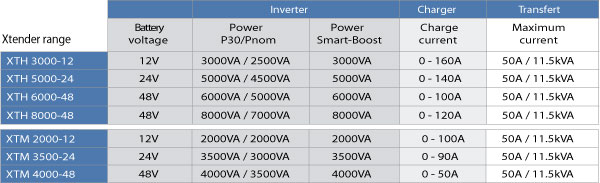

Seria de invertoare STUDER Xtender - XTH
|
|
Seria

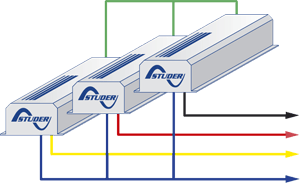

Xtender este cea mai performata serie Studer. Permite

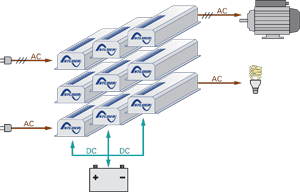

conectare in paralel pentru extinderea puterii pana la 21KW
monofazic sau 63KW trifazic.
|
|
|
Cod
Produs |
LPI00192 |
LPI00193 |
LPI00194 |
LPI00195 |
Model
|
XTH
3000-12 |
XTH
5000-24 |
XTH
6000-48 |
XTH
8000-48 |
Inverter
(factory setting/range adjustable with RCC-02 or RCC-03) |
Nominal
battery voltage |
12V
|
24V
|
48V
|
48V
|
Input
voltage range |
9.5
-17V |
19
-34V |
38
-68V |
38
-68V |
Continuous
power @ 25°C |
2500VA
|
4500VA
|
5000VA
|
7000VA
|
Power
Smart-Boost |
3000VA
|
5000VA
|
6000VA
|
8000VA
|
Power
30 min. @ 25°C |
3000VA
|
5000VA
|
6000VA
|
8000VA
|
Power
5 sec. @ 25°C |
3
x Pnom |
Maximum
load |
Up
to short-circuit |
Maximum
asymmetric load |
Up
to Pcont. |
Load
detection (stand-by) |
2
to 25 W |
Cos
phi |
0.1-1
|
Maximum
efficiency |
93%
|
94%
|
96%
|
96%
|
Consumption
OFF/Stand-by/ON |
1.7W/2.2W/14W
|
1.8W/2.5W/20W
|
2.2W/3W/22W
|
2.2W/3.8W/34W
|
Output
voltage |
Sine
wave 230Vac (+0/-10%) / 190-245Vac |
Output
frequency |
50
Hz adjustable 45-65Hz +/-0.05% (crystal controlled) |
Harmonic
distortion |
<2%
|
Dynamic
behaviour |
0.5
ms (on load change 0 to 100%) |
Overload
and short-circuit protection |
Automatic
disconnection with 3 time restart attempt |
Overheat
protection |
Warning
before shut-off -with automatic restart |
Battery
charger 6 step adjustable : I-U-Uo-Equalize-Uo(low)-U(periodic) |
Charging
current adjustable |
0
-160A |
0
-140A |
0
-100A |
0
-120A |
Input
current balance adjustment |
1
-50A |
Maximum
|
input
voltage 265Vac |
Input
AC voltage range |
Adjustable
threshold from 150 to 230Vac |
Input
requency |
45
-65Hz |
Power
Factor Correction (PFC) |
EN
61000-3-2 |
Detection
of short-circuited battery cell |
X |
X |
X |
X |
Battery control (factory setting/range
adjustable with RCC-02 or RCC-03) |
Absorption
end |
By
duration 4 / 0.25 -10h or by current -/ 4 -30A |
Absorption
voltage |
14.4
/ 9.5 -18V |
28.8
/ 19 -36V |
57.6
/ 38 -72V |
57.6
/ 38 -72V |
Periodic
absorption voltage |
-/
9.5 -18V |
-/
19 -36V |
-/
38 -72V |
-/
38 -72V |
Floating
voltage |
13.6
/ 9.5 -18V |
27.2
/ 19 -36V |
54.4
/ 38 -72V |
54.4
/ 38 -72V |
Reduced
floating voltage |
-/
9.5 -18V |
-/
19 -36V |
-/
38 -72V |
-/
38 -72V |
Equalization
|
By
number of cycles ( -/ 1 -100) or at set interval
( -/ 52 weeks) |
Equalization
end |
By
duration 4 / 0.25 -10h or by current -/ 4 -30A |
Equalization
voltage |
-/
9.5 -18V |
-/
19 -36V |
-/
38 -72V |
-/
38 -72V |
Deep-discharge
protection |
10.8
/ 9.5 -18V |
21.6
/ 19 -36V |
43.2
/ 38 -72V |
43.2
/ 38 -72V |
Reduced
floating time |
-/
0 -32 days |
Periodic
absorption time |
-/
0 -10 hours |
Temperature
compensation (optional BTS-01) |
-5
/ 0 to -8mV/°C/Cell |
General data |
Multifunction
contact adjustable |
2
independent contacts 16A 250Vac (potential free 3 points) |
Max.
current on transfer relay |
50A
/ 11.5kVA |
Transfer
time |
<20ms
|
Weight
|
34kg
|
40kg
|
42kg
|
46kg
|
Dimension
hxlxL [mm] |
220x290x500
|
220x310x500
|
Protection
index |
IP23
|
Conformity
|
EN
61000-6-1, EN 61000-6-3, EN 55014, EN 55022 |
|
EN
61000-3-2, Dir. 89/336/EEC, LVD 73/23/EEC |
Operating
temperature range |
-20
à 55°C |
Ventilation
|
Forced
from 45°C |
Acoustic
|
level
<10dB / <35dB (without/with ventilation) |
Warranty
|
2
years |
Options |

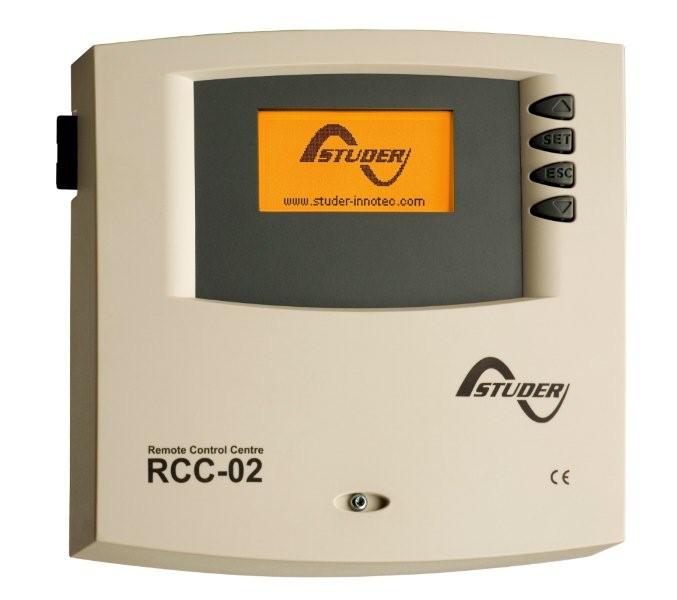

Remote
control and
programmation centre RCC-02 or RCC-03 |
X |
X |
X |
X |
Communication
cable for 3ph and parallel CAB-RJ45-2 (2 m) |
X |
X |
X |
X |
Battery
temp. Sensor BTS-01 (3 m) |
X |
X |
X |
X |
>>>back to top
|
4.
Seria de invertoare STUDER Xtender - XTM
|
|
Cod
Produs |
LPI00275 |
LPI00233 |
LPI00276 |
LPI00235 |
LPI00192 |
LPI00234 |
LPI00236 |
Model |
XTM
1500-12 |
XTM
2000-12 |
XTM
2400-24 |
XTM
2600-48 |
XTH
3000-12 |
XTM
3500-24 |
XTM
4000-48 |
Inverter
(factory setting/range adjustable with RCC-02 or RCC-03) |
Nominal
battery voltage |
12V |
12V |
24V |
48V |
12V |
24V |
48V |
Input
voltage range |
9.5
- 17V |
9.5
- 17V |
19
- 34V |
38
- 68V |
9.5
- 17V |
19
- 34V |
38
- 68V |
Continuous
power @ 25°C |
1500VA |
2000VA |
2000VA |
2000VA |
2500VA |
3000VA |
3500VA |
Power
30 min. @ 25°C |
1500VA |
2000VA |
2400VA |
2600VA |
3000VA |
3500VA |
4000VA |
Power
5 sec. @ 25°C |
3.4kVA |
4.8kVA |
6kVA |
6.5kVA |
7.5kVA |
9kVA |
10.5kVA |
Power
Smart-Boost 30 min. @ 25°C |
1500VA |
2000VA |
2400VA |
2600VA |
3000VA |
3500VA |
4000VA |
Maximum
load |
|
Up
to short-circuit |
Maximum
asymmetric load |
|
Up
to Pcont. |
Load
detection (stand-by) |
|
2
to 25 W |
Cos
j |
|
0.1-1 |
Maximum
efficiency |
93% |
93% |
94% |
96% |
93% |
94% |
96% |
Consumption
OFF/Stand-by/ON |
1.2W/1.4W/8W |
1.2W/1.4W/10W |
1.4W/1.6W/9W |
1.8W/2W/10W |
1.2W/1.4W/14W |
1.4W/1.6W/12W |
1.8W/2.1W/14W |
Output
voltage |
|
Sine
wave 230Vac (+/- 2%) / 190-245Vac (also available in
120Vac except for the XTH 8000-48) |
Output
frequency |
|
50
Hz adjustable 45-65Hz +/- 0.05% (crystal controlled) |
Harmonic
distortion |
|
<2% |
Dynamic
behaviour |
|
0.5
ms (on load change 0 to 100%) |
Overload
and short-circuit protection |
|
Automatic
disconnection with 3 time restart attempt |
Overheat
protection |
|
Warning
before shut-off - with automatic restart |
Battery
charger 6 step adjustable : I-U-Uo-Equalize-Uo(low)-U(periodic) |
Charging
current adjustable |
0
- 70A |
0
- 100A |
0
-55A |
0
-30A |
0
-160A |
0
-90A |
0
-50A |
Input
current balance adjustment |
|
1
-50A |
Maximum
input voltage |
|
265Vac |
Input
AC voltage range |
|
Adjustable
threshold from 150 to 230Vac (also available in 120Vac
except for the XTH 8000-48) |
Input
frequency |
|
45
-65Hz |
Power
Factor Correction (PFC) |
|
EN
61000-3-2 |
Battery
control (factory setting/range adjustable with RCC-02 or
RCC-03) |
Absorption
end |
|
By
duration 2 / 0.25 -10 h or by current -/ 4 -30A |
Absorption
voltage |
14.4
/ 9.5 -17V |
14.4
/ 9.5 -17V |
28.8
/ 19- 34V |
57.6
/ 38 -68V |
14.4
/ 9.5 - 17V |
28.8
/ 19 -34V |
57.6
/ 38 -68V |
Periodic
absorption voltage |
-
/ 9.5 -17V |
-
/ 9.5 -17V |
-/
19- 34V |
-/
38 -68V |
-/
9.5 - 17V |
-/
19 -34V |
-/
38 -68V |
Floating
voltage |
13.6
/ 9.5 - 17V |
13.6
/ 9.5 - 17V |
27.2
/ 19 -34V |
54.4
/ 38 -68V |
13.6
/ 9.5 - 17V |
27.2
/ 19 -34V |
54.4
/ 38 -68V |
Reduced
floating voltage |
-
/ 9.5 -17V |
-
/ 9.5 -17V |
-/
19 -34V |
-/
38 -68V |
-/
9.5 - 17V |
-/
19 -34V |
-/
38 -68V |
Equalization |
|
By
number of cycles ( - / 1 -100) or at set interval ( - / 52
weeks) |
Equalization
end |
|
By
duration 4 / 0.25 -10 h or by current -/ 4 -30A |
Equalization
voltage |
-/
9.5 -17V |
-/
9.5 -17V |
-
/ 19 - 34V |
-
/ 38 - 68V |
-
/ 9.5 - 17V |
-
/ 19 - 34V |
-
/ 38 - 68V |
Deep-discharge
protection |
10.8
/ 9.5 - 17V |
10.8
/ 9.5 - 17V |
21.6
/ 19 - 34V |
43.2
/ 38 -68V |
10.8
/ 9.5 - 17V |
21.6
/ 19 -34V |
43.2
/ 38 -68V |
Reduced
floating time |
|
-/
0 - 32 days |
Periodic
absorption time |
|
-/
0 - 10 hours |
Temp.
compensation (option BTS-01) |
|
-5
/ 0 to -8mV/°C/Cell (only with option BTS-01) |
General
data |
XTM
1500-12 |
XTM
2000-12 |
XTM
2400-24 |
XTM
2600-48 |
XTH
3000-12 |
XTM
3500-24 |
XTM
4000-48 |
Multifunction
contact adjustable |
|
2
independent contacts 16A 250Vac (potential free 3 points) |
Max.
current on transfer relay |
|
50A |
Transfer
time |
|
<15ms |
Weight |
15
kg |
18.5
kg |
16.2
kg |
16.2
kg |
34
kg |
21.2
kg |
22.9
kg |
Dimension
hxlxL [mm] |
133x322x466 |
133x322x467 |
133x322x468 |
133x322x469 |
230x300x500 |
133x322x466 |
Protection
index |
|
IP20 |
Conformity |
|
EN
61000-6-1, EN 61000-6-3, EN 55014, EN 55022, EN 61000-3-2,
Dir. 89/336/EEC, LVD 73/23/EEC |
Operating
temperature range |
|
-20
to 55°C |
Ventilation |
|
Forced
from 55°C |
Acoustic
level |
|
<40dB
/ <45dB (without/with ventilation) |
Warranty |
|
2
years |
Options |
Remote
control RCC-02 or RCC-03 |
• |
• |
• |
• |
• |
• |
• |
Communication
cable for 3ph and // CAB-RJ45-8-2 |
• |
• |
• |
• |
• |
• |
• |
Battery
temp. sensor BTS-01 (3 m) |
• |
• |
• |
• |
• |
• |
• |
RCM
-10 |
• |
• |
• |
• |
|
• |
• |
|
|
>>>back to
top
|
|
5.

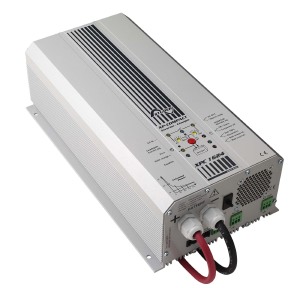

Seria invertoare STUDER XPC
|
Seria XPC este una
dintre serile cele mai longevive create de STUDER avnd peste
15 ani de existenta si functionare. Nivelul foarte ridicat de
satisfactie al clientilor a generat mentinerea ei in linia de
productie si cateva inbunatatiri faca din seria XPC unul
dintre cele mai utilizate invertoare in zona off-grid si UPS,
backup. Innovative
Inverter/Charger Line – Invertoarele
tip XPC respecta caracteristicile principale ale gamei SI. Invertorul
dispune de control distant si iesire de alarma , avand in plus un
controller de incarcare integrat.
|
|
Product
Code |
Model |
Power
(VA) |
Voltage (V) |
Dimension (mm) |
Weight (Kg) |
Remark |
LPI00037 |
Studer XPC 1400-12 |
1100 |
12 |
124x215x410 |
11,7 |
with battery charger 0-40A |
LPI00038 |
Studer XPC 2200-24 |
1600 |
24 |
124x215x410 |
12,6 |
with battery charger 0-40A |
LPI00039 |
Studer XPC 2200-48 |
1600 |
48 |
124x215x410 |
12,6 |
with battery charger 0-20A |
|
|
>>>back to top
|
6.

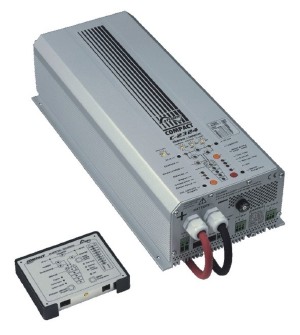

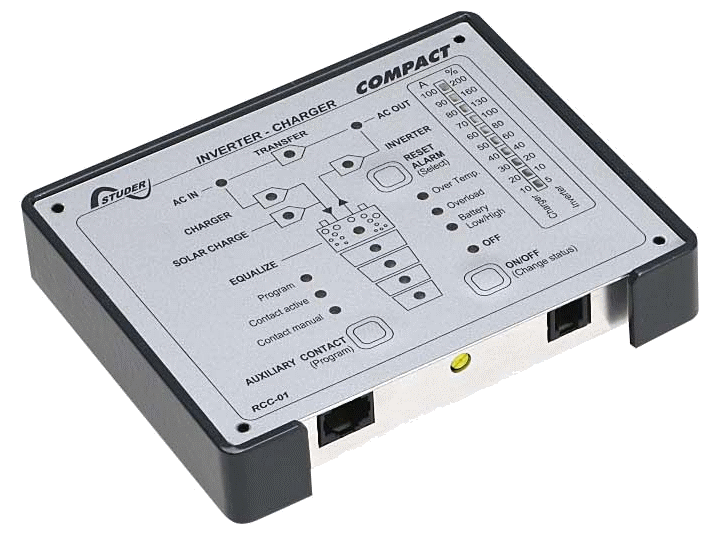

Seria de invertoare STUDER Compact
|
|
|

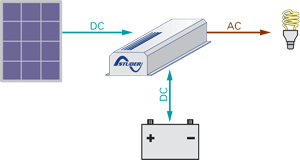

Seria compact dispune de cateva
particularitati printre care si un controler solar integrat in
tehnologie PWM.
|
|
|
Product
Code |
Model |
Power (W) |
Voltage (V) |
Dimension (mm) |
Weight (Kg) |
Remark |
LPI00040 |
C 1600-12 |
1300 |
12 |
480x215x124 |
16 |
with battery charger 0-55A |
LPI00041 |
C 2600-24 |
2300 |
24 |
480x215x124 |
17,1 |
with battery charger 0-55A |
LPI00042 |
C 4000-48 |
3500 |
48 |
480x215x124 |
29,4 |
with battery charger 0-50A |
LPI00043 |
C 4000-48S |
3500 |
48 |
670x215x124 |
|
with battery charger 0-50A and solar
charge controller 20A/90V |
LPI00044 |
C 1600-12S |
1300 |
12 |
480x215x124 |
|
with battery charger 0-55A and solar
charge controller 30A/45V |
LPI00045 |
C 2600-24S |
2300 |
24 |
480x215x124 |
|
with battery charger 0-55A and solar
charge controller 30A/45V |
|
|
|
|
Dimension
(mm) |
320x244x120 |
Weight
(Kg) |
5,5 |
Protection
Class |
IP20 |
END
OF LIFE |
Country |
Austria |
|
Product
Code
|
Model |
Power
(W) |
Voltage
(V) |
Max
Load (A) |
Remark
|
LPI00005 |
550
I |
550 |
12 |
46 |
|
LPI00006 |
550
RI |
550 |
12 |
46 |
Charge
controller integrated / 15 A |
LPI00007 |
900
I |
900 |
24 |
38 |
|
LPI00008 |
900
RI |
900 |
24 |
38 |
Charge
controller integrated / 15 A |
|
>>>back to
top
|

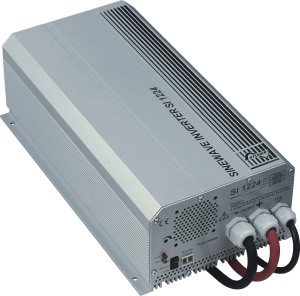

7.Seria
de invertoare SI
|
Invertoarele
din seria SI sunt invertoare cu unda perfect sinusoidala avand un design
placut , fiind foarte silentios si fiabil. Invertorul dispune de
control distant si iesire de alarma , avand in plus un
controller de incarcare integrat. Seria SI permite
conectare in sistem tri-fazat ( 3 faze) pentru obtinerea a
380V/50Hz.
|
|
Product
Code |
Model |
Power
(W) |
Voltage
(V) |
Dimension
(mm) |
Weight
(Kg) |
Prot
Class |
Remark |
LPI00011 |
SI
612 |
600 |
12 |
215x124x206 |
6,9 |
IP20;IP
23 |
|
LPI00012 |
SI
624 |
600 |
24 |
215x124x206 |
6,9 |
IP20;IP
23 |
|
LPI00013 |
SI
812 |
800 |
12 |
215x124x276 |
10,4 |
IP20;IP
23 |
|
LPI00014 |
SI
824 |
800 |
24 |
215x124x276 |
10,4 |
IP20;IP
23 |
|
LPI00015 |
SI
1212 |
1200 |
12 |
215x124x391 |
13,2 |
IP20;IP
23 |
|
LPI00016 |
SI
1224 |
1200 |
24 |
215x124x391 |
13,2 |
IP20;IP
23 |
|
LPI00017 |
SI
1248 |
1200 |
48 |
215x124x391 |
13,2 |
IP20;IP
23 |
|
LPI00112 |
SI
1624 |
1600 |
24 |
|
13.2 |
IP20 |
|
LPI00018 |
SI
612-S |
600 |
12 |
215x124x206 |
6,9 |
IP20;IP
23 |
with
solar charge controller 16A |
LPI00019 |
SI
624-S |
600 |
24 |
215x124x206 |
6,9 |
IP20;IP
23 |
with
solar charge controller 16A |
LPI00020 |
SI
812-S |
800 |
12 |
215x124x276 |
10,4 |
IP20;IP
23 |
with
solar charge controller 16A |
LPI00021 |
SI
824-S |
800 |
24 |
215x124x276 |
10,4 |
IP20;IP
23 |
with
solar charge controller 16A |
LPI00022 |
SI
1212-TP |
1200 |
12 |
215x124x391 |
13,2 |
IP20;IP
23 |
Twinpower |
LPI00023 |
SI
1224-TP |
1200 |
24 |
215x124x391 |
13,2 |
IP20;IP
23 |
Twinpower |
LPI00024 |
SI
1248-TP |
1200 |
48 |
215x124x391 |
13,2 |
IP20;IP
23 |
Twinpower |
LPI00025 |
SI
2324 |
2300 |
24 |
215x124x591 |
22,8 |
IP20;IP
23 |
|
LPI00026 |
SI
2348 |
2300 |
48 |
215x124x591 |
22,8 |
IP20;IP
23 |
|
LPI00027 |
SI
2324-TP |
2300 |
24 |
215x124x591 |
22,8 |
IP20;IP
23 |
Twinpower |
LPI00028 |
SI
2348-TP |
2300 |
48 |
215x124x591 |
22,8 |
IP20;IP
23 |
Twinpower |
LPI00029 |
SI
3548 |
3500 |
48 |
215x124x791 |
33,5 |
IP20;IP
23 |
|
LPI00030 |
SI
3548-TP |
3500 |
48 |
215x124x791 |
33,5 |
IP20;IP
23 |
Twinpower |
LPI00031 |
SI
3324 |
3300 |
24 |
215x124x791 |
33,5 |
IP20;IP
23 |
|
LPI00032 |
SI
1224 APE |
1200 |
24 |
215x124x391 |
|
IP20 |
with
option PE and free alarm contact |
|
|
>>>back to top
|
8.
Seria HP Compact
|
|
|
Product
Code |
Model |
Power
(W) |
Voltage
(V) |
Dimension
(mm) |
Weight
(Kg) |
Prot
Class |
Remark |
LPI00033 |
HPC
2800-12 |
2500 |
12 |
242x288x480 |
33 |
IP20 |
with battery
charger 0-110A |
LPI00034 |
HPC
6000-48 |
5000 |
48 |
242x288x480 |
41 |
IP20 |
with battery
charger 0-70A |
LPI00035 |
HPC
4400-24 |
4000 |
24 |
242x288x480 |
39 |
IP20 |
with battery
charger 0-100A |
LPI00036 |
HPC
8000-48 |
7000 |
48 |
242x288x900 |
48 |
IP20 |
with battery
charger 0-90A |
|
|
>>>back to top
|
|
|
|
|
