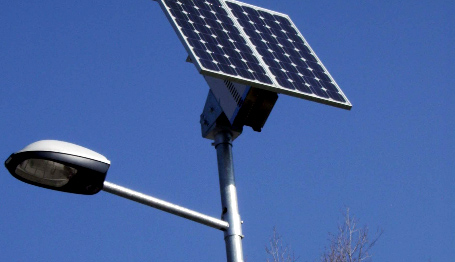

Lampi solare pentru iluminat stradal, parcuri si gradini



Lampile  alimentate din surse de energie solara, sunt folosite tot mai intens in solutii de iluminat stradal. Ele functioneaza dupa un principiu foarte simplu. Lumina din timpul zilei este transformata in curent electric de un panou solar , care la randul ei este inmagazinata intr-un acumulator. Energia din acest acumulator este transformata din nou in lumina de un bec economic pe timpul noptii. Lampa solara este comandata de un mic senzor de lumina care porneste si opreste automat lampa. Puterea luminoasa este direct dependenta de puterea panoului solar, acumulatorului si al becului economic. Oferta spre vanzare a acestor sisteme de iluminat public, este noua in Romania. Aceste sisteme ecologice folosite in amenajari turistice sau spatile verzi ale unei case, ofera o ambianta deosebit de placuta.



1. Seria  - Lampi pentru parcuri si gradini

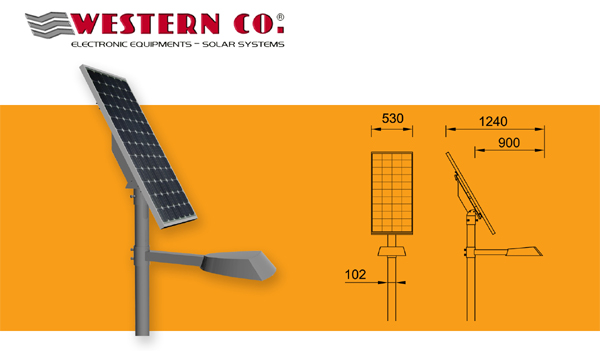

Cod Produs LPA00119
MODEL SPL12-LED
PV MODULE monocrystallin silicon
MODULE POWER 90Wp ( Ro )
KIND OF LAMP Western Co. 12LED
LIGHT COLOUR White light
LUMEN 1260 (105lumenxWatt)
BATTERIES CAPACITY 55Ah - 12V - GEL sealed battery
BATTERIES HOUSING In the top of the pole
REMOTE CONTROL NO



Descarca datasheet

Technical  datasheet

fisier format PDF

fisier format PDF

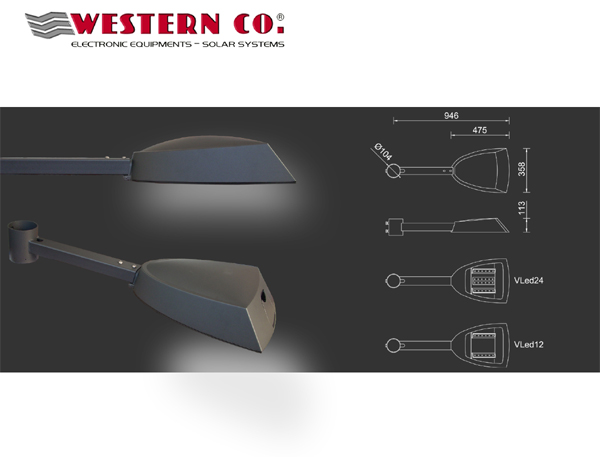

 1. Seria  - LAMPI cu LED

Descarca video

Descarca datasheet

fisier format AVI

fisier format PDF

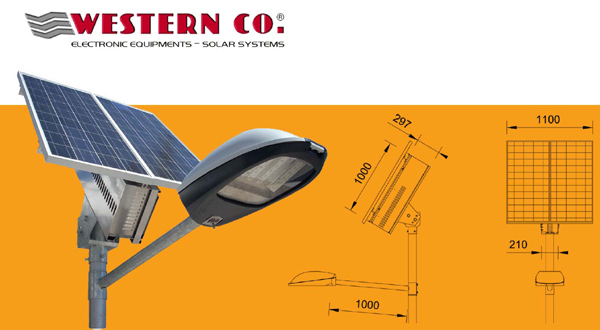

Cod Produs LPA00100 LPA00101
MODEL PV Street-Lamp with LED lamp SSL20-M-LED PV Street-Lamp with LED lamp SSL20B-M-LED
PRODUCT CODE SSL20B-M-LED / SSL20-M-LED
PV MODULE Monocrystalline Silicon
MODULE POWER 185Wp (Romania)
KIND OF LAMP LAMP WITH No. 20 LED ( efficiency: 100lm/W )
LIGHT COLOUR White Light
LUMEN 2000
LUX ON THE GROUND 21 lux (0 ml.) - 5 lux (10 ml.)
BATTERIES CAPACITY 200Ah - 12V - PB sealed (2x 100Ah)
BATTERIES HOUSING Top of the pole /on the ground

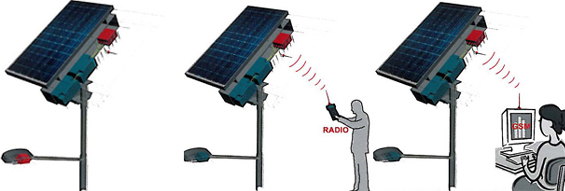

REMOTE CONTROL RADIO CONTROL
 (OPTIONAL) GSM CONTROL









Cod Produs LPA00102 LPA00103
MODEL PV Street-Lamp with LED lamp SSL24-M-LED PV Street-Lamp with LED lamp SSL24B-M-LED
PRODUCT CODE SSL24B-M-LED / SSL24-M-LED
PV MODULE Monocrystalline Silicon
MODULE POWER 185Wp (Romania)
KIND OF LAMP LAMP WITH No. 24 LED ( efficiency: 100 lm/W )
LIGHT COLOUR White Light
LUMEN 2400
LUX ON THE GROUND 25 lux (0 ml.) - 5 lux (10 ml.)
BATTERIES CAPACITY 200Ah - 12V - PB sealed (2x 100Ah)
BATTERIES HOUSING Top of the pole /on the ground
REMOTE CONTROL RADIO CONTROL
 (OPTIONAL) GSM CONTROL









Cod Produs LPA00104 LPA00105
MODEL PV Street-Lamp with LED lamp SSL30-M-LED  PV Street-Lamp with LED lamp SSL30B-M-LED
PRODUCT CODE SSL30B-M-LED / SSL30-M-LED
PV MODULE Monocrystalline Silicon
MODULE POWER 185Wp (Romania)
KIND OF LAMP LAMP WITH No. 30 LED ( efficiency: 100 lm/W )
LIGHT COLOUR White Light
LUMEN 3000
LUX ON THE GROUND 35 lux (0 ml.) - 7 lux (10 ml.)
BATTERIES CAPACITY 200Ah - 12V - PB sealed (2x 100Ah)
BATTERIES HOUSING Top of the pole /on the ground
REMOTE CONTROL RADIO CONTROL
 (OPTIONAL) GSM CONTROL

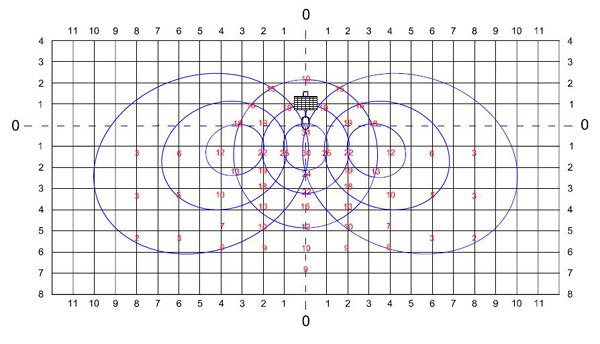

Aria de dispersie pentru lampile cu LED

2. Seria  - Lampi economice SOXE



Descarca datasheet

fisier format PDF

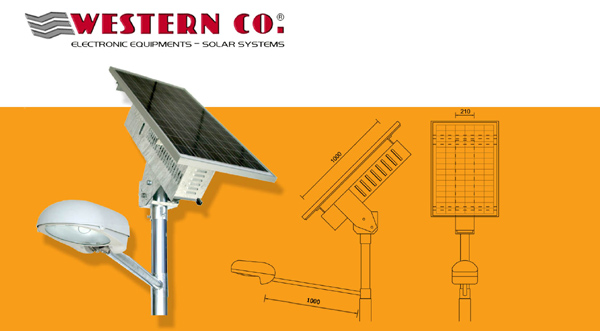

Cod Produs LPA00108 LPA00109
MODEL PV Street Lamp with SOX lamp SSL18B PV Street Lamp with SOX lamp SSL18B
PRODUCT CODE SSL18B-M / SSL18-M
PV MODULE Monocrystalline Silicon
MODULE POWER 185Wp (Romania)
KIND OF LAMP SOX-E 18W ( low pressure sodium )
LIGHT COLOUR Amber Yellow
LUMEN 1800
LUX ON THE GROUND 8 lux (0 ml..) - 3 lux (10 ml.)
BATTERIES CAPACITY 200Ah - 12V - PB sealed (2x 100Ah)
BATTERIES HOUSING Top of the pole /on the ground
REMOTE CONTROL RADIO CONTROL
 (OPTIONAL) GSM CONTROL

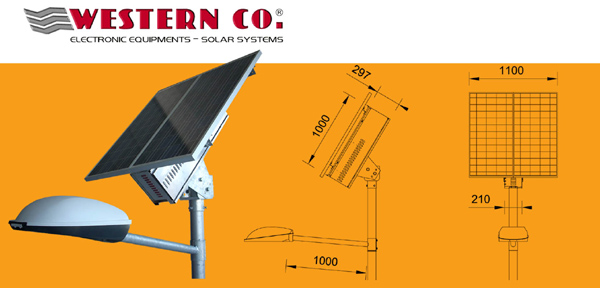

Cod Produs LPA00110 LPA00111
MODEL PV Street Lamp with SOX lamp SSL26B  PV Street Lamp with SOX lamp SSL26
PRODUCT CODE SSL26B-M / SSL26-M
PV MODULE Monocrystalline Silicon
MODULE POWER 185Wp (Romania)
KIND OF LAMP SOX-E 26W
LIGHT COLOUR Amber yellow
LUMEN 3700
LUX ON THE GROUND 12 lux (0 ml..) - 6 lux (10 ml.)
BATTERIES CAPACITY 200Ah - 12V - PB sealed (2x 100Ah)
BATTERIES HOUSING Top of the pole /on the ground
REMOTE CONTROL RADIO CONTROL
 (OPTIONAL) GSM CONTROL

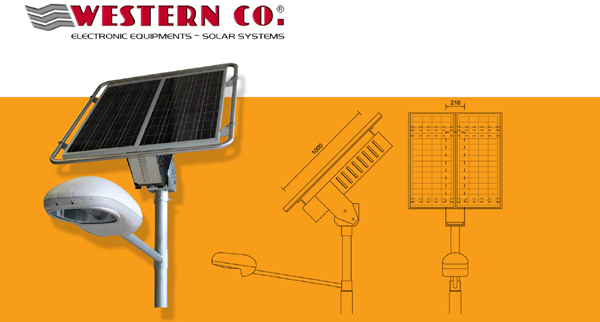

Cod Produs LPA00112 LPA00113
MODEL PV Street Lamp with SOX lamp SSL36B PV Street Lamp with SOX lamp SSL36
PRODUCT CODE SSL36B-M / SSL36-M
PV MODULE Monocrystalline Silicon
MODULE POWER 170Wp (central and southern IT) - 200Wp (northern IT)
KIND OF LAMP SOX-E 36W
LIGHT COLOUR Amber yellow
LUMEN 6100
LUX ON THE GROUND 20 lux (o ml.) - 13 lux (10 ml.)
BATTERIES CAPACITY 200Ah - 12V - PB sealed (2x 100Ah)
BATTERIES HOUSING Top of the pole /on the ground
REMOTE CONTROL RADIO CONTROL
 (OPTIONAL) GSM CONTROL

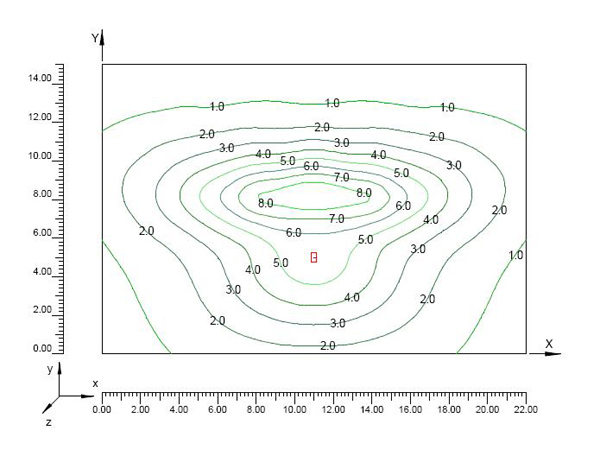

Aria de dispersie pentru lampile SOXE 18W

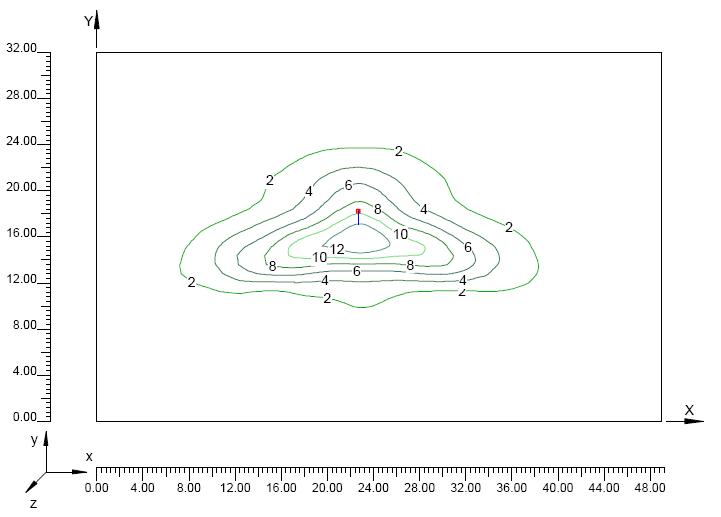

Aria de dispersie pentru lampile SOXE 26W

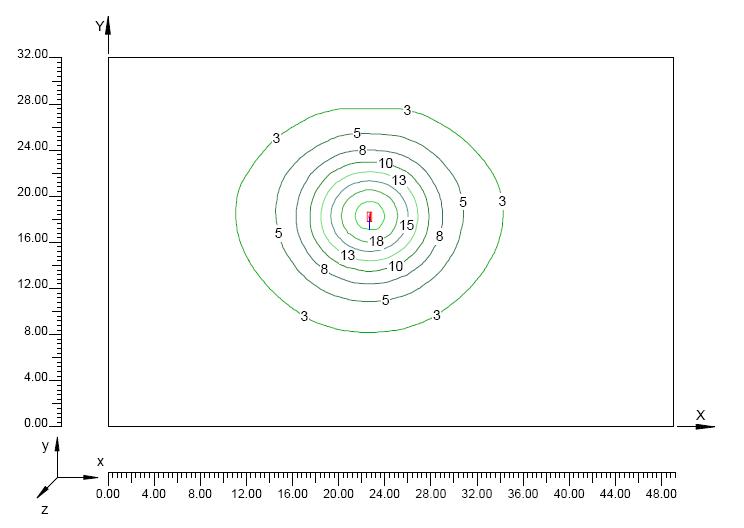

Aria de dispersie pentru lampile SOXE 36W

Descarca datasheet

fisier format PDF

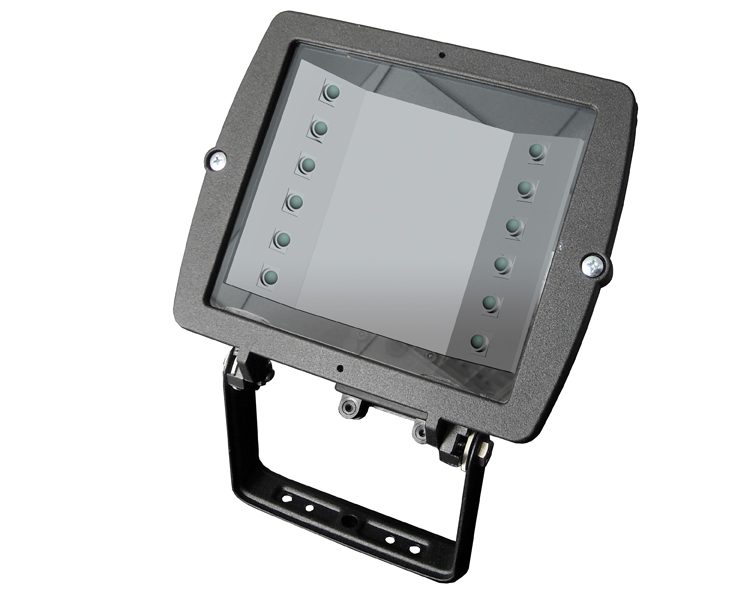

Seria Proiector cu LED pentru panouri de publicitate



Performante de iluminare: LED.12BB-12 a fost optimizat pentru un panou publicitar de proiecţie cu 90 ° V, E 140 ° H

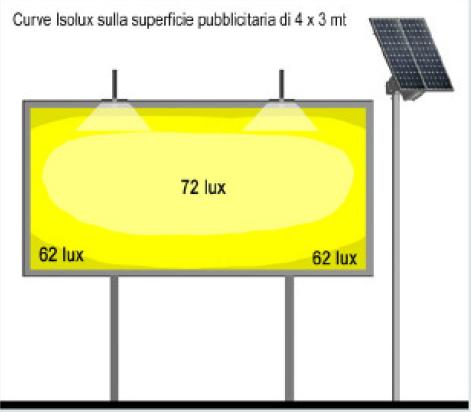

Unghiul de deschidere asimetrică astfel īncāt să se obţină o uniformitate buna chiar şi pentru o distanţă minimă de proiecţie. Īn mod obişnuit este utilizat pentru instalarea pe panou de dimensiuni 4x3m obtinand o diagrama Isolux ca schema de mai jos:



Cod Produs LPA00138 LPA00139
Model LED spot light for bill board Western LED spot light for bill board Western
Putere 12W 24W
Tensiune de lucru 12,6V 24V
Curent  0,95A
Protectie  IP65 IP55



Practic folisind un singur panou fotovoltaic de 75W la 12V putem obtine pentru doua proiectoare o cantitate de lumina continua timp de 12 ore  zilnic in perioada de vara.



Descarca datasheet

fisier format PDF









  Mareste imaginea

LPA00116

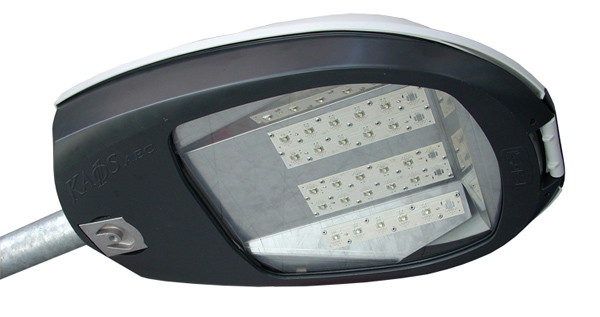

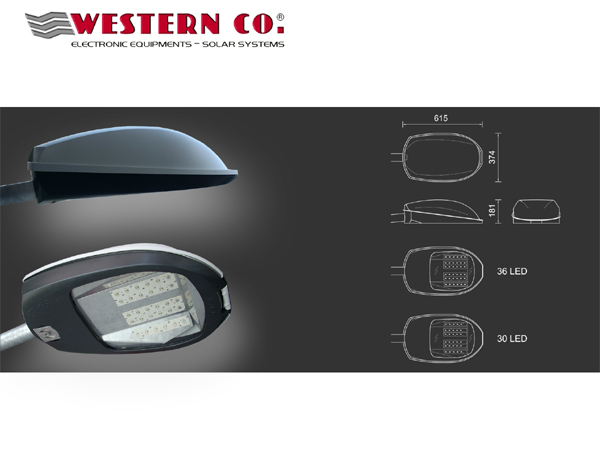

 Grid Street-Lamp LED.30K1-230
Description: (230 V / 30 LED Lamp / 4.500 lm)
Dimension: 622 x 380 x 211 mm
Weight: 800g

 Mareste imaginea


LPA00117

 Grid Street-Lamp LED.36K1-230
Description: (230 V / 36 LED Lamp / 5.100 lm)
Dimension: 622 x 380 x 211 mm
Weight: 800g



Manual tehnic regulator -->

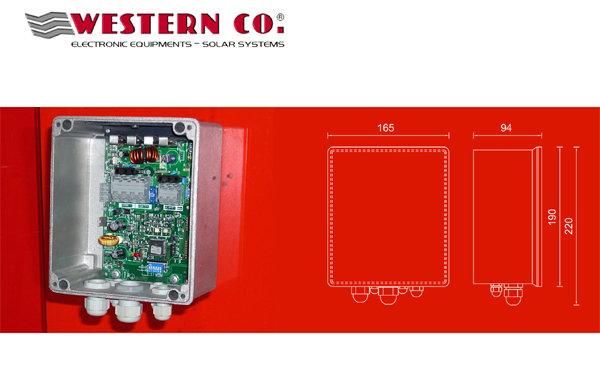

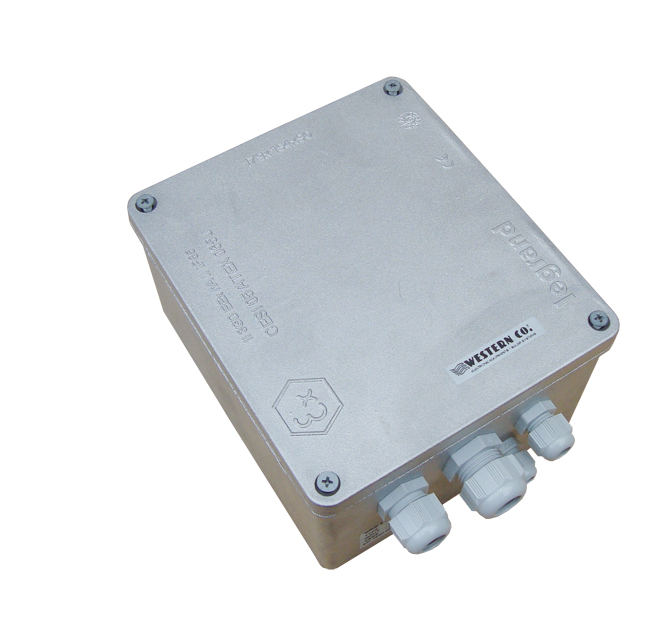

MPPT Charge Regulator SPB-LB12 LPC00093
Description: (10 A / output 12 V / switch controlled)
Dimension: 200 x 160 x 95 mm
Weight: 1,5 kg
MPPT Charge Regulator SPB-LB24 LPC00094
Description: (10 A / output 24 V / switch controlled)
Dimension: 200 x 160 x 95 mm
Weight: 1,5 kg
Manual tehnic regulator Radio >
Manual interfata telecomanda >

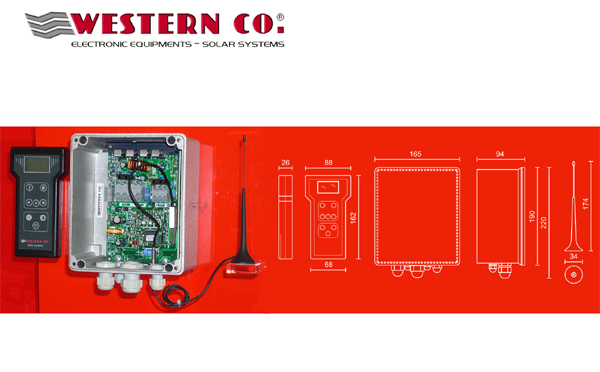

MPPT Charge Regulator SPB-LR12 LPC00095
Description: (10 A / output 12V / Radio contolled)
Dimension: 200 x 160 x 95 mm
Weight: 1,5 kg
MPPT Charge Regulator SPB-LR24 LPC00096
Description: (10 A / output 24 V / Radio contolled)
Dimension: 200 x 160 x 95 mm
Weight: 1,5 kg
Manual tehnic regulator GSM >

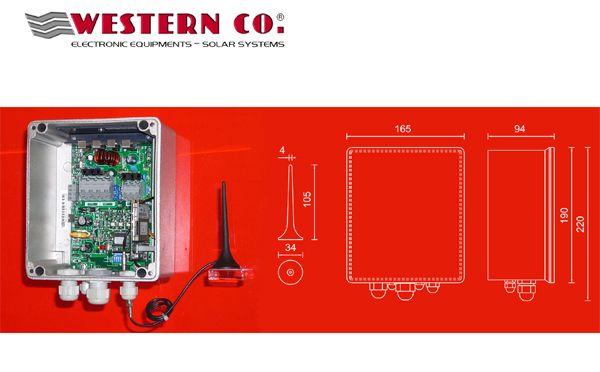

MPPT Charge Regulator SPB-LG12 LPC00097
Description: (10 A / output 12V / GSM controlled)
Dimension: 200 x 160 x 95 mm
Weight: 1,5 kg
MPPT Charge Regulator SPB-LG24 LPC00098
Description: (10 A / output 24 V / GSM controlled)
Dimension: 200 x 160 x 95 mm
Weight: 1,5 kg

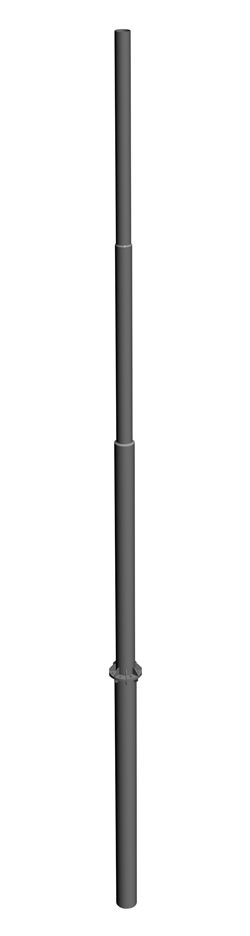

 LPT00018 Western Adaptable Street Lighting Pole

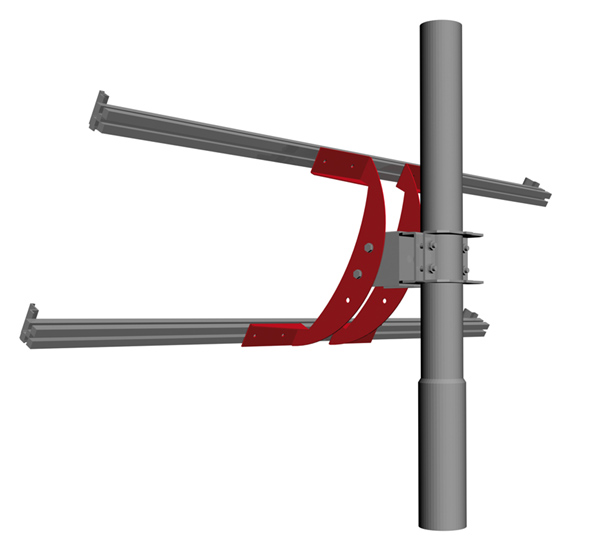

 LPT00019 Western Solar Module Bracket

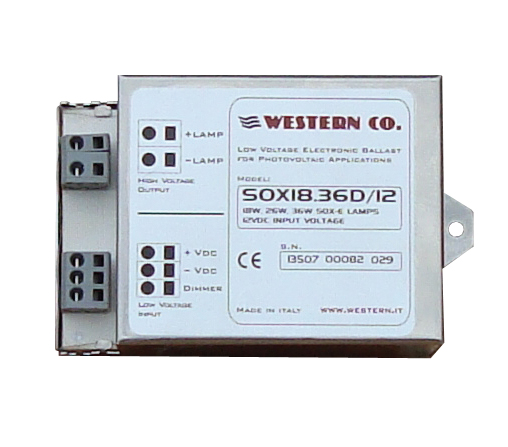

Electronic Ballast SOX-E 18-36 24V LPW00058
Description: (for 18 W, 26 W, 36 W / 24 V SOX Lamps)
Dimension: 124 x 78 x 48 mm
Weight: 300 g
Electronic Ballast SOX-E 18-36 12V LPW00059
Description: (for 18 W, 26 W, 36 W / 12 V SOX Lamps)
Dimension: 124 x 78 x 48 mm
Weight: 300 g
Electronic Ballast SOX-E 35-55D 24V LPW00060
Description: (for 35 W, 55 W / 24 V SOX Lamps)
Dimension: 124 x 78 x 48 mm
Weight: 300 g
Electronic Ballast SOX-E 66D 24V LPW00061
Description: (for 66 W / 24 V SOX Lamps)
Dimension: 124 x 78 x 48 mm
Weight: 300 g
Electronic Ballast SOX-E 91D 24V LPW00062
Description: (for 91 W / 24 V SOX Lamps)
Dimension: 124 x 78 x 48 mm
Weight: 300 g
