Inverters
DC/AC
|
|
|
|
1.

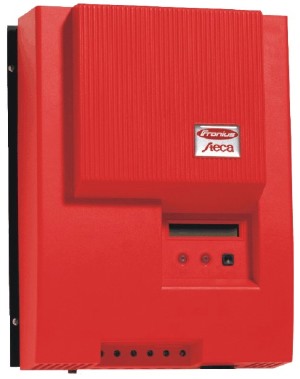

Series inverters Steca I,RI
|
|
Steca Stand-Alone Sine Wave Inverter - Innovative
stand alone inverters with a pure sine wave and completely new
performance characteristics. These inverters are available
with and without integrated solar charge controller with the
approved AtonIC-technology. AtonIC micro controllers are
especially characterized by a state of charge (SOC) of the
accumulator, which is unique in this price category.
|
 |
Dimension
(mm) |
320x244x120 |
| Weight
(Kg) |
5,5 |
| Protection
Class |
IP20 |
|
| Country |
Austria |
|
|
Product
Code
|
Model |
Power
(W) |
Voltage
(V) |
Max
Load (A) |
Remark
|
| LPI00005 |
550
I |
550 |
12 |
46 |
|
| LPI00006 |
550
RI |
550 |
12 |
46 |
Charge
controller integrated / 15 A |
| LPI00007 |
900
I |
900 |
24 |
38 |
|
| LPI00008 |
900
RI |
900 |
24 |
38 |
Charge
controller integrated / 15 A |
| LPI00009 |
400
I |
400 |
12 |
|
|
| LPI00010 |
400
RI |
400 |
12 |
|
Charge
controller integrated / 15 A |
|
|
>>>back to top
|
|

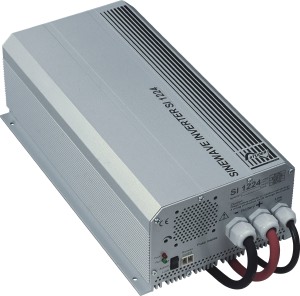

2.Seria
de invertoare SI
|
|
Inverter Product Serie SI - Innovative inverter
line with a perfect, pure sine wave in a well-designed casing,
with CE conform electronics working very silent and reliable.
The cables necessary for a simple installation are already
included. The option of a remote control, an alarm output and an
integrated charge controller is a special feature of this
product line. These inverters can be used as standard stand
alone inverters, as well as in USB installations. The
possibility of a use in parallel extends this product range from
0,4 to 10,5 KW.
|
|
|
|
| Product
Code |
Model |
Power
(W) |
Voltage
(V) |
Dimension
(mm) |
Weight
(Kg) |
Prot
Class |
Remark |
| LPI00011 |
SI
612 |
600 |
12 |
215x124x206 |
6,9 |
IP20;IP
23 |
|
| LPI00012 |
SI
624 |
600 |
24 |
215x124x206 |
6,9 |
IP20;IP
23 |
|
| LPI00013 |
SI
812 |
800 |
12 |
215x124x276 |
10,4 |
IP20;IP
23 |
|
| LPI00014 |
SI
824 |
800 |
24 |
215x124x276 |
10,4 |
IP20;IP
23 |
|
| LPI00015 |
SI
1212 |
1200 |
12 |
215x124x391 |
13,2 |
IP20;IP
23 |
|
| LPI00016 |
SI
1224 |
1200 |
24 |
215x124x391 |
13,2 |
IP20;IP
23 |
|
| LPI00017 |
SI
1248 |
1200 |
48 |
215x124x391 |
13,2 |
IP20;IP
23 |
|
| LPI00018 |
SI
612-S |
600 |
12 |
215x124x206 |
6,9 |
IP20;IP
23 |
with
solar charge controller 16A |
| LPI00019 |
SI
624-S |
600 |
24 |
215x124x206 |
6,9 |
IP20;IP
23 |
with
solar charge controller 16A |
| LPI00020 |
SI
812-S |
800 |
12 |
215x124x276 |
10,4 |
IP20;IP
23 |
with
solar charge controller 16A |
| LPI00021 |
SI
824-S |
800 |
24 |
215x124x276 |
10,4 |
IP20;IP
23 |
with
solar charge controller 16A |
| LPI00022 |
SI
1212-TP |
1200 |
12 |
215x124x391 |
13,2 |
IP20;IP
23 |
Twinpower |
| LPI00023 |
SI
1224-TP |
1200 |
24 |
215x124x391 |
13,2 |
IP20;IP
23 |
Twinpower |
| LPI00024 |
SI
1248-TP |
1200 |
48 |
215x124x391 |
13,2 |
IP20;IP
23 |
Twinpower |
| LPI00025 |
SI
2324 |
2300 |
24 |
215x124x591 |
22,8 |
IP20;IP
23 |
|
| LPI00026 |
SI
2348 |
2300 |
48 |
215x124x591 |
22,8 |
IP20;IP
23 |
|
| LPI00027 |
SI
2324-TP |
2300 |
24 |
215x124x591 |
22,8 |
IP20;IP
23 |
Twinpower |
| LPI00028 |
SI
2348-TP |
2300 |
48 |
215x124x591 |
22,8 |
IP20;IP
23 |
Twinpower |
| LPI00029 |
SI
3548 |
3500 |
48 |
215x124x791 |
33,5 |
IP20;IP
23 |
|
| LPI00030 |
SI
3548-TP |
3500 |
48 |
215x124x791 |
33,5 |
IP20;IP
23 |
Twinpower |
| LPI00031 |
SI
3324 |
3300 |
24 |
215x124x791 |
33,5 |
IP20;IP
23 |
|
| LPI00032 |
SI
1224 APE |
1200 |
24 |
215x124x391 |
|
IP20 |
with
option PE and free alarm contact |
|
|
|
|
>>>back to top
|
|
3.

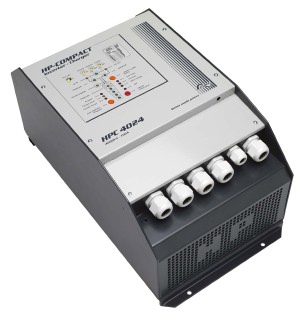

Seria HP Compact
|
|
|
|
|
| Product
Code |
Model |
Power
(W) |
Voltage
(V) |
Dimension
(mm) |
Weight
(Kg) |
Prot
Class |
Remark |
| LPI00033 |
HPC
2512 |
2500 |
12 |
242x288x480 |
33 |
IP20 |
with battery
charger 0-110A |
| LPI00034 |
HPC
5048 |
5000 |
48 |
242x288x480 |
41 |
IP20 |
with battery
charger 0-70A |
| LPI00035 |
HPC
4024 |
4000 |
24 |
242x288x480 |
39 |
IP20 |
with battery
charger 0-100A |
| LPI00036 |
HPC
7048 |
7000 |
48 |
242x288x900 |
48 |
IP20 |
with battery
charger 0-90A |
|
|
>>>back to top
|
|
4.
Seria invertoare STUDER XPC
|
|
Innovative Inverter/Charger Line - Innovative
inverter/charger line with a perfect, pure sine wave in a well-designed
casing, with CE conform electronics working very silent and reliable.
The cables necessary for a simple installation are already included. The
option of a remote control, an alarm output and an integrated charge
controller is a special feature of this product line. These inverters
can be used as standard stand alone inverters as well as in USB
installations. The possibility of a use in parallel extends this product
range from 1,3 to 3,5 KW.
|
|
|
| Product
Code |
Model |
Power (W) |
Voltage (V) |
Dimension (mm) |
Weight (Kg) |
Prot Class |
Remark |
| LPI00037 |
Studer XPC 1112 |
1100 |
12 |
124x215x410 |
11,7 |
IP20 |
with battery charger 0-40A |
| LPI00038 |
Studer XPC 1624 |
1600 |
24 |
124x215x410 |
12,6 |
IP20 |
with battery charger 0-40A |
| LPI00039 |
Studer XPC 1648 |
1600 |
48 |
124x215x410 |
12,6 |
IP20 |
with battery charger 0-20A |
|
|
>>>back to top
|
|
5.

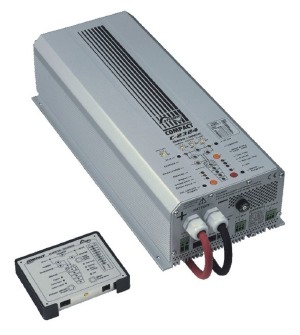

Seria de invertoare STUDER Compact
|
|
|
|
|
| Product
Code |
Model |
Power (W) |
Voltage (V) |
Dimension (mm) |
Weight (Kg) |
Prot Class |
Remark |
| LPI00040 |
C 1312 |
1300 |
12 |
480x215x124 |
16 |
IP20 |
with battery charger 0-55A |
| LPI00041 |
C 2324 |
2300 |
24 |
480x215x124 |
17,1 |
IP20 |
with battery charger 0-55A |
| LPI00042 |
C 3548 |
3500 |
48 |
480x215x124 |
29,4 |
IP20 |
with battery charger 0-50A |
| LPI00043 |
C 3548S |
3500 |
48 |
670x215x124 |
|
IP20 |
with battery charger 0-50A and solar
charge controller 20A/90V |
| LPI00044 |
C 1312S |
1300 |
12 |
480x215x124 |
|
IP20 |
with battery charger 0-55A and solar
charge controller 30A/45V |
| LPI00045 |
C 2324S |
2300 |
24 |
480x215x124 |
|
IP20 |
with battery charger 0-55A and solar
charge controller 30A/45V |
|
|
>>>back to top
|
|
|
|
|
|
|
|
