Solar photovoltaic panels



SOLARA AG - Germany

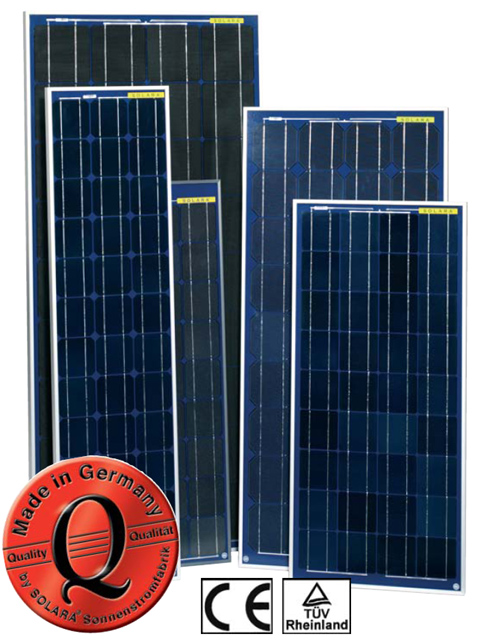

The SOLARA® modules are all “Made in Germany”. These high performance modules withstand the hardest environmental conditions such as hail, ice and high humidity. The modules are extremely reliable and have a 26 year performance guarantee. The front is made of tempered glass and for easy mounting every
module has a rigid hollow-profile aluminum frame that can be drilled.









Series S Series M Series K

  • LPS00292 -  12W

  • LPS00293 -  27W

  • LPS00294 -  55W

  • LPS00295 -  55W

  • LPS00298 -  85W

  • LPS00300 - 125W

  • LPS00304 -   12W

  • LPS00305 -   18W

  • LPS00306 -   23W

  • LPS00307 -   34W

  • LPS00308 -   45W

  • LPS00309 -   68W



  • LPS00302 -  55W

  • LPS00303 -  85W




Cod Produs LPS00292 LPS00293 LPS00294 LPS00302 LPS00295 LPS00298 LPS00300
Model SM 50 S SM 100 S SM 200 S SM 220 K SM 220 S /M55 SM 340 S SM 500 S
Energie produsa pe zi/vara 48 Wh/d 108 Wh/d 220 Wh/d 220 Wh/d 220 Wh/d 340 Wh/d 500 Wh/d
Putere maxima 12 W 27 W 55 W 55 W 55 W 85 W 125 W
Tensiune 12 V 12 V 12 V 12 V 12 V 12 V 12 V
Tensiune la putere max 18,4 V 17,4 V 17,6 V 17,6 V 17,6 V 18 V 17,5 V
Curent la put max 0,55 A 1,55 A 3,13 A 3,13 A 3,13 A 4,72 A 7,14 A
Tensiune in gol 22,4 V 21,8 V 21,3 V 21,3 V 21,3 V 21,9 V 21,7 V
Curent scurt circuit 0,63 A 1,75 A 3,4 A 3,4 A 3,4 A 5,15 A 8,0 A
Numar celule/panou 38 Buc. 36 Buc. 36 Buc. 36 Buc. 36 Buc. 36 Buc. 36 Buc.
Dimensiune celula 103x21 mm 103x51,5 mm 103x103 mm 103x103 mm 103x103 mm 125x125 mm 156x156 mm
Dimensiune panou 468x250x35 540x457x35 997x457x35 1040x450x5 1330x350x35 1237x557x35 1500x680x35
Greutate 1,3 kg/3,2 mm 3,0 kg/3,2 mm 5,9 kg/3,2 mm 4,6 kg/3,2 mm 5,4 kg/3,2 mm 7,9 kg/3,2 mm 12,1 kg/3,2 mm
Garantie 26 ani 26 ani 26 ani 26 ani 26 ani 26 ani 26 ani

  <<<back to top

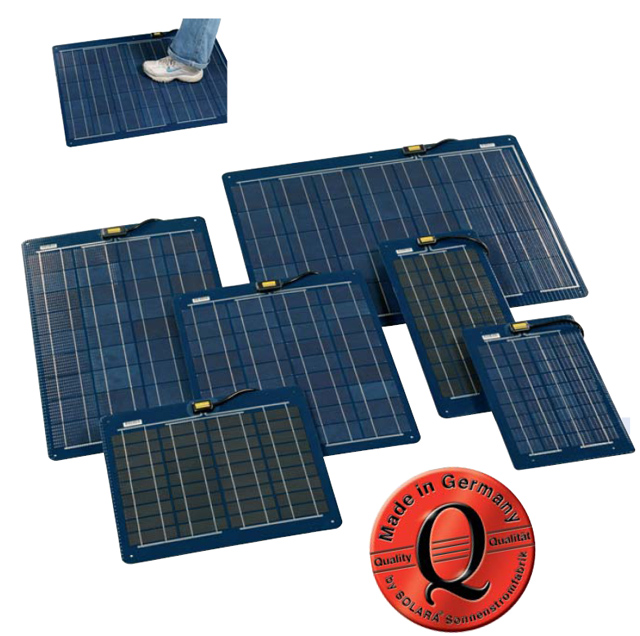

Tried and tested, this is the most popular marine solar module available. They are made of a high grade stainless steel backing. They are smaller, very thin, slightly flexible and very robust. If fixed to a solid surface they can also be walked on. This is due to the high resistant plastic front foil so there is no glass that can break. The high efficiency solar cells are very productive even under low light levels. For easy wiring all modules have 1.5m pre-mounted cable. As an option the modules edge can be protected with a black UV-resistant edge protector.



Cod Produs LPS00304 LPS00305 LPS00306 LPS00307 LPS00308 LPS00309
Model SM 40 M SM 60 M SM 80 M SM 120 M SM 160 M SM 225 M
Energie produsa pe zi/vara 48 Wh/d 72 Wh/d 92 Wh/d 136 Wh/d 180 Wh/d 272 Wh/d
Putere maxima 12 Wp 18 Wp 23 Wp 34 Wp 45 Wp 68 Wp
Voltaj 12 V 12 V 12 V 12 V 12 V 12 V
Tensiune la putere max 19 V 19 V 19 V 19 V 19 V 18,5 V
Tensiune in gol 22,6 V 22,6 V 22,6 V 22,6 V 22,6 V 22 V
Curent la putere max 0,63 A 0,94 A 1,21 A 1,78 A 2,36 A 3,67 A
Curent scurt circuit 0,7 A 1,1 A 1,3 A 1,9 A 2,5 A 3,8 A
Numar celule/panou 36 Stk./pcs. 36 Stk./pcs. 36 Stk./pcs. 36 Stk./pcs. 36 Stk./pcs. 35 Stk./pcs.
Dimensiune panou 445x267x2 620x250x2 440x460x2 590x460x2 756x460x2 800x645x2
Greutate 1,3 kg 1,65 kg 2,0 kg 3,1 kg 3,75 kg 5,4 kg

<<<back to top

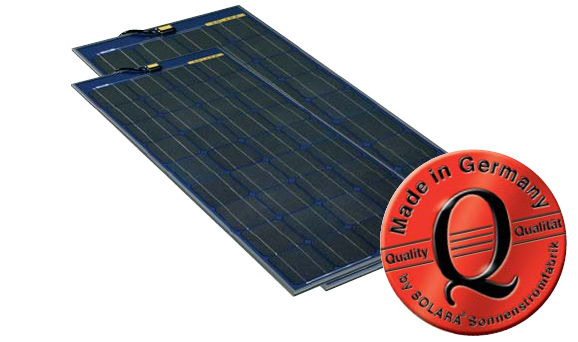

This module is perfect for RV’s and caravans. It can be very simply glued to any even surface. Due to the module being very thin it is nearly invisible, can be walked on and is virtually theft-proof.



Cod Produs LPS00302 LPS00303
Model SM220K SM340K
Performante 220 Wh/d 340 Wh/d
Putere 55 Wp 85 Wp
Greutate 4,6 kg 5,1 kg
Dimensiune 1040x455x7 1235x555x7

<<<back to top

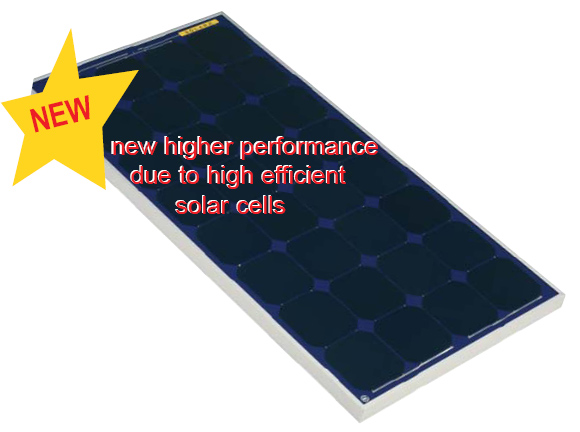

The SM400SP is ideal for a wide range of off-grid applications. The monocristalline solar cell combines higher voltage per cell and exceptional low-light performance to outstanding performance. 26 years performance warranty are another sign for highest quality.


Cod Produs LPS00303
Model SM400SP
Performante 400 Wh/d
Putere 100 Wp
Greutate 7,5 kg
Dimensiune 1087 x 557 x 35





<<<back to top
