Sisteme PowerPack XANTREX - DC/AC



Sistemele PowerPack produse de Xantrex Technologies Inc. sunt dispozitive unice in felul lor. Oriunde va aflati, pe plaja, in camping sau departe de sursa de energie electrica, veti putea utiliza in continuare toate echipamentele electrice pe care le doriti, daca veti utiliza un powerpack.

 Aplicatie sistem backup


1. Sistemul XPower Powerpack 175

Descriere - sursa portabila de tensiune

Ideal in excursii si camping fiind un produs unic din punct de vedere a facilitatilor care le inglobeaza.
XPower Powerpack 175 ofera maxim 175W la 220V sau current continu , oricand si oriunde. Modelul Powerpack 175 Plus include si un compressor de aer de 17 BAR (250 PSI).

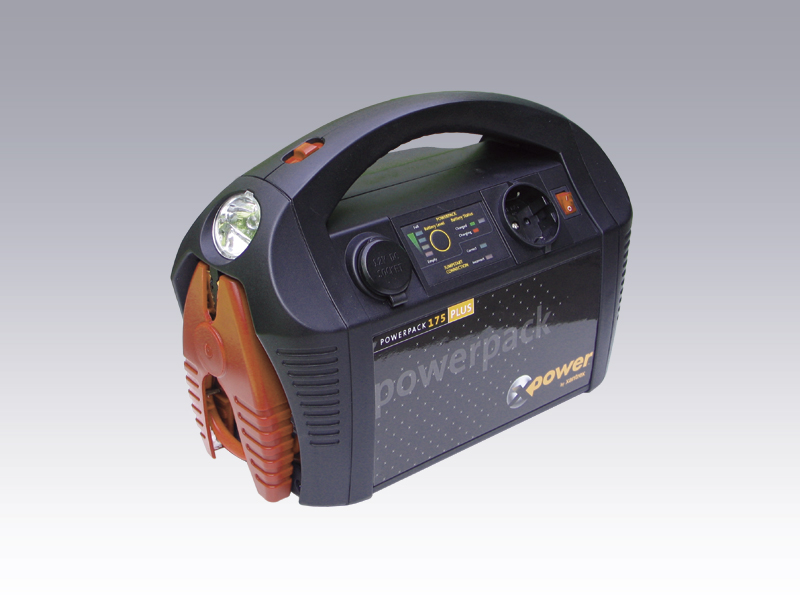

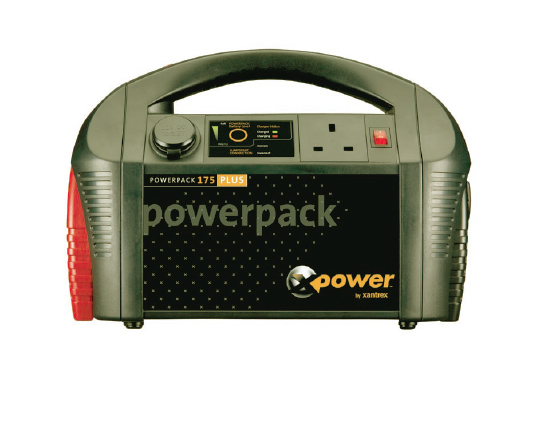

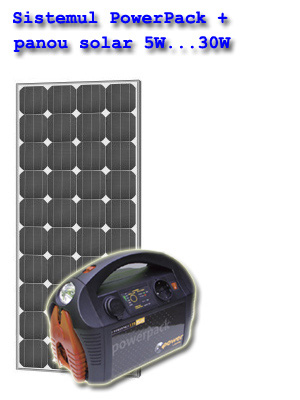

Sistem Powerpack 175 Plus

·         Iesire de 230-volt AC si 12-volt DC pentru electrocasnice

·         Invertor integrat de 175 Watt inverter avand si un accumulator de  12 amp-hour AGM integrat

·         Compresor de aer de 17 BAR (250 PSI)

·         Circuit intelligent de protectia la inversarea tensiunii

·         Lampa integrata de iluminat de urgenta

·         Cabluri de AC and DC charger cables pentru reincarcare in casa sau auto

·         Monitor pentru starea bateriei interne

·         Protectie la descarcare acidentala a bateriei

·         Alarma acustica pentru supra incalzire sau supratensiune

·         Protectie la supraincalzire sau supratensiune

·         Alimentare pentru camcorders, video games, stereos, 13” TV/VCR, TV/DVD combos, computers, laptops, clock radios, and small power tools

  Invertor PowerPack la 175W

Cod Produs Model Putere (W) Tensiune Nominala
LPI00167 Powerpack 175 plus 175 12 V
Electrical Specifications
230 volt AC section
AC output power (max continuous)     140 W
AC output power (5 min)     175 W
AC surge power (peak)     280 W
AC output voltage (nominal)     230 V
AC output frequency     50Hz +/- 2 Hz
AC output waveform     Modified sine wave
Inverter no-load current     <0.20 amps
Warranty     2 years
Regulatory Approvals     CE
12 volt DC section
Internal battery type     Sealed lead acid, AGM
Internal battery capacity     12 amp-hours, 120 CCA
Internal battery voltage (nominal)     12 VDC (nominal)
DC power socket (circuit breaker)     12 amps (automatic reset)
Charging System
AC charger bulk charging current (max)     500 mA (maximum)
Peak charging voltage (nominal)     14.2 V (nominal)
Charge restart voltage (nominal)     12.9 V (nominal)
Float charge current (nominal)     1 mA (nominal)
Charger input socket current     2.5 amps (maximum)
Charging Time
From AC outlet     max. 24 hours*
From DC outlet     max. 2.5 hours*
*Maximum charging time occurs when battery is completely discharged.
General Specifications
Air compressor     17 Bar (250 PSI)
Jump-start cables     1 meter (39"), 8 AWG
Built-in fluorescent lamp     5 watt (replaceable)
Operating temperature     O°C - 40°C (32°F - 104°F)
Storage temperature     O°C - 30°C (32°F - 86°F)
AC receptacle     Schuko, UK and AUS/NZ
Inverter low battery alarm (nominal)     11.0 volts (nominal)
Inverter low battery shutdown (nominal)     10.5 volts (nominal)
Dimensions (H x W x D)     22.1 x 15.5 x 31.5 cm
Weight     11.8 lbs (5.4 kg)
Part number     852-1831 (Schuko)
Regulatory Approvals     CE-mark

 >>>back to top




2. Invertoare XPower Powerpack 300



Descriere - sursa portabila de tensiune

Ideal in excursii si camping fiind un produs unic din punct de vedere a facilitatilor care le inglobeaza.
XPower Powerpack 300 ofera maxim 300W la 220V sau current continu , oricand si oriunde. Modelul Powerpack 300 Plus include si un compressor de aer de 17 BAR (250 PSI).

XPower Powerpack 300 si 300 Plus

·         Iesire de 230-volt AC si 12-volt DC pentru electrocasnice

·         Invertor integrat de 300 watt inverter avand si un accumulator de  20 amp-hour AGM integrat

·         Compresor de aer de 17 BAR (250 PSI)  numai in modelul 300 Plus

·         Circuit intelligent de protectia la inversarea tensiunii

·         Lampa integrata de iluminat de urgenta

·         Cabluri de AC and DC charger cables pentru reincarcare in casa sau auto

·         Monitor pentru starea bateriei interne

·         Protectie la descarcare acidentala a bateriei

·         Alarma acustica pentru supra incalzire sau supratensiune

·         Protectie la supraincalzire sau supratensiune

·         Alimentare pentru camcorders, video games, stereos, 13” TV/VCR, TV/DVD combos, computers, laptops, clock radios, and small power tools



  Invertor PowerPack la 300W
Cod Produs Model Putere (W) Tensiune Nominala
LPI00109 851-1831 Powerpack 300 12
LPI00110 851-1832 Powerpack 300 12
Electrical Specifications
230 volt AC section
AC output power (max continuous)   250 watts
AC output power (5 min)     300 watts
AC surge power (peak)     500 watts
AC output voltage (nominal)     230 volts
AC output frequency     50 Hz +/- 4 Hz
AC output waveform     Modified sine wave
Inverter no-load current     <0.20 amps
Warranty     2 years
Regulatory Approvals     CE
12 volt DC section
Internal battery type     Sealed lead acid, AGM
Internal battery capacity     20 amp-hours, 200 CCA
Internal battery voltage (nominal)   12 VDC
DC power socket (circuit breaker)   12 amps (automatic reset)
Cold cranking amps     200 amps
Charging System
AC charger bulk charging current (max)   500 mA
Peak charging voltage (nominal)   14.5 volts
Charge restart voltage (nominal)   12.9 volts
Float charge current (nominal)   1 mA
Charging Time
From AC outlet     max. 40 hours*
From DC outlet     max. 4 hours*
*Maximum charging time occurs when battery is completely discharged.
General Specifications
Air compressor     None
Jump-start cables     1 meter (39"), 8 AWG
Built-in fluorescent lamp     Two, 4 watt bulbs (replaceable)
Operating temperature     O°C - 40°C (32°F - 104°F)
Storage temperature     O°C - 30°C (32°F - 86°F)
AC receptacle     Schuko, UK and AUS/NZ
Inverter low battery alarm (nominal)   10.7 volts
Inverter low battery shutdown (nominal)   10.0 volts
Dimensions (H x W x D)     30.0 x 18.2 x 31.8 cm
Weight     8.2 kg (18.0 lb)
Part number     852-1831 (Schuko)
Regulatory Approvals     e-mark



 >>>back to top



2. Sistemul XPower Powerpack 400 plus



Descriere - sursa portabila de tensiune

Ideal in excursii si camping fiind un produs unic din punct de vedere a facilitatilor care le inglobeaza.
XPower Powerpack 400 ofera maxim 400W la 220V sau current continu , oricand si oriunde. Modelul Powerpack 400 Plus include si un compressor de aer de 17 BAR (250 PSI).

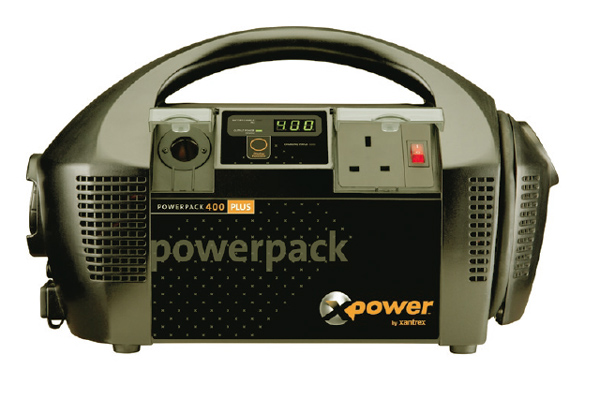

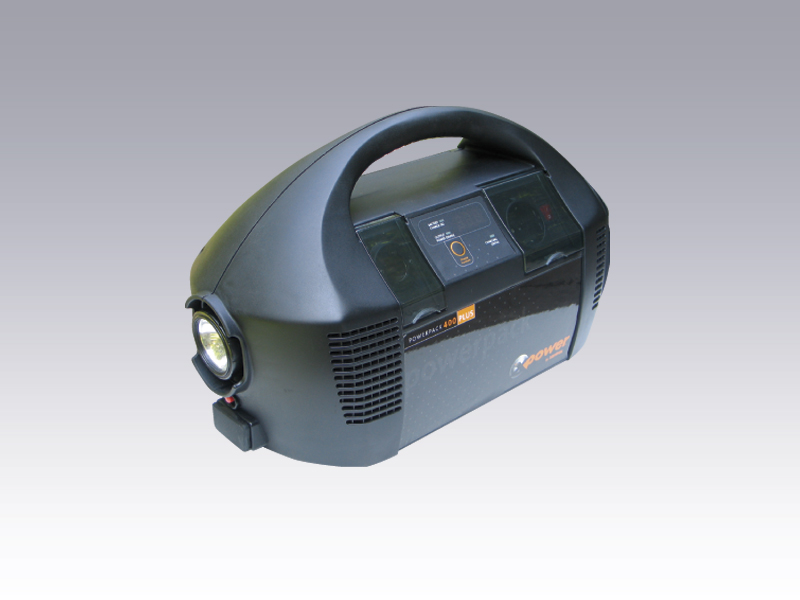

XPower Powerpack 400 Plus

·         Iesire de 230-volt AC si 12-volt DC pentru electrocasnice

·         Invertor integrat de 400 watt inverter avand si un accumulator de  20 amp-hour AGM integrat

·         Compresor de aer de 17 BAR (250 PSI)

·         Circuit intelligent de protectia la inversarea tensiunii

·         Lampa integrata de iluminat de urgenta

·         Cabluri de AC and DC charger cables pentru reincarcare in casa sau auto

·         Monitor pentru starea bateriei interne

·         Protectie la descarcare acidentala a bateriei

·         Alarma acustica pentru supra incalzire sau supratensiune

·         Protectie la supraincalzire sau supratensiune

·         Alimentare pentru camcorders, video games, stereos, 13” TV/VCR, TV/DVD combos, computers, laptops, clock radios, and small power tools



 Invertor PowerPack la 400W

Cod Produs Model Putere (W) Tensiune Nominala
LPI00168  Powerpack 400 400 12 V
Electrical Specifications
230 volt AC section
AC output power (max continuous)     320 W
AC output power (5 min)     400 W
AC surge power (peak)     640 W
AC output voltage (nominal)     230 V
AC output frequency     50 Hz +/-4 Hz
AC output waveform     Modified sine wave
Inverter no-load current     <0.20 amps
Warranty     2 years
Regulatory Approvals     CE
12 volt DC section
Internal battery type     Sealed lead acid, AGM
Internal battery capacity     20 amp-hours, 200 CCA
Internal battery voltage (nominal)     12 VDC (nominal)
DC power socket (circuit breaker)     12 amps (automatic reset)

Charging System
AC charger bulk charging current (max)     500 mA (maximum)
Peak charging voltage (nominal)     14.2 V (nominal)
Charge restart voltage (nominal)     12.9 V (nominal)
Float charge current (nominal)     1 mA (nominal)
Charger input socket current     2.5 amps (maximum)
Charging Time
From AC outlet     max. 40 hours*
From DC outlet     max. 4 hours*
*Maximum charging time occurs when battery is completely discharged.
General Specifications
Air compressor     17 Bar (250 PSI)
Jump-start cables     61 cm (24”), 6 AWG
Built-in fluorescent lamp     5 watt (replaceable)
Operating temperature     O°C - 40°C (32°F - 104°F)
Storage temperature     O°C - 30°C (32°F - 86°F)
AC receptacle     Schuko, UK and AUS/NZ
Inverter low battery alarm (nominal)     11.0 volts (nominal)
Inverter low battery shutdown (nominal)     10.5 volts (nominal)
Dimensions (H x W x D)     24.2 x 20.6 x 40.2 cm
Weight     20 lb (9.0 kg)
Part number     852-1841 (Schuko)
Regulatory Approvals     CE-mark



>>>back to top
